Heat & Glo • SLR • 2143-900 Rev. B • 7/08 55

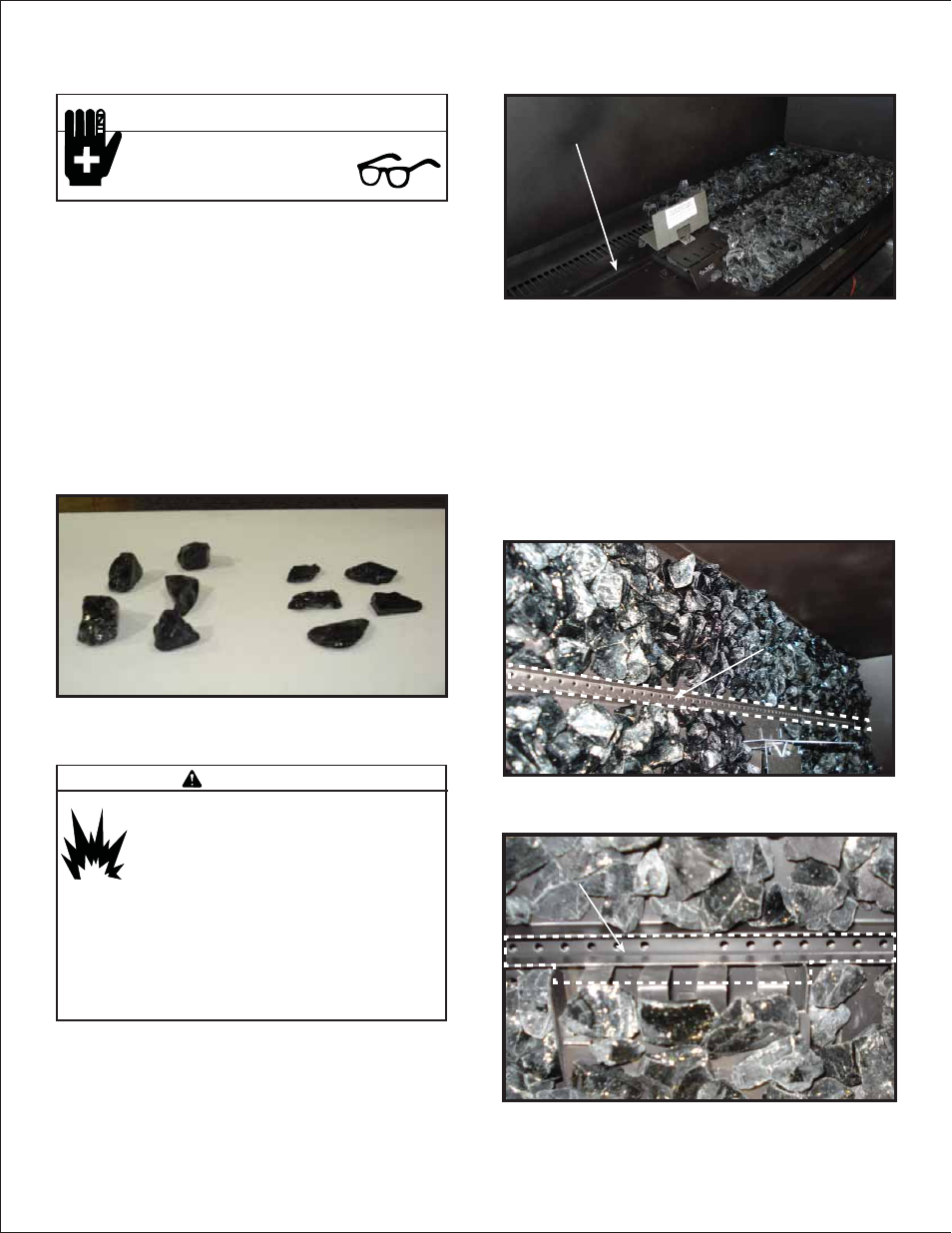

E. Rock Media Instructions
CAUTION
Sharp Edges
• Wear protective gloves and safety
glasses during installation.
Cleaning the Rock
During shipment of the Rock Media, dust and debris can
accumulate. It is recommended that the Rock Media be
rinsed thoroughly with water to remove dust and small glass
particles. An easy method to clean the Rock Media is to
dump the rocks into a bucket and rinse thoroughly with a
garden hose. Allow the rocks to dry before installing them
into the fi replace.
INSTALLATION
1. Choose 7 - 10 fl at, quarter-sized, pieces of Rock Media
and set them aside. These will be used later to conceal
the pilot cover. Reference Figure 14.1 for choosing fl at
pieces of glass.
Figure 14.2. Place Rock Media
Figure 14.1. Selecting Flat Rocks for Pilot Cover.
WARNING! Risk of Fire. DO NOT place rock media di-
rectly in front of the pilot assembly or between the burner
tracks over the burner ports..
3. Figure 14.4 shows an outline of the area in front of the
pilot assembly. No rock media may be placed in the
outlined area. Continue to place an even amount of
Rock Media over the entire base pan. DO NOT install
Rock Media in between the tracks over the entire length
of the burner.
NO NO YES YES
2. Place an even layer of decorative rock around the base
pan as shown in Figure 14.2. Do not place rocks in the
slot over the burner ports. See Figures 14.2 and 14.3.
This may cause lighting issues, undesirable burner
fl ame, or delayed ignition.
BURNER PORT SLOT MUST BE FREE OF ROCKS
Figure 14.3. Burner Tracks
DO NOT PLACE ROCK MEDIA DO NOT PLACE ROCK MEDIA
BETWEEN BURNER TRACKS
BETWEEN BURNER TRACKS
Figure 14.4. Pilot Bracket Detail
DO NOT PLACE ROCK MEDIA DO NOT PLACE ROCK MEDIA
IN FRONT OF PILOT ASSEMBLY
IN FRONT OF PILOT ASSEMBLY
WARNING
Delayed Ignition Risk
• Place stones according to instructions.
• Do NOT place stones in area in front of pilot or
between burner tracks.
• Do NOT place stones in a position that they may
fall into area in front of pilot.
• Do NOT use any media other than the stones
supplied with this fi replace.
• Do NOT use more than one 10 lb. bag of rock
media per fi replace.
Fireplace will not function properly.
Delayed ignition may occur.
