ELBOW HEAT SHIELD SHOWN
IN SHIPPING POSITION
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
A. Top Vent
9 9
Appliance Preparation

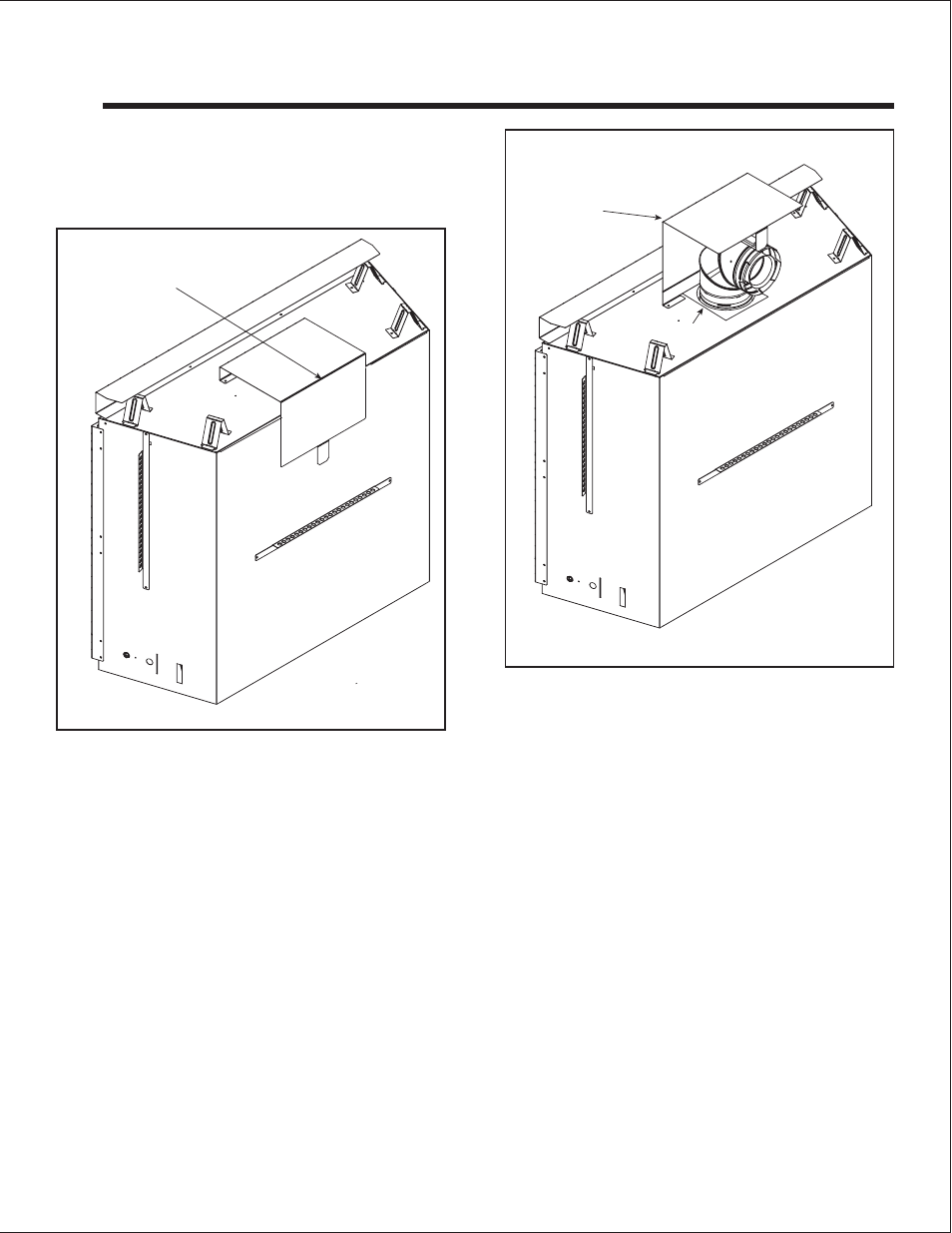

Figure 9.1 Elbow Shield Shown as Shipped
ELBOW HEAT SHIELD
SHOWN AS INSTALLED
PIPE GASKET
Figure 9.2 Elbow Shield Shown Installed
If venting with a 90 degree elbow directly off of the top of
the appliance, the elbow heatshield must be repositioned
as shown in Figure 9.2.
If venting vertically or using a straight seciton of vertical
pipe, remove the elbow heat shield and discard by remov-
ing the two 1/4 in. screws that secure the elbow heat shield
to the top of the fi replace.
For all venting applications, ensure that the pipe gasket is
in place before attaching any pipe section. This gasket is
shipped in place around the starting collar. See Figure 9.2.
