A. Typical Appliance System
NOTICE: Illustrations and photos refl ect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual

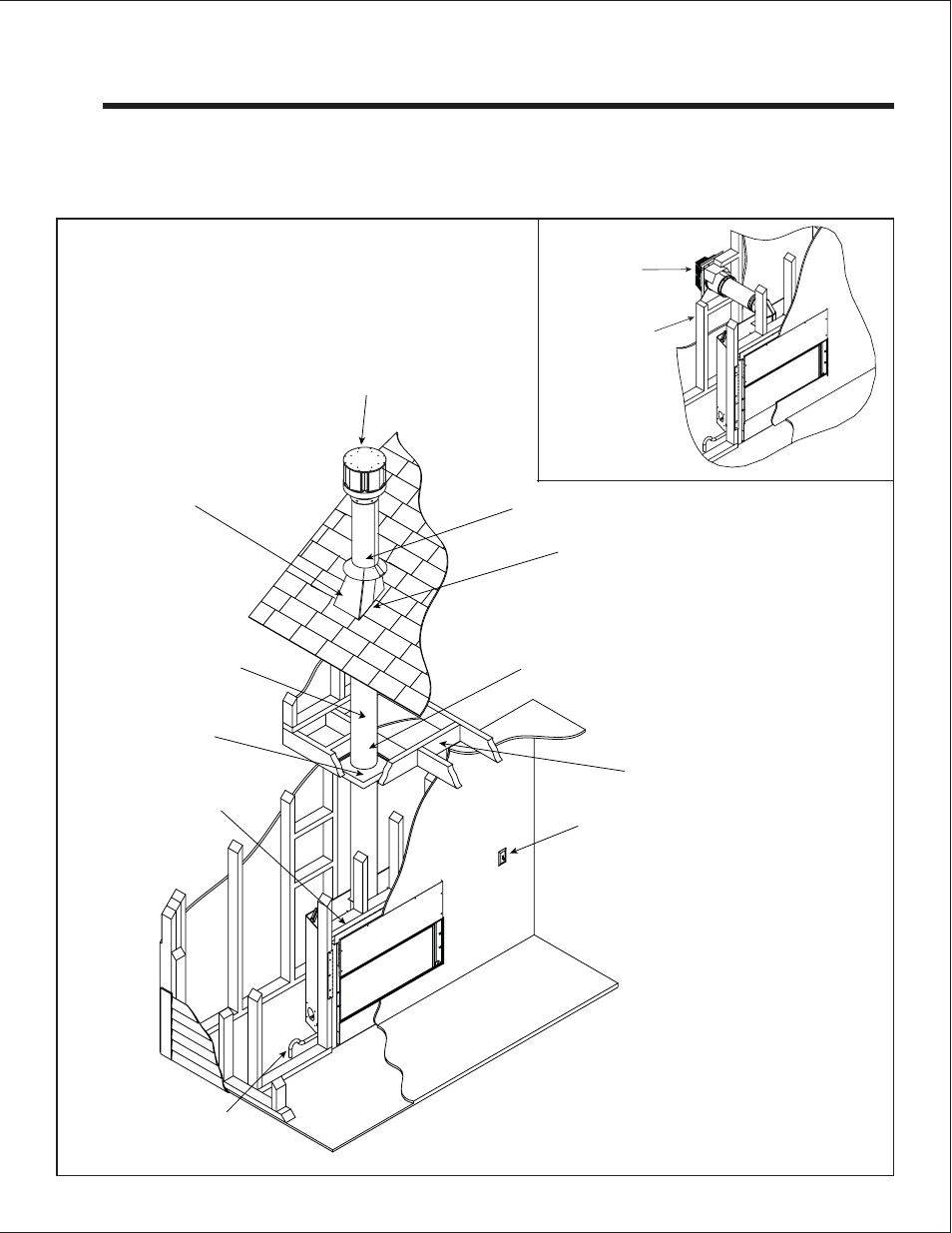

Figure 4.1 Typical System
4 4
Getting Started
Installer Guide
HORIZONTAL
TERMINATION CAP
(SECTION 7)
WALL PENETRATION
FRAMING
(SECTION 8B)
VERTICAL TERMINATION CAP
(SECTION 10)
NON-COMBUSTIBLE ROOF FLASHING
MAINTAINS MINIMUM CLEARANCE
AROUND PIPE
(SECTION 10) STORM COLLAR
(SECTION 10)
VENT PIPE
(SECTIONS 7&8)
CEILING FIRESTOP ON
FLOOR OF ATTIC
(SECTION 8.C)
FRAMING/HEADER
(SECTION 5)
GAS LINE
(SECTION 11)
WALL SWITCH
FRAMING HEADED
OFF IN CEILING
JOISTS (SECTION 8.C)
ATTIC INSULATION SHIELD (NOT SHOWN)
MUST BE USED HERE TO KEEP INSULA-
TION AWAY FROM VENT PIPE IF ATTIC IS
INSULATED. (SECTION 8.D)
VENT PIPE PENETRATES ROOF
PREFERABLY WITHOUT AFFECTING
ROOF RAFTERS (SECTION 8.C)
