Heat & Glo • SLR • 2143-900 Rev. B • 7/08 23

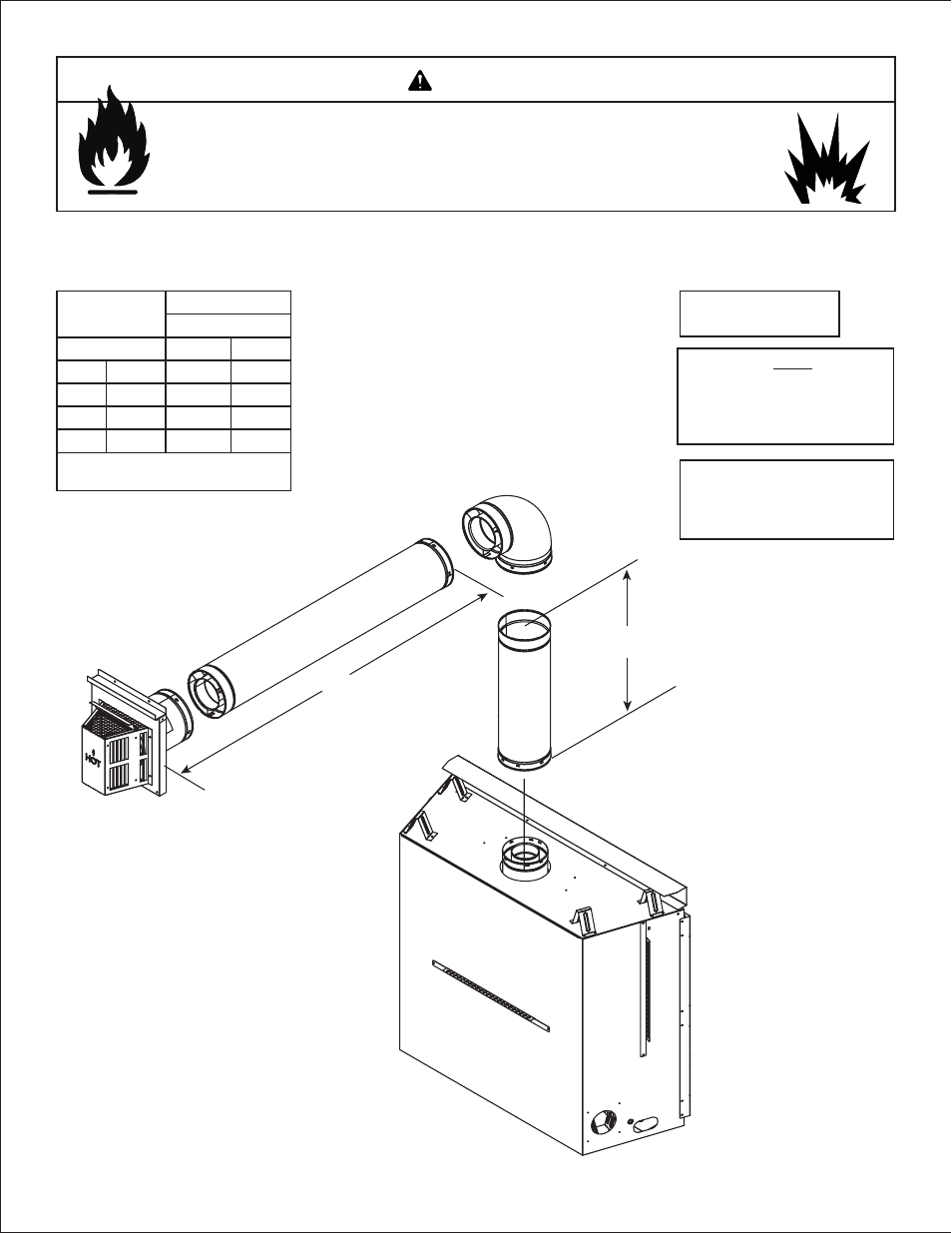

Figure 7.4
Top Vent - Horizontal Termination
Venting with 1 elbow
H
1
V
1
V Minimum
H
1
Maximum
SLR
90 Elbow 1-1/2 ft. 610 mm
1 ft. 305 mm 3 ft. 914 mm
2 ft. 610 mm 5 ft. 1.5 m
3 ft. 914 mm 7 ft. 2.1 m
4 ft. 1.2 m 14 ft. 4.3 m
H MAX. =14 ft. (4.3 m)
V + H MAX. = 40 ft. (12.2 m)
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between ceiling fi restops.
• ALWAYS maintain specifi ed clearances around venting and fi restop systems.
• Install wall shield and ceiling fi restops as specifi ed.
Failure to keep insulation or other material away from vent pipe may cause fi re.
WARNING
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when using
fl ex vent except when using the
simple up and out installation
(see Figure 7.3).
Note: The SLP-HRC-SS and
SLP-HRC-ZC-SS termination
caps are not approved for use
with propane (LP) fuel.
