STEP 5 - MOUNT THE OVEN
1. Slide the oven completely into the cabinet until the back surface of the front
frame touches the front wall of the cabinet. Center the oven within the cabinet
cutout.
NOTE: Push against seal area of the oven front frame when pushing the oven
into the cabinet. Do not push against the outside edges.
a
b
a
Mounting Frame
b
Mounting Frame Hole

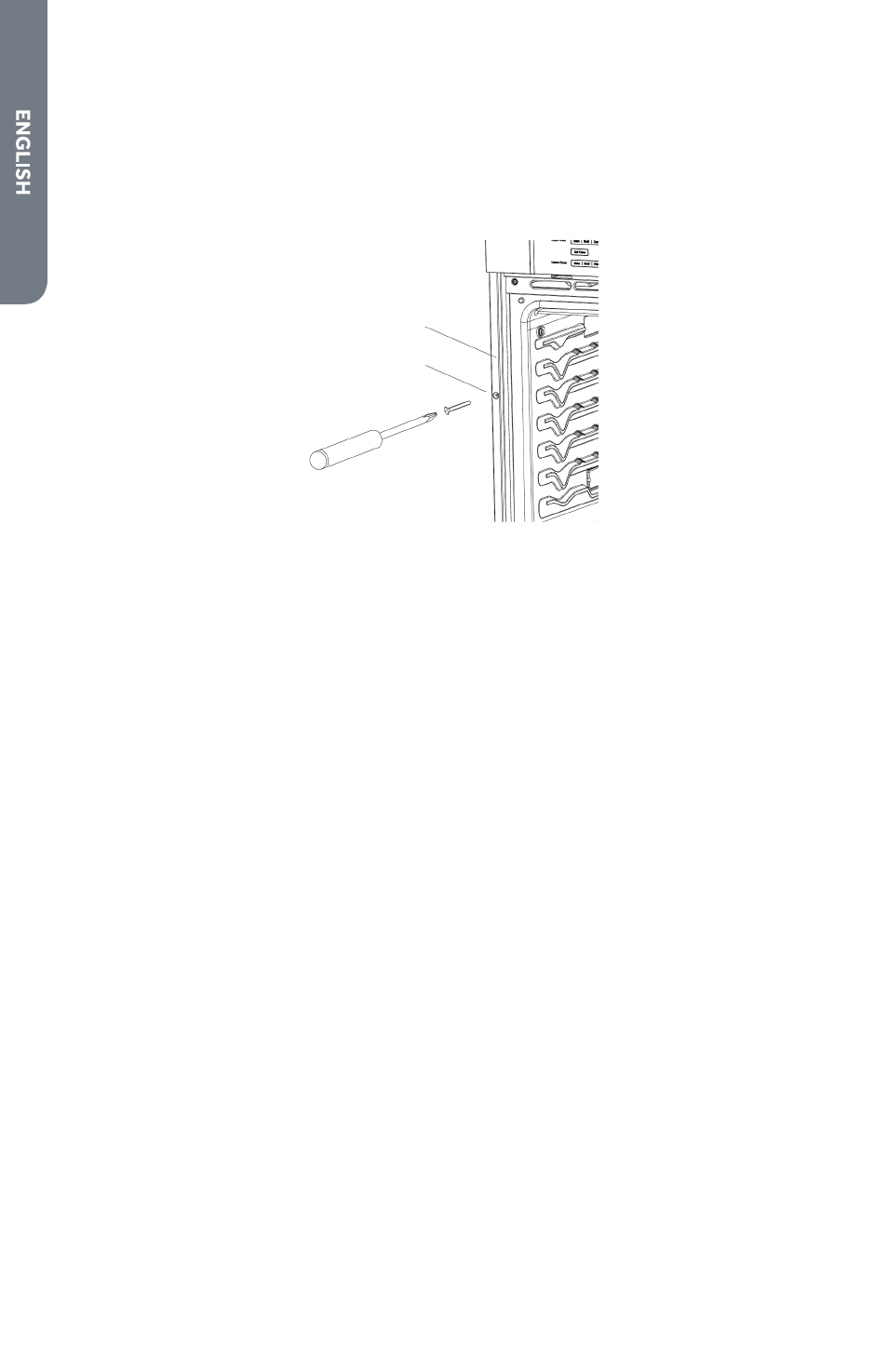

2. There are two holes, one on each side of the front frame that surrounds the oven
cavity. Drill 1/8" (3.18 mm) pilot holes through the holes, and into the front wall of
the cabinet.
NOTE: The double oven has four mounting holes, two on each side.
3. Insert the # 8–14 x 1" screws (provided) through the pilot holes to securely
fasten the oven to the cabinet. Do not overtighten screws.
4. Replace the oven racks.
5. Reconnect power to the oven.
STEP 6 - REPLACE THE DOOR
IMPORTANT: The oven door is heavy and fragile, and the door front is glass. To avoid
oven door glass breakage, use both hands, and grasp only the sides of the oven door
to remove.
1. Verify that the door hinge latches are forward, and then insert the oven door
hinges into the openings.
2. Lower the oven door to engage the hinges.
3. Press the hinge latches down to lock.
