6

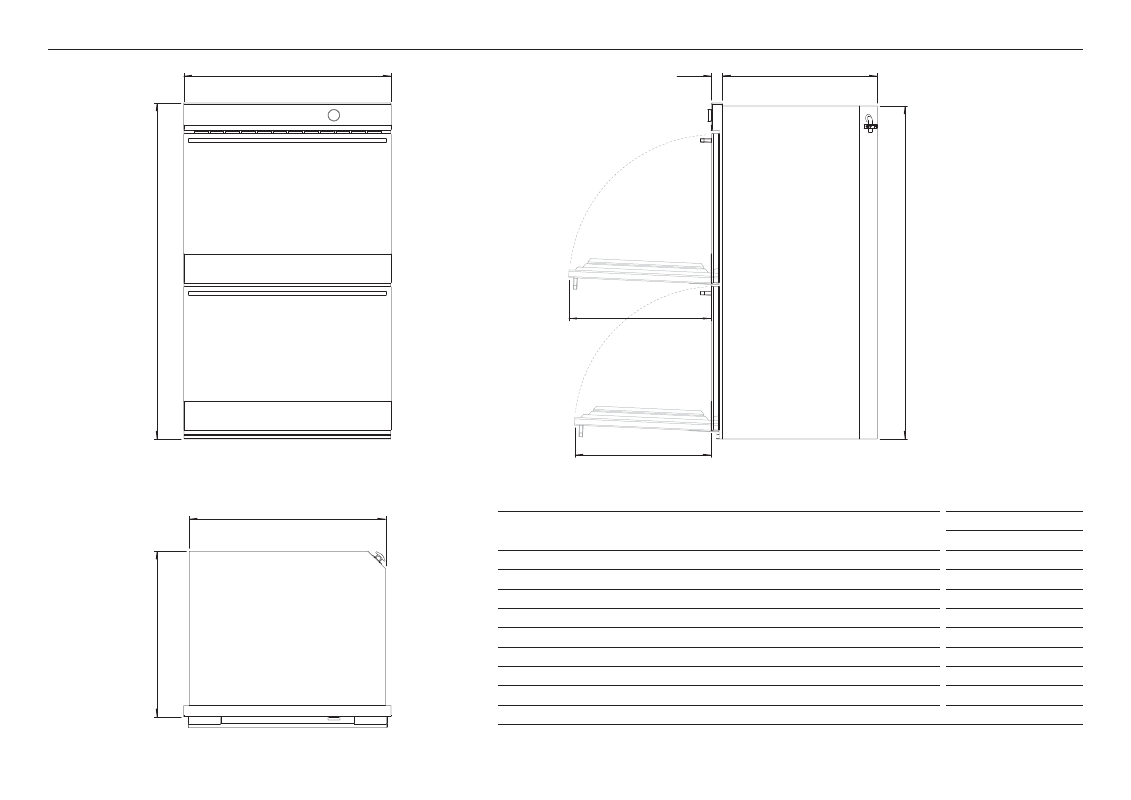

PRODUCT DIMENSIONS — DOUBLE OVENS
PRODUCT DIMENSIONS
OB30D
INCHES MM
A Overall height of product 48 1/2 1232
B Overall width of product 29 15/16 760
C Overall depth of product (excl. handle and dials) 23 15/16 610
D Depth of oven front and control panel (excl. handle and dials) 1 1/2 40
E Depth of chassis (does not include oven front) 22 3/8 569
F Height of chassis 47 15/16 1218
G Depth of upper door (open) (measured from front of door) 21 5/8 550
H Depth of lower door (open) (measured from front of door) 20 7/8 530
I Overall width of chassis 28 5/16 720
Note: If flush installing, you need to replace the lower trim with the supplied long trim at the base of the
oven, and the depth of the control panel
G with the fitted spacer is larger than conventional ovens. Ensure
you have created a 42mm recess in cabinetry.
PLAN
PROFILE FRONT
G
h
B
A
C
F
E D
i
