5

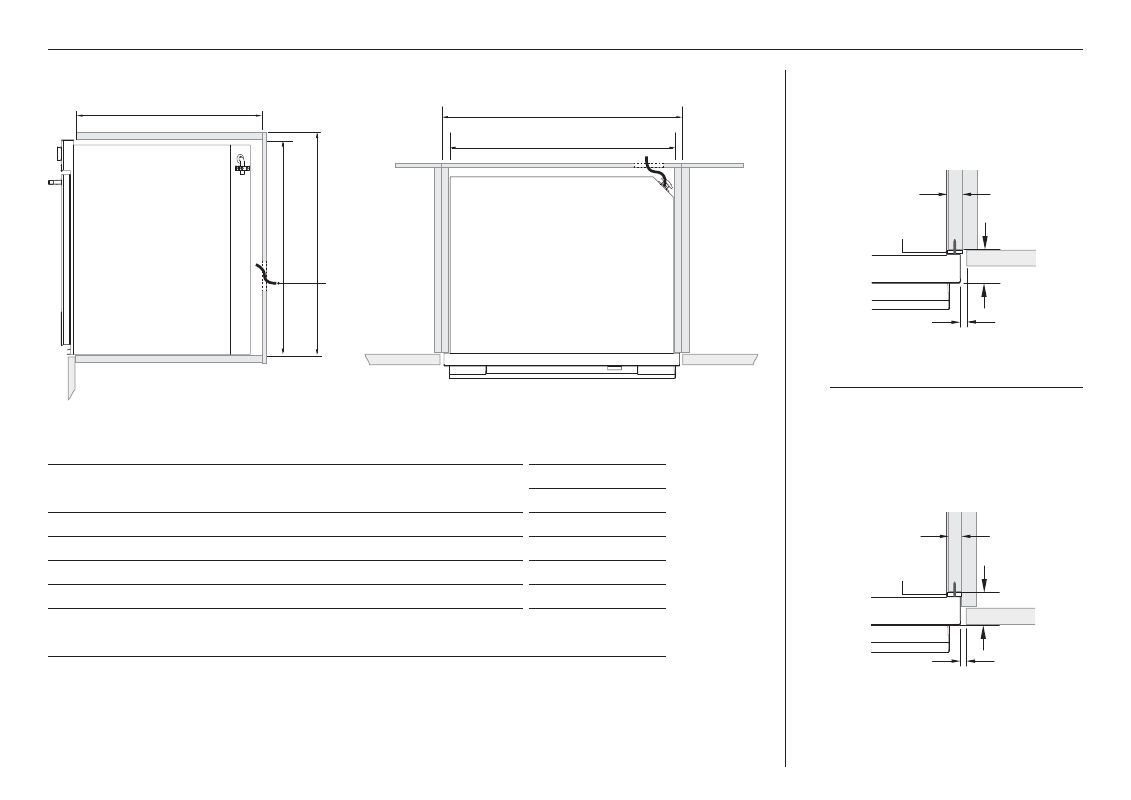

CABINETRY DIMENSIONS — SINGLE OVENS
PLAN PROFILE
e b
a
c d
Electrical
Supply
CABINETRY DIMENSIONS
OB30S
INCHES MM
A Minimum inside width of cavity 28 1/2 724
B Overall width of cabinetry 30 1/8 764
C Minimum inside height of cavity 26 13/16 681
D Overall height of cabinetry 27 3/8 693
E Minimum inside depth of cavity
z Proud install
z
Flush install
22 5/8
24 3/16
575
614
Notes:
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
Ensure the cavity is completely sealed with no gaps. This is to ensure the oven cooling system functions correctly.
PROUD INSTALL
FLUSH INSTALL
5/8 – 13/16"
(16-20mm)
1 – 5/8"
(42mm)
min 1/16"
(2mm)
spacer
1 – 5/8"
(42mm)
5/8 – 13/16"
(16-20mm)
min 1/16"
(2mm)
spacer
