52 53
N
ormal

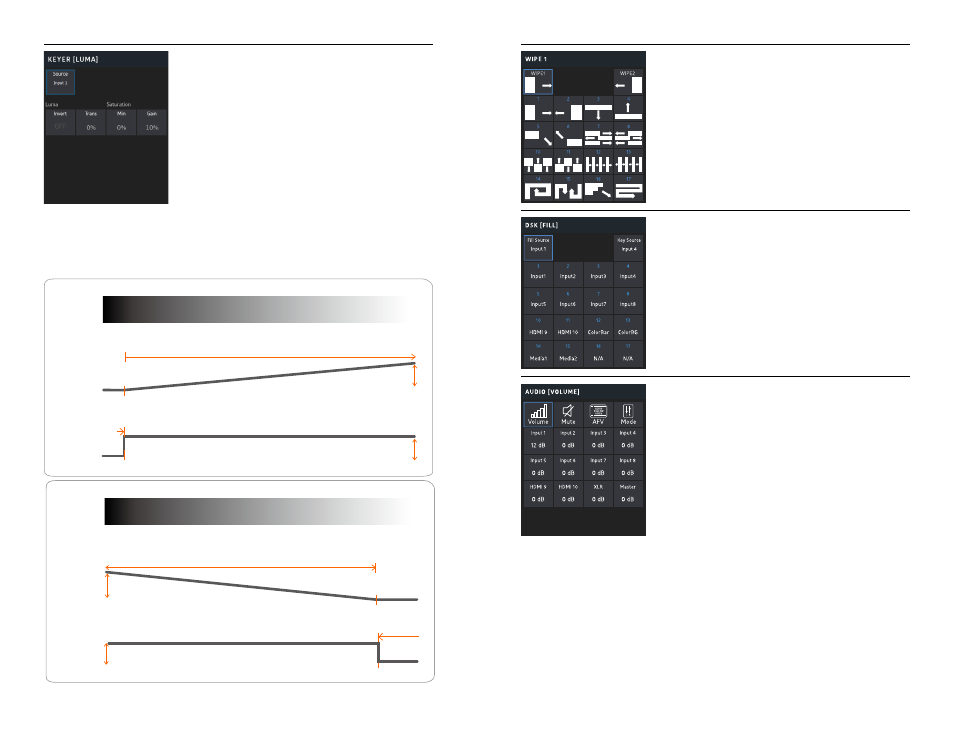

● LUMA Key Mode
In
verted
100%
100%
16(64)
16(64)
0%
0%
235(940)
235(940)
Opaque
Opaque
Opaque
Opaque
Minimum
Transparent
Transparent
Transparent
Transparent
Minimum
Minimum
Minimum
Gain 100% = No semitransparent region
Gain 0%= Maximum semitransparent region
Gain 0%= Maximum semitransparent region
Gain 100%= No semitransparent region
● KEYER MENU [Luma]
[Source]
Go to LUMA source selection menu
(PIP1, PIP2 also selectable as LUMA source)
[LUMA Invert, Trans,Saturation Min/Gain]
Inv : Set invert off/on
Transparency: Set transparency of the foreground at its minimum
Saturation Min: Set range of opacity of the foreground
Saturation Gain: Set area of translucency of the foreground
(100%: only black turns transparent, 0%: translucent maximum area)
* Use jog, +, -, or touch-screen to change values
● Wipe Menu
* Select WIPE type used in WIPE1, WIPE2
* To select, use:
1. AUX button
2. Touch-screen
3. Rotate jog button to select and select by pressing
● DSK Menu
[Fill Source] Select DSK Fill source
[Key Source] Select DSK Key source
* To select, use:
1. Touch-screen
2. Rotate jog button to select and select by pressing
● Audio Menu
[Volume]
Control volume of 10 x input video sources, external audio and outgoing PGM
audio (control range is from -90dB to +12dB)
[Mute]
Select to mute the audio volume
1. On: Audio muted
2. Off: Audio unmuted. Volume levels set to user’s setting
[Audio Follow Video]
* On : Audio on only when input source is selected as PGM
* Off : Volume level set to user’s setting.
If MUTE is ON then no audio will be outgoing.
[Audio Mode]
* L|L : Use only left audio channel of selected sources.
* L|R : Use left and right audio channel of selected sources seperately.
* R|R : Use only right audio channel of selected sources.
