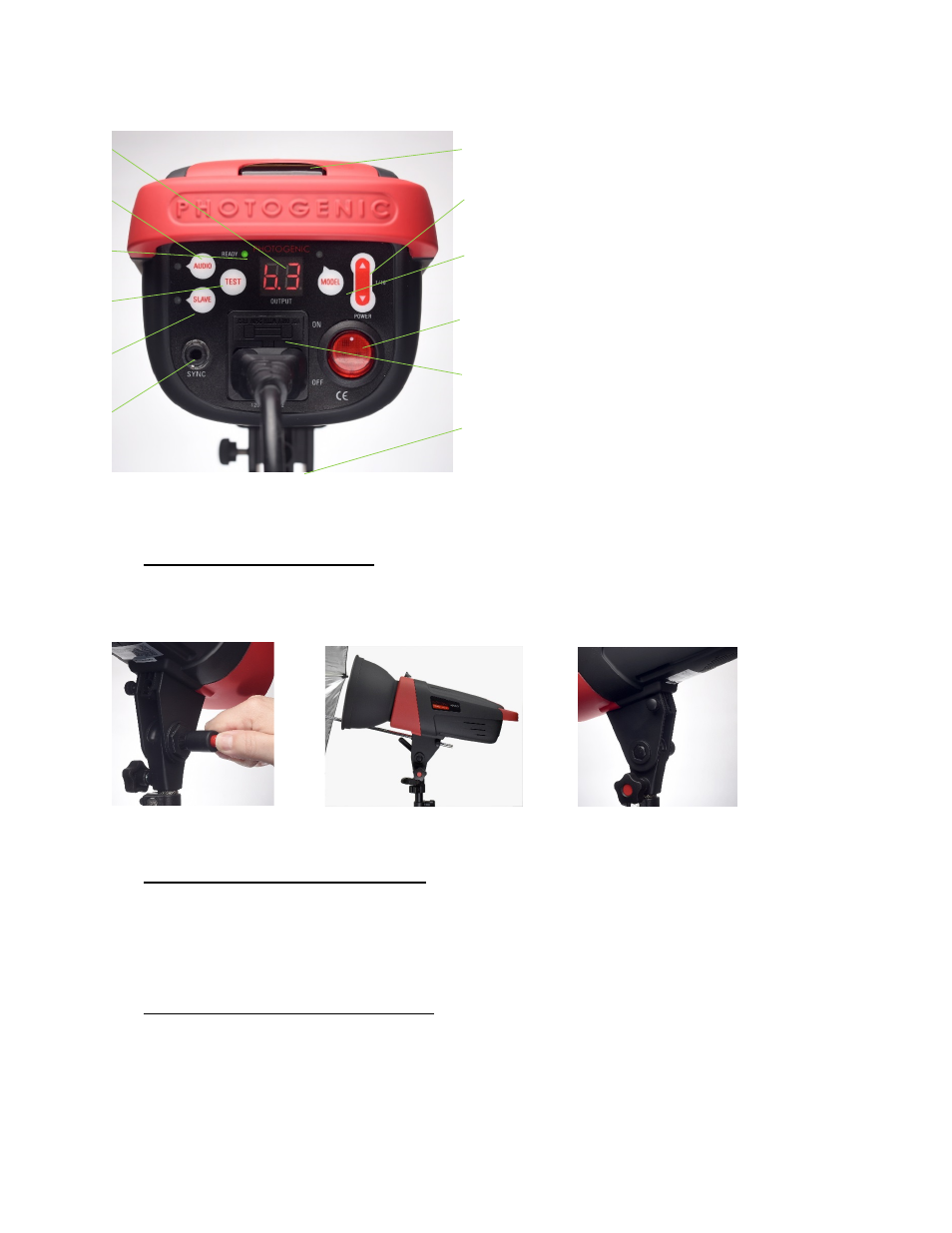

1.3 Control Panel (Fig.5)
2.0 Power Supply Connection
Use only the power cord supplied to connect to AC power supply before plugging the power cord into the
wall socket, make certain that the power switch is set to the OFF position.
3.0 Light Holder with Umbrella Hole
a. An umbrella with a handle diameter of 8-10mm can be firmly secured in the umbrella holder (Fig.6).
Do not over tighten the screw of the umbrella holder to avoid deforming the shaft of the umbrella.
b. When the standard reflector is used, fit the umbrella in the hole of the reflector (Fig.7).
c. The handle can be pulled and turned to reposition it. (Fig.8).
4.0 Operation Instructions (Settings)
a. Switch the unit ON and set the AUDIO B and SLAVE E (Fig. 5) switches as required.
b. Set the Flash Power and Modeling Light Power controls to the required level.
c. When the unit has charged to the required level, the LED ‘Ready’ indicator
C (Fig.5) will turn
green.
A. LED Display
B. AUDIO Ready ON/OFF Control
C. Ready Light LED
D. TEST Button
E. SLAVE ON/OFF Control
F. Sync Cord Input
G. SLAVE (Photocell)
H. Flash Power Control
I.
MODEL Lamp Power Control
J. Main Power Switch
K. Power Cable Input/Fuse Holder & Spare Fuse
L. Umbrella Holder
Figure 6 Figure 7 Figure 8
Figure 5
A
B
C
D
E
F
G
H
I
J
K
L
