9

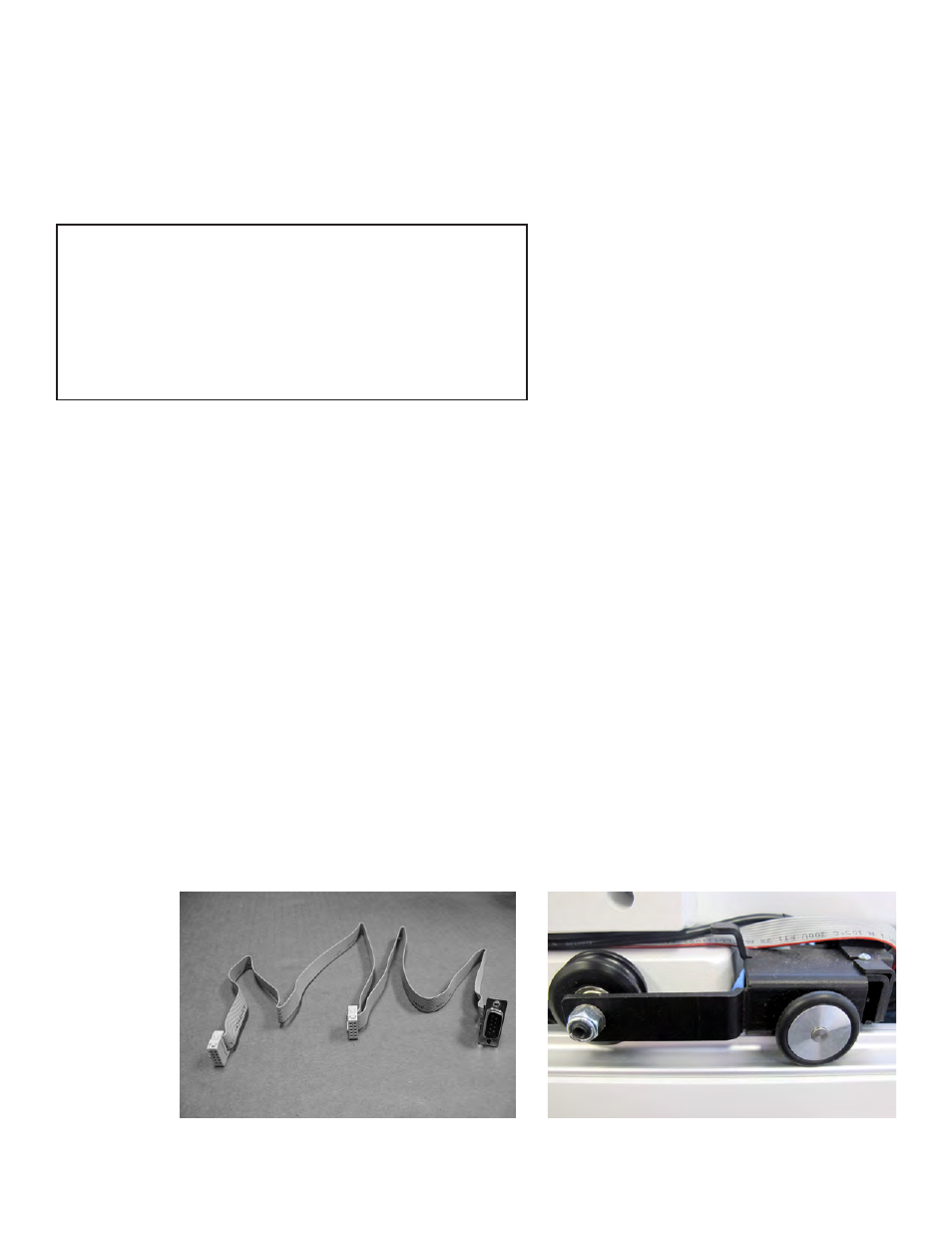

Figure 3 Figure 2
C
B
A
Stitch Regulator (Y-Motion)
NOTE: Connector A is a serial port connector and connects at
position 32 as shown in (Rear Diagram C, #32 page 7). Con-
nector B connects to the machine stitch regulator assembly
(Y-Motion) shown in (Back-Side Diagram B, #14 page 7), as
well as (Figure 3). If these two connections have come loose in
shipping, reconnect them before proceeding to step 3.
3.
Place the machine on the carriage, with the front of the machine
toward the front of the table and all wheels on the carriage rails.
4.
Plug final ribbon cable Connector C into the carriage stitch
regulator assembly (Figure 1, page 8).
