7
© American Time
Wireless Audio Generator
Installation Manual
Operation
Application
Examples
Operation
Intr

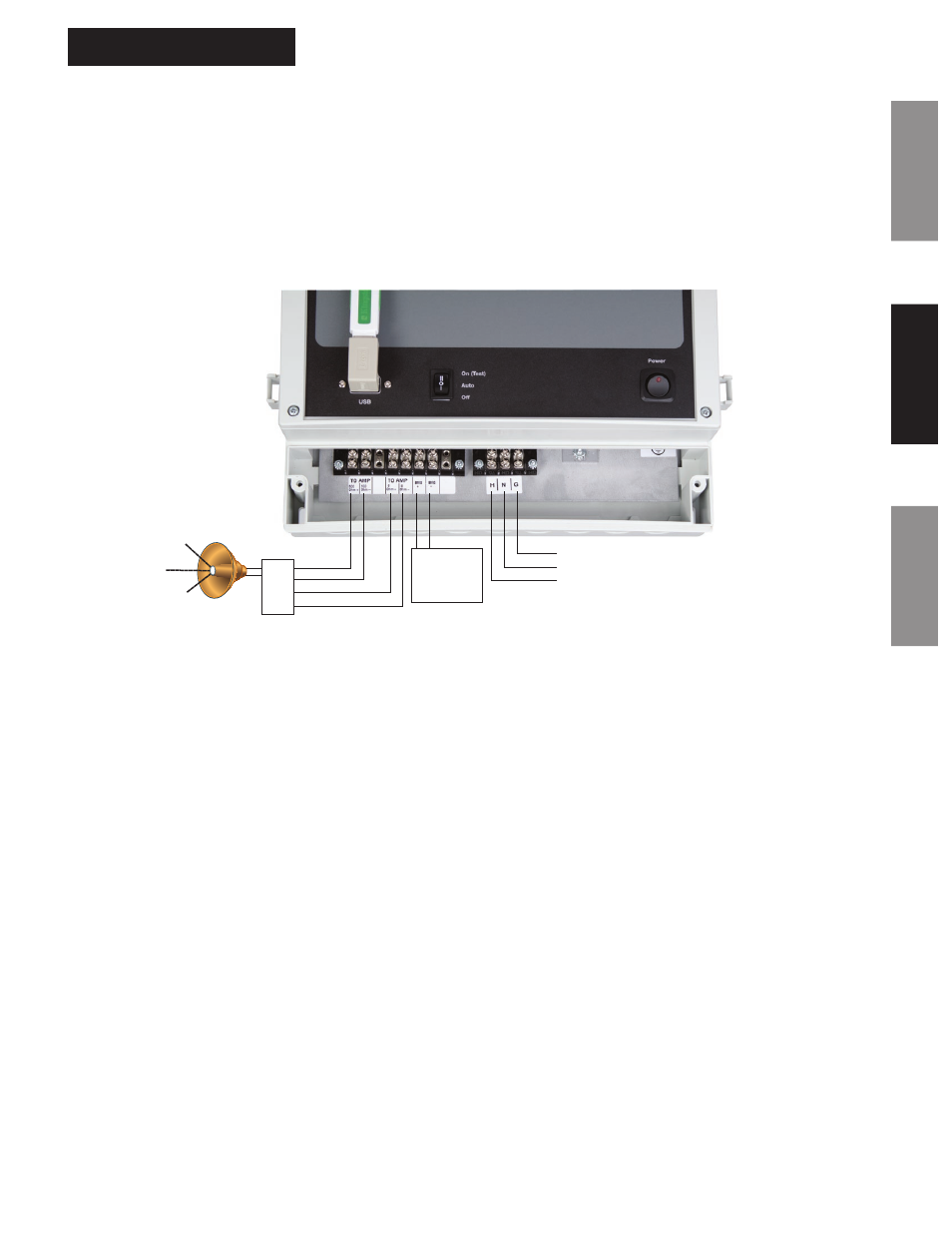

oduction The wiring connections for the Wireless Audio Generator are located in the bottom compartment, under a 2 1 ⁄
2
" by 11 1 ⁄
2
" cover.
n
All electrical power should be disconnected before removing this cover. The bottom panel cover of the Wireless Audio Generator
must in place when power is supplied to the device.
Amp
600 Ohm +
600 Ohm -
8 Ohm +
8 Ohm -
PA
Background
Music
Source
Earth Ground
AC Return
120vac
Tone Output Options
There are two terminal blocks where wiring connects take place. The smaller 3-position terminal block (H N G) is where the
120vac power wiring is connected.
The larger 6-position terminal block is where output signal is wired to the AMP or PA system. The terminal positions labeled
TO
AMP are for wiring either a 600Ω or 8Ω connection to the AMP/PA system.
The larger 6 position terminal block has two positions labeled
BMG. This is where another music source such as a radio receiver
may be connected to the Wireless Audio Generator. The signal wired to BMG positions will play as background music through the
Wireless Audio Generator until one of MP3 files are triggered to play.
