Application Examples
C. Example of Playing Background Music and Triggering Alerts
The Wireless Audio Generator has the ability to play background music which may be interrupted for scheduled alerts or
messages. This would be a useful application for a quiet manufacturing area where background music is played until an alarm
tone is triggered to indicate a break or end of shift.
The background music may be from a source such as a radio receiver. This background music source would be connected to the
BMG connections on the Wireless Audio Generator.
In this example the user would do the following steps to set up the Wireless Audio Generator:
1. Make the connections between the Wireless Audio Generator and the PA system.
2. Connect background music source to the BMG connection on the Wireless Tone Generator.
3. Select or create an MP3 file of the desired alert tone (1.mp3). This will be the only MP3 file saved on the USB drive.
4. Plug the USB drive into the Wireless Audio Generator.
5. Put the Manual Activation Switch in the AUTO position.
6. Put the Power Switch in the ON position.
7. Set up the triggering Events and Circuits in the SiteSync IQ system controller.
n
Note: The suggested duration to trigger an MP3 file is 3 seconds.
Background music will be played until the alert tone is triggered. When the alert tone is triggered the background music will
fade out and the alert tone will be played over the PA system. When the alert tone is finished playing the background music will
automatically fade back in and be played over the PA system.
• 7:00 a.m. indicating beginning of the work shift
• 10:00 a.m. indicating morning break
• 12:00 p.m. indicating lunch break
• 4:00 p.m. indicating end of the work shift

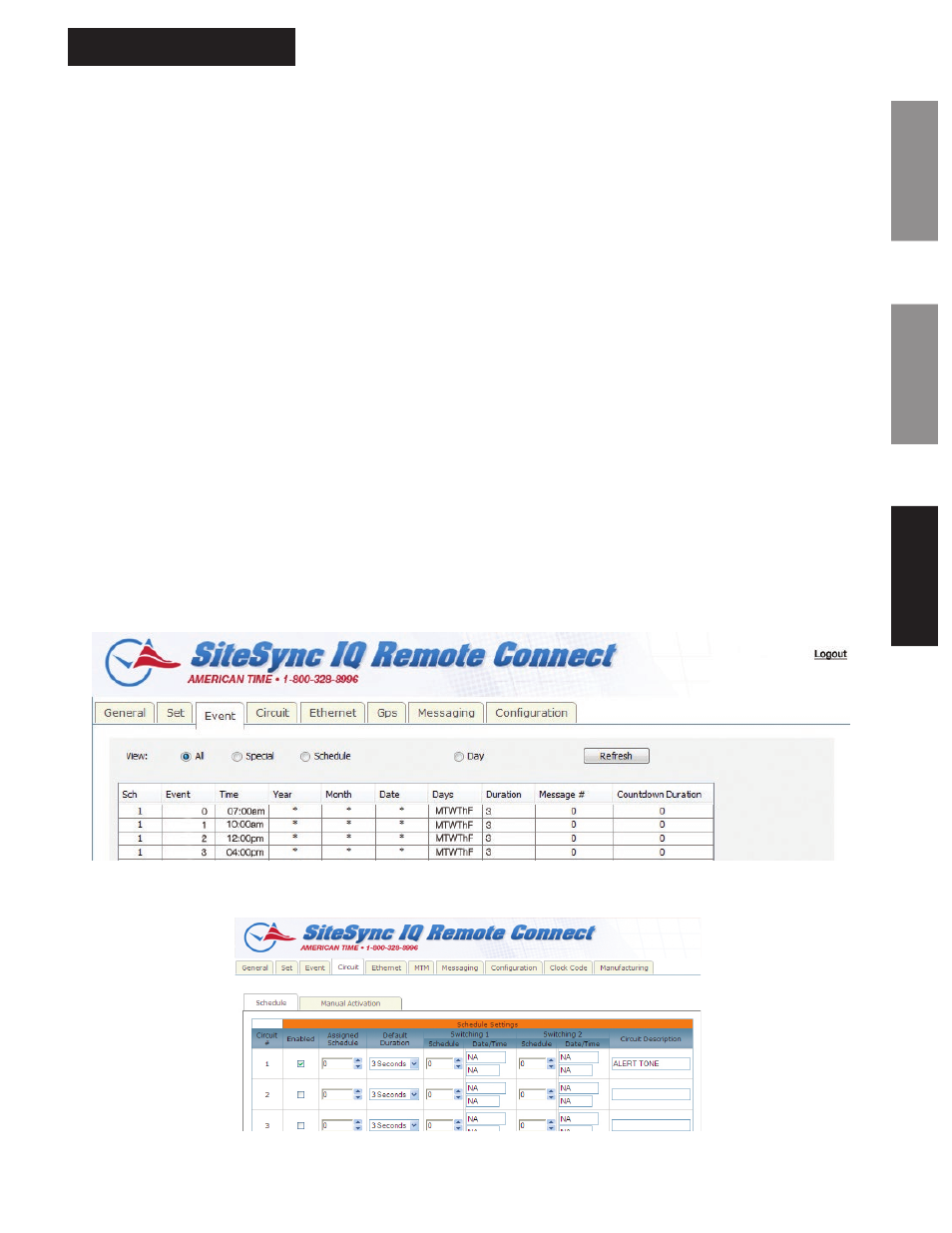

Event Setup in Remote Connect
Circuit Setup in Remote Connect
