MP3 File Setup
Eight different MP3 files may be saved on the USB drive and rotated through by triggering the Wireless Audio Generator with
a SiteSync IQ system controller. After the eighth MP3 file is played, the Wireless Audio Controller will start over again with the
first MP3 file. The MP3 files must be saved on the USB drive in the following naming format:
1.mp3
2.mp3
3.mp3
4.mp3
5.mp3
6.mp3
7.mp3
8.mp3
n
Note: Alternate file naming, such as 08.mp3, will not work with this device.
USB Drive

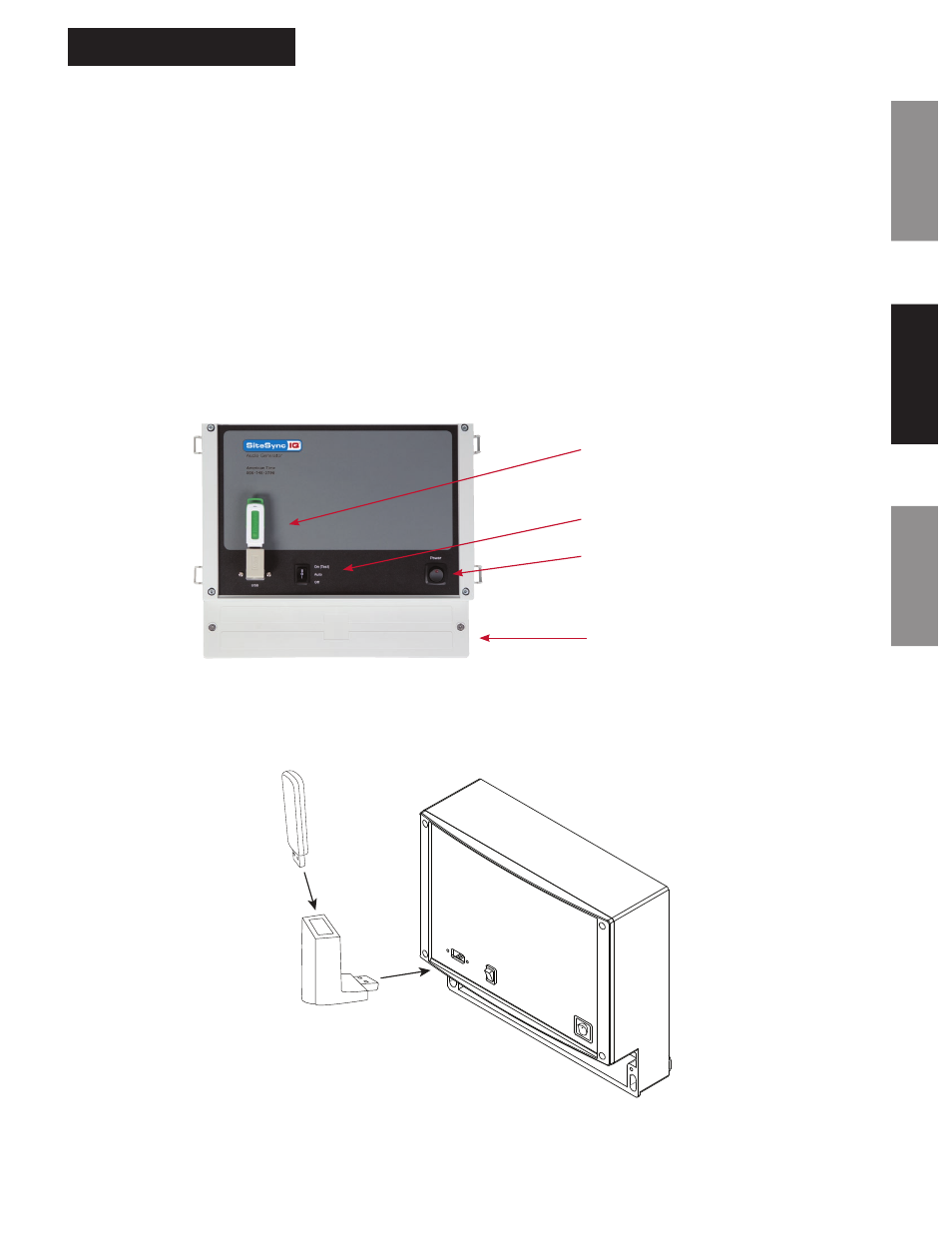

The supplied USB drive is to be inserted in the USB slot located on the front of the Wireless Audio Generator. See Figure 1.
A USB Right Angle Adapter is included so that the USB drive may be inserted into the USB slot at an angle. See Figure 2.
The use of the USB Right Angle Adapter will keep the USB drive as close (parallel) to the Wireless Audio Generator device as
possible. This will reduce the possibility of damage to the USB drive.
n Note: The USB drive must stay connected to the Wireless Audio Generator for the MP3 files to play.
USB Drive
Manual Activation
Switch
Power Switch
Terminal Connections to
PA system
Figure 1
USB Drive
USB Right
Angle Adapter
Figure 2
