10
Wireless Audio Generator
Installation Manual
Application Examples
Operation
Intr
oduction
Application Examples
B. Example of Rotating Music between Classes
Another application of the Wireless Audio Generator is its ability to play music and rotate through eight MP3 files. One situation
where this would be useful is if a school wants to play different classical songs between each class to keep students relaxed.
In this example the school staff would do the following steps to set up the Wireless Audio Generator:
1. Make the connections between the Wireless Audio Generator and the PA system.
2. Select or create up to eight MP3 files of classical music at the desired length. These will be the only MP3 files saved on the
USB drive. (1.mp3, 2.mp3,…8.mp3)
3. Plug the USB drive into the Wireless Audio Generator.
4. Put the Manual Activation Switch in the AUTO position.
5. Put the Power Switch in the ON position.
6. Set up the triggering Events and Circuits in the SiteSync IQ system controller.
n
Note: The suggested duration to trigger an MP3 file is 3 seconds.
The first time the Wireless Audio Generator is triggered it will play the first classical song (1.mp3 at 8:57am). The second time the
Wireless controller is triggered the second classical song will be played (2.mp3 at 10:57 am) and so on.
• 8:57 a.m. 1.mp3
• 9:57 a.m. 2.mp3
• 10:57 a.m. 3.mp3
• 11:57 a.m. 4.mp3
• 12:57 p.m. 5.mp3
• 1:57 p.m. 6.mp3
• 2:57 p.m. 7.mp3
n
Note: MP3 files may need to be adjusted to the desired duration. A wireless controller with multiple outputs can also be
purchased for further control of starting and stopping of MP3 files.

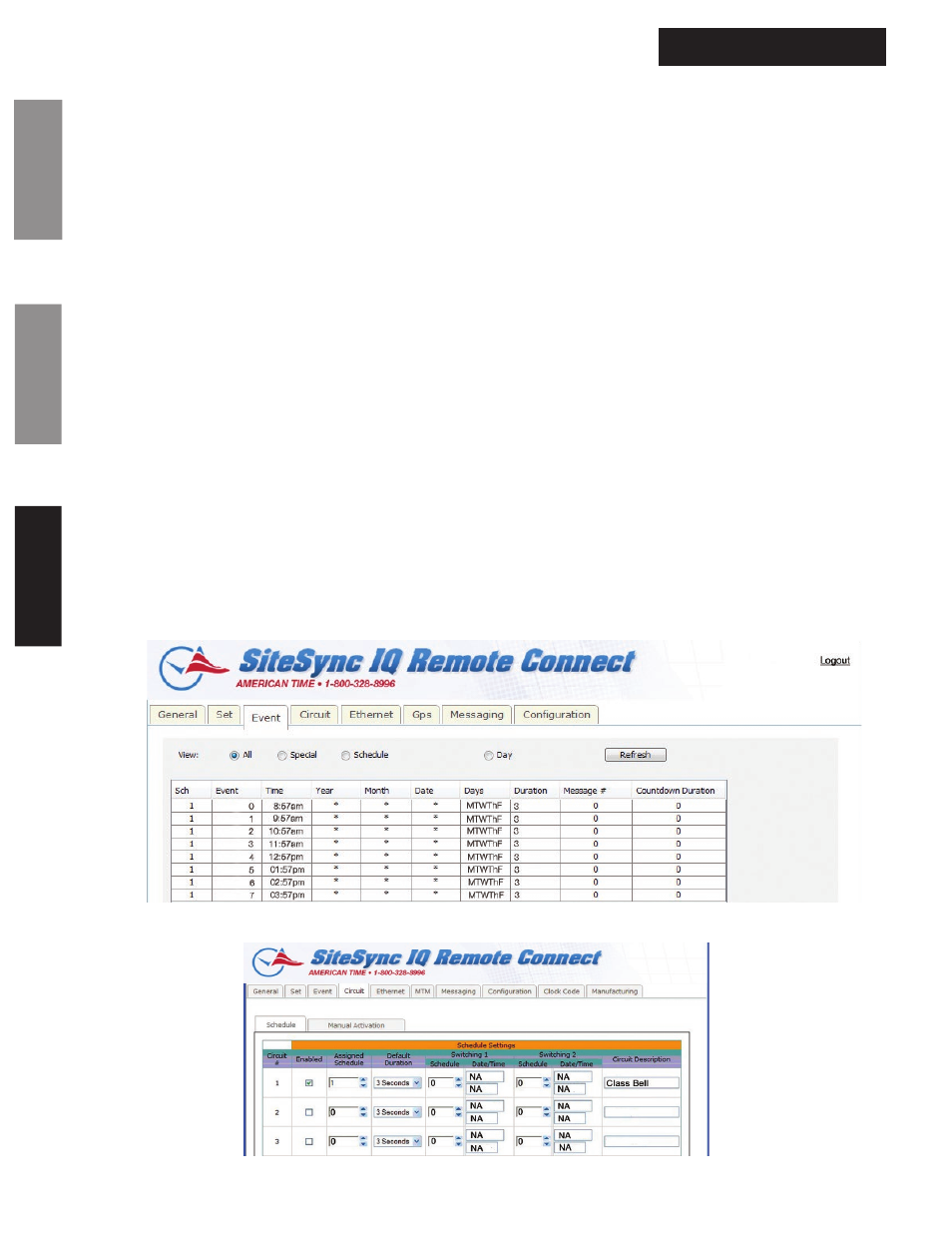

Event Setup in Remote Connect
Circuit Setup in Remote Connect
