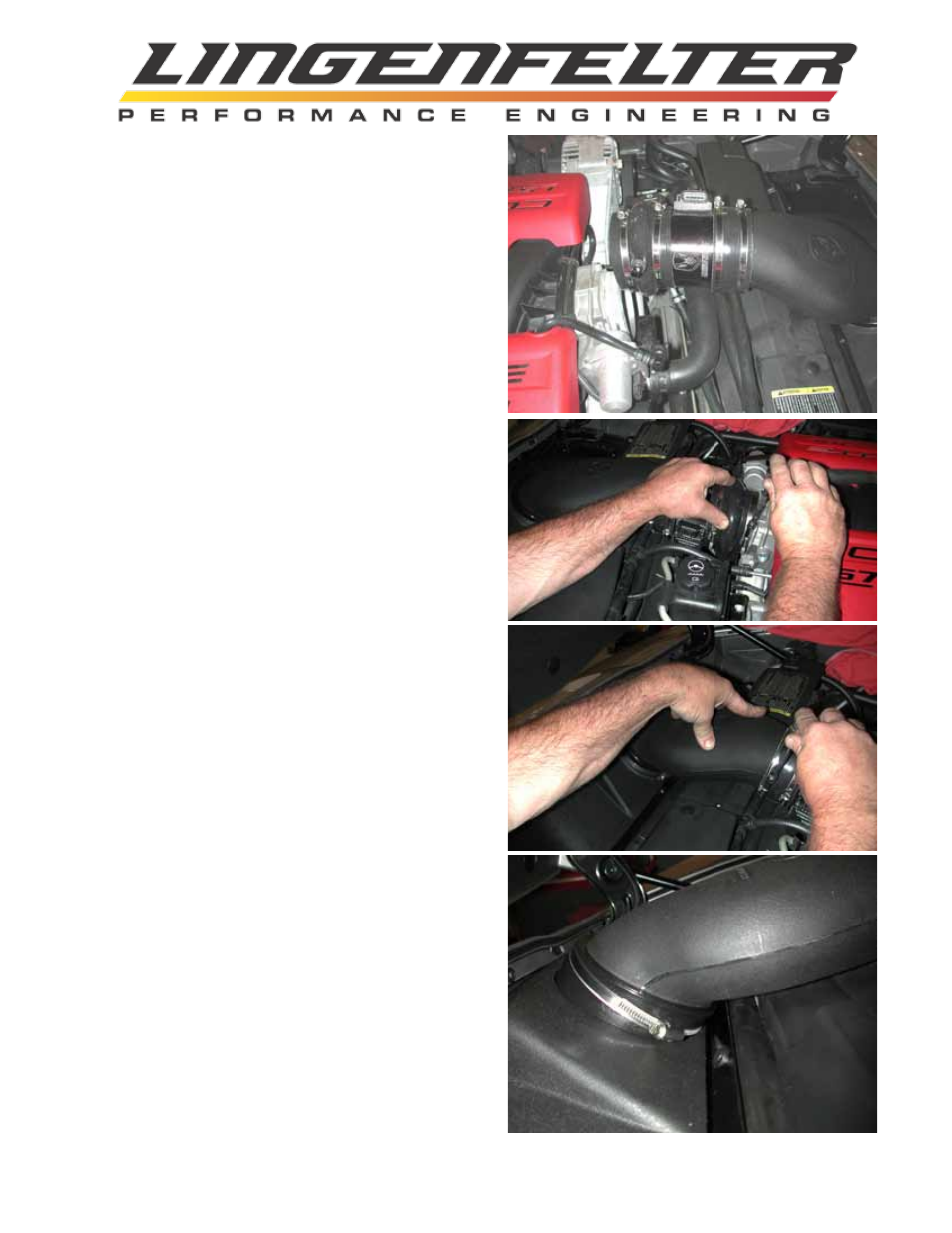

Slide 90-110 mm clamps on either side of the hump hose
and then slide the hump hose onto the MAF housing.
Rotate the hump hose such that the nipple will locate just
above the throttle body motor (roughly 10 o’clock posi-
tion, see pictures). Rotate the MAF sensor assembly such
that the logo on the sensor housing is at the top and lines
up with the logo on the air-bridge.
Rotate the assembly to engage the hump hose over the
throttle body. Make sure the bottom of the hose is prop-
erly located over the throttle body.
Push the “hump” portion of the hose towards the throttle
body while tightening the clamp on the throttle body.
Tighten the next two clamps (in order going away from
the throttle body), making sure the hoses are fully en-
gaged.
Push downward on the air-bridge while tightening the
connection between the straight coupler and the air-
bridge.
Look at the air filter from underneath at this time, if
it is not parallel with the cut in the shroud, it may be
straightened now.
Tighten the clamp retaining the air-bridge to the air filter.
Note: This clamps best when the hose clamp is
positioned as pictured.
Connect the stock breather tube line that couples with the
3/8” nipple located in the hump hose.
