Read the entire instruction manual before beginning installation. Some stock
parts will be used in reassembly.
This air intake kit requires re-calibration of the factory engine management
software in the ECM. The supplied Lingenfelter Power Programmer allows you to
perform this reprogramming.

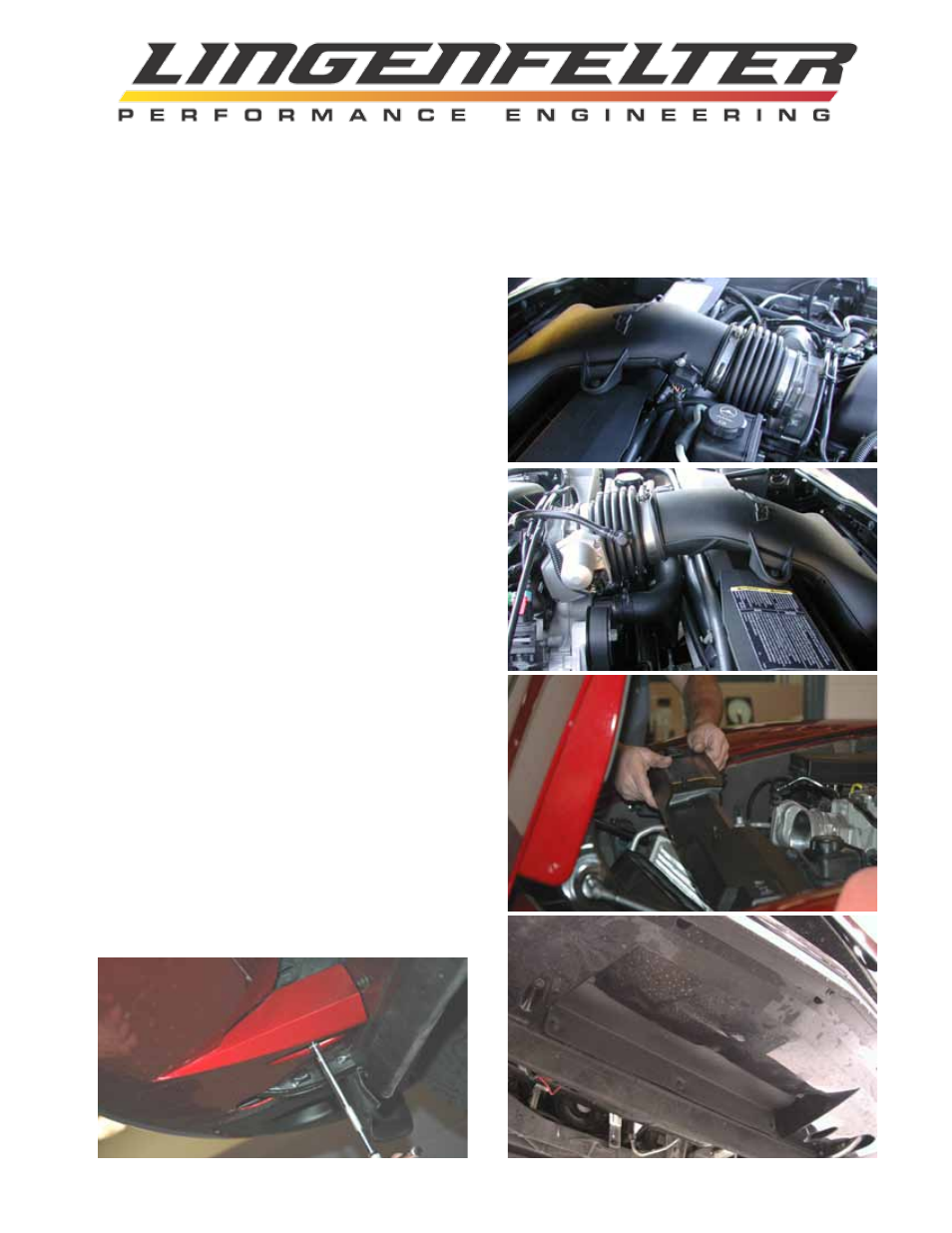

• Disconnect battery ground.
• Remove gray retaining clip on the bottom side of the
MAF sensor, then disconnect MAF sensor connector.
• Disconnect breather tube from bellows.
• Loosen hose clamp at throttle body, pull bellows from
the throttle body.
• Work entire assembly free from push pins & remove as-
sembly from car.
• Remove four screws holding top mount radiator shroud
& unclip hose from top mount radiator shroud.
• Remove top mount radiator shroud.
• Disconnect electrical connector for under hood light &
unclip electrical connector for under hood light from the
radiator shroud.
• Disconnect the electrical connector from the outside air
temperature sensor located low on the right side of the
shroud.
• Remove the two “Christmas tree” push fasteners hold-
ing the radiator shroud to the condenser (save the
fasteners for reuse). They are located approximately
midway up along each side.
• Raise front of vehicle, follow manufacturer instructions.
Use jack stands to support vehicle.
The following steps need to be performed from
underneath the vehicle:
• Remove the three 10 mm screws holding the lower
radiator air inlet block-off cover in position
• Remove the three 7 mm screws holding the front fascia
inside the radiator opening.
• Next, remove the 7 mm screws on either side (one on
each side). These are the screws holding the bottom of
the bumper cover - see picture.
