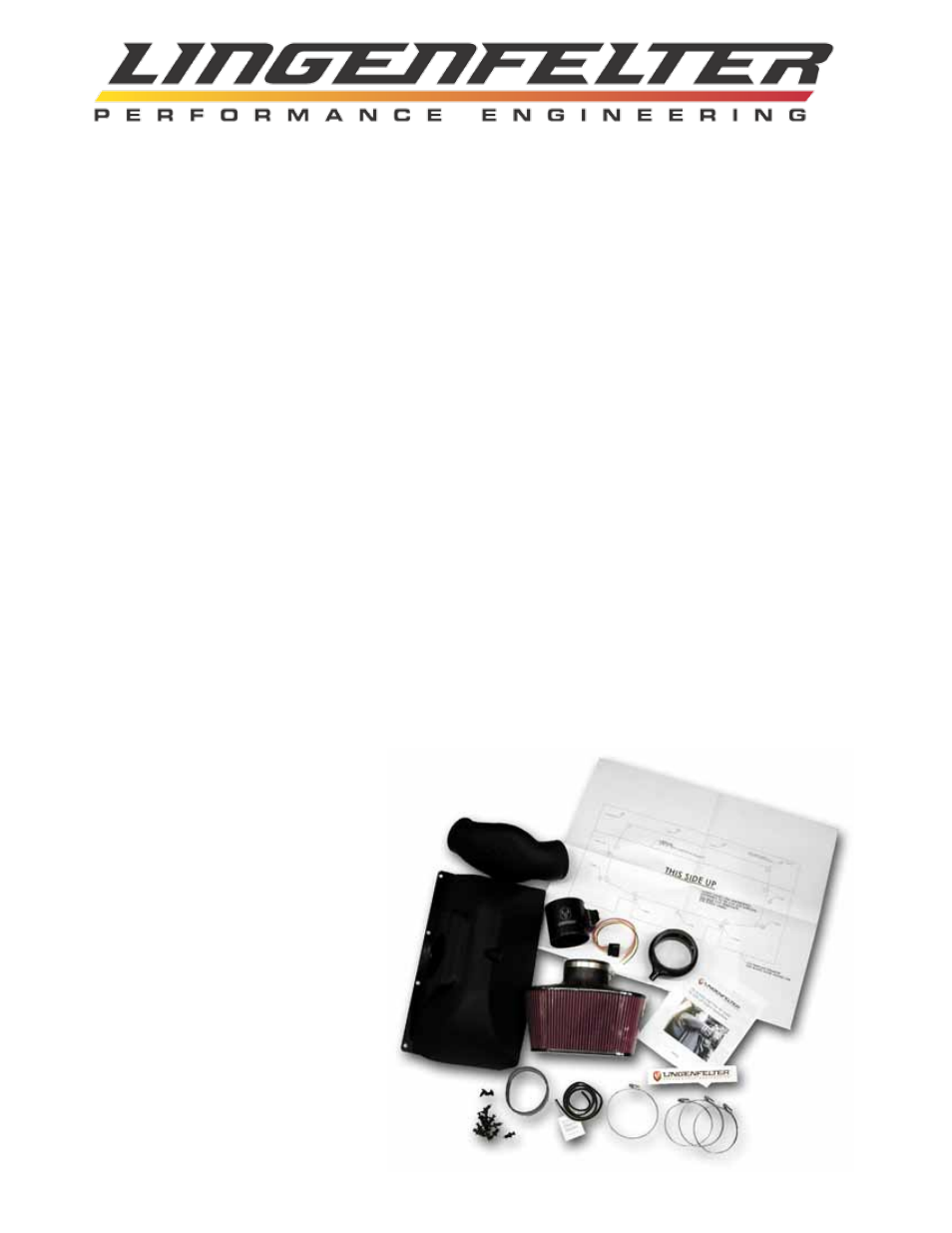

Parts List
# Part number Description
1 LN4230-AB LPE C6 Corvette air-box and bracket assembly
1 LN4230-AI LPE C6 air-bridge
1 L480000000 LPE 100 mm MAF sensor assembly
1 L660070105 LPE C6 Corvette air intake system air filter
11 AV17222 push-lock plastic rivet fastener (pin lock style)
2 AV15414 Christmas tree style plastic fastener
1 TFC40GNB-400-188 4.0” x 1-7/8” hose, black
1 TH-H004BLK 4.0” hump hose, black
4 53990110 90-110 mm hose clamp
1 539100120 100-120 mm hose clamp
1 93695K72 airbox seal, 3/16” x 3/8” x 36”, black
1 LN30203 Lingenfelter Power Programmer
1 L670010105 cut pattern/template
1 alcohol wipe
1 L920010000 LPE decal
1 instructions
Tools Required
Page 1 of 8
• Small flat blade screwdriver
• Ratchet
• 6 mm socket
• 7 mm socket
• 10 mm socket
• 13 mm socket
• T-15 Torx head driver or socket
• Tape
• Center punch, preferably spring loaded
• Jack and jack stands
• Tools for re-pinning MAF sensor harness
• Small pick
• Fork type pry tool or equivalent
• Scissors
• Drill
• 5/16” drill bit
• 11/32” drill bit
• 1/2” drill bit
• Saw or suitable cutting tool
• Marking tool for shroud such as a silver
Sharpie or a scratching tool
Optional Items
• LPE modified production GM Z06 radiator shroud (10346001M)
• LPE plug-and-play MAF sensor adapter harness (L480020206)
• LPE air filter service kit (SB-88-0005)
• Replacement air filter (L660070105)
• Replacement MAF sensor element (XX09747-0011)
