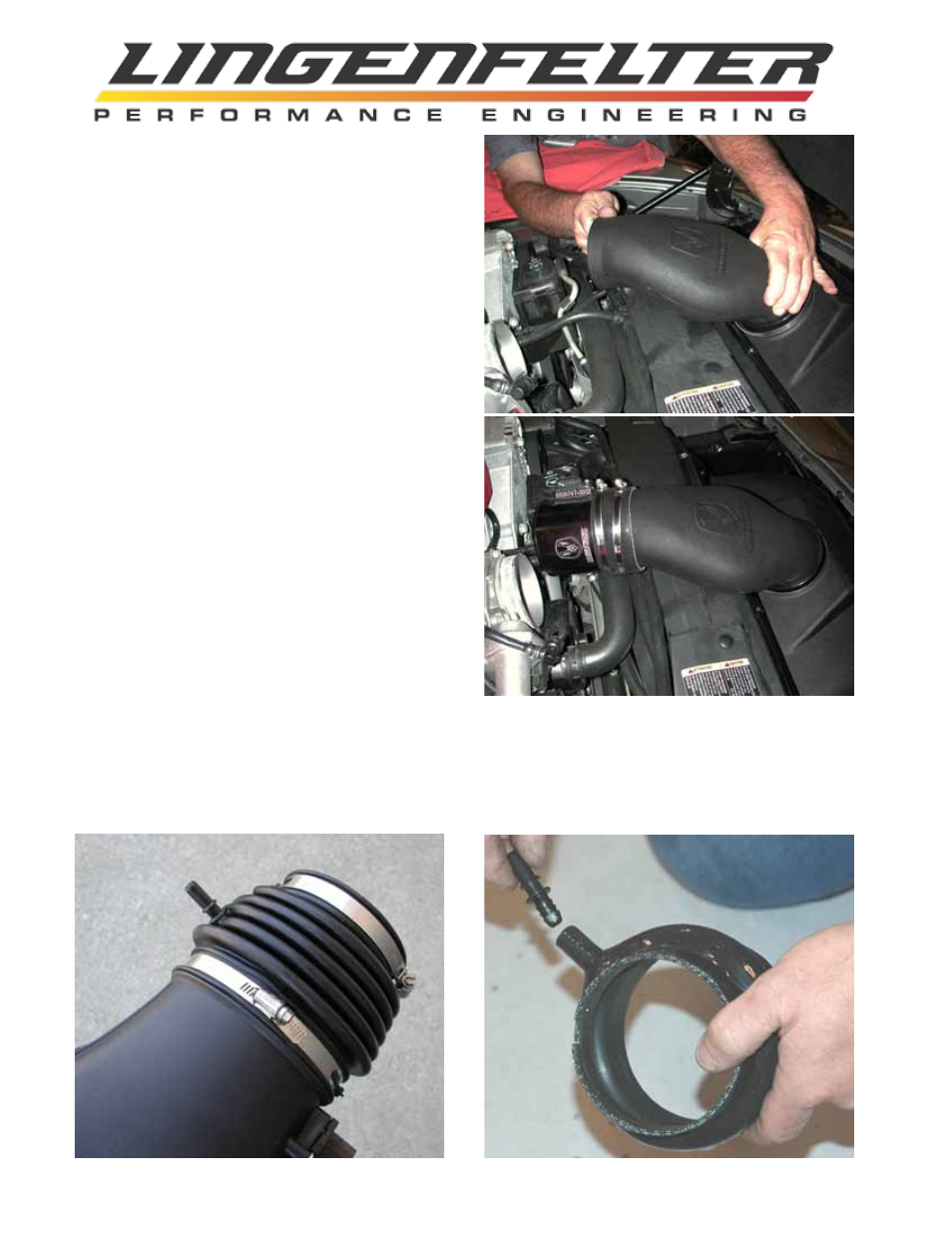

Assembling the duct work:
Slide the larger (100-120 mm) worm gear clamp over the
neck of the air filter in the airbox assembly.
Using a rotating motion, work the large end of the air-
bridge into the air filter neck, do not tighten the clamp
at this time. The logo on the air-bridge should face as
shown in the image.
On the other end of the air-bridge, install the supplied
straight silicone coupler. Slide two 90-110 mm clamps
onto the coupler.
Rotate the air-bridge to the left of the throttle body to
continue assembly (see picture).
Install MAF sensor housing into the coupler. Make sure
the arrow on the sensor is pointing towards the engine.
Remove the 3/8” barbed plastic quick couple from the accordion section of your stock air intake system (see
picture). Install the quick coupler into the silicone hump hose by pushing the barbed side into the 3/8” nipple on
the hump hose. Do not use lubricant.
Page 5 of 8
