Page 1.
Data Logging the Vehicle Data

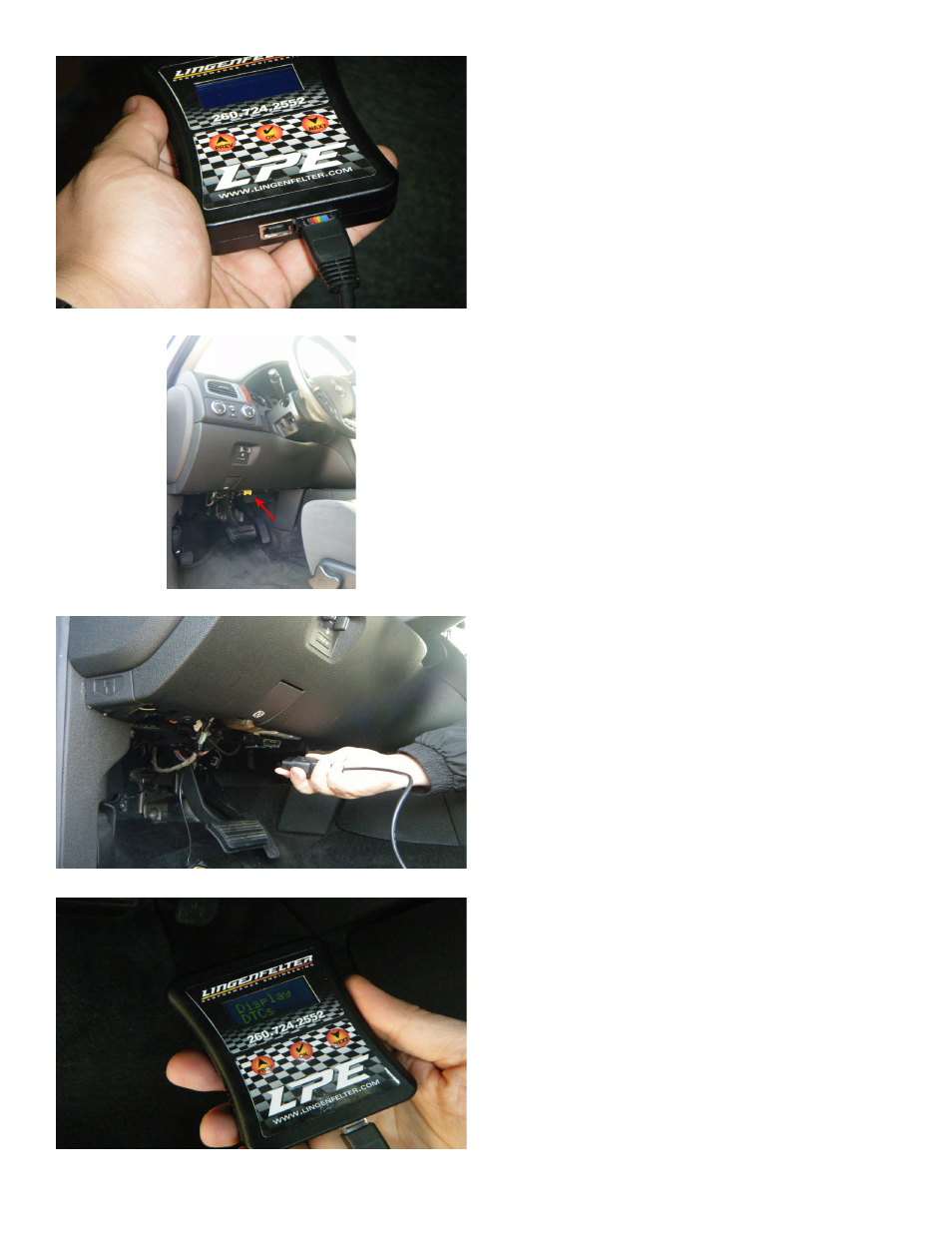

1. Connect the cable with the RJ45 phone style
connector on one end and the automotive
diagnostic link connector (DLC) on the other
end to the AutoCAL handheld device.
2. Remove “Do Not Calibrate” cover from
Diagnostic Link Connector (DLC) port in
passenger footwell (if applicable).
3. With the ignition on (key on) or the vehicle
running, plug the other end of the cable into
the DLC port in the driver footwell (below the
steering wheel).
4. The AutoCAL will power up at this point.
