Page 10.
Installing and Removing Calibrations to and from AutoCal
1. The EFILive Explorer allows the user to manage the files stored in the internal memory of the
AutoCal.
2. To install a tuned calibration from LPE via E-mail attachment, download the calibration and save
it to a folder. Make sure to keep track of which folder you save the calibration in.

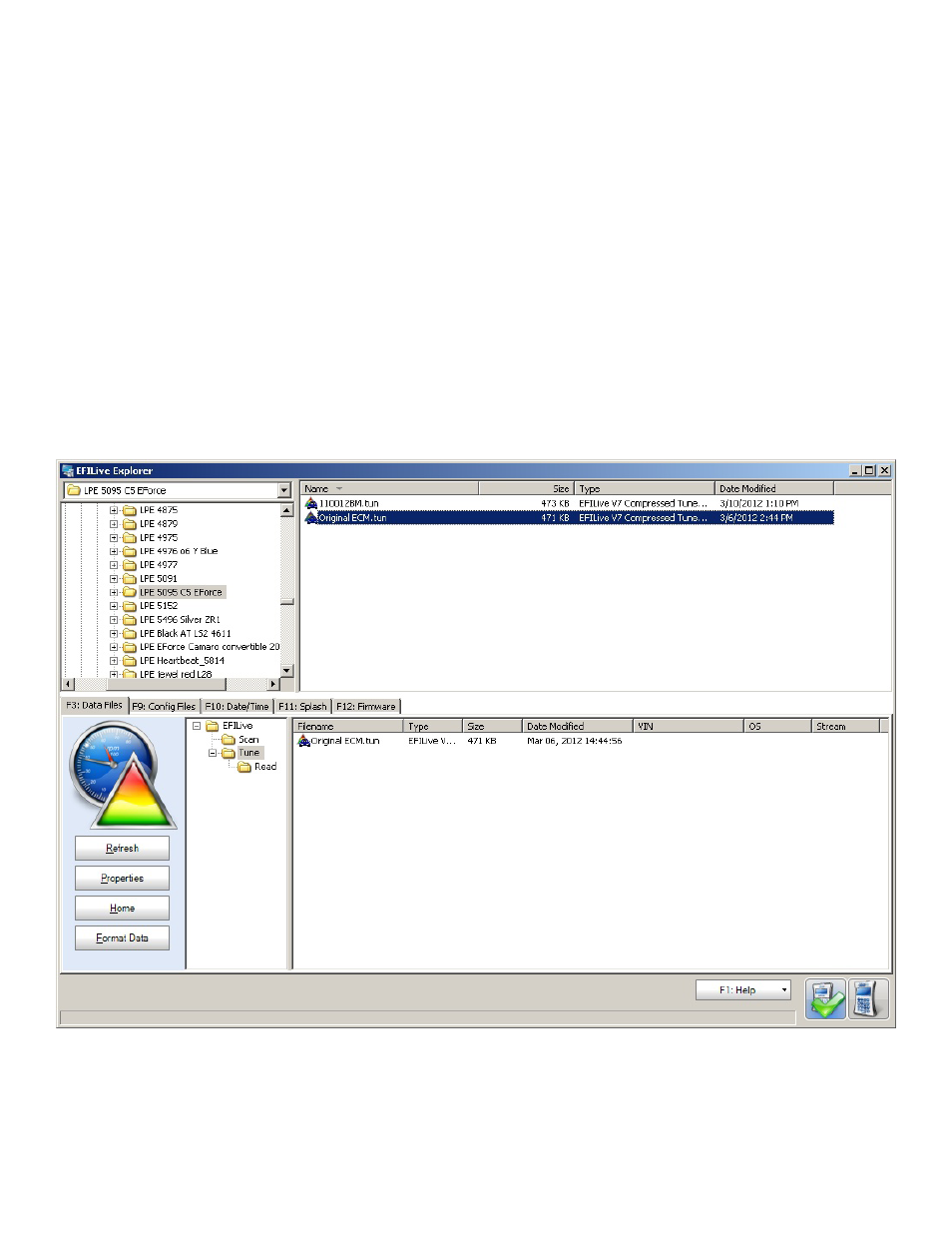

3. Inside the EFILive Explorer program, select the folder that you saved the calibration in from the
windows explorer window (labeled as #1)
4. In the window directly to the right of the windows explorer window (labeled as #2), any available
calibration files will be shown. Click on the desired calibration file(s) and drag them down to the
“Tune” folder in the AutoCal explorer window (labeled as #3). Upon opening the “Tune” folder,
the calibration file(s) should now appear in the adjacent window (labeled as #4).
5. If you want to remove a calibration file from the AutoCal device, right-click the calibration file and
select “Copy” to copy the file to a different location on the computer and then right-click on the file
in the “Tune” folder and select “delete”.
6. The AutoCal can be disconnected at this time. The calibration file is now saved on the AutoCal
device.
1 2
3 4
NOTE: If you get an error while attempting to add a file to the AutoCal, too many files
(calibrations and/or data logs) are currently saved on the AutoCal, so you will need to remove
files before adding the calibration to the AutoCal.
