Lingenfelter L300080607 Lingenfelter Suburban Yukon Aux Fan Kit AC Clutch Control 2005-07 vE User Manual
Page 4
Page

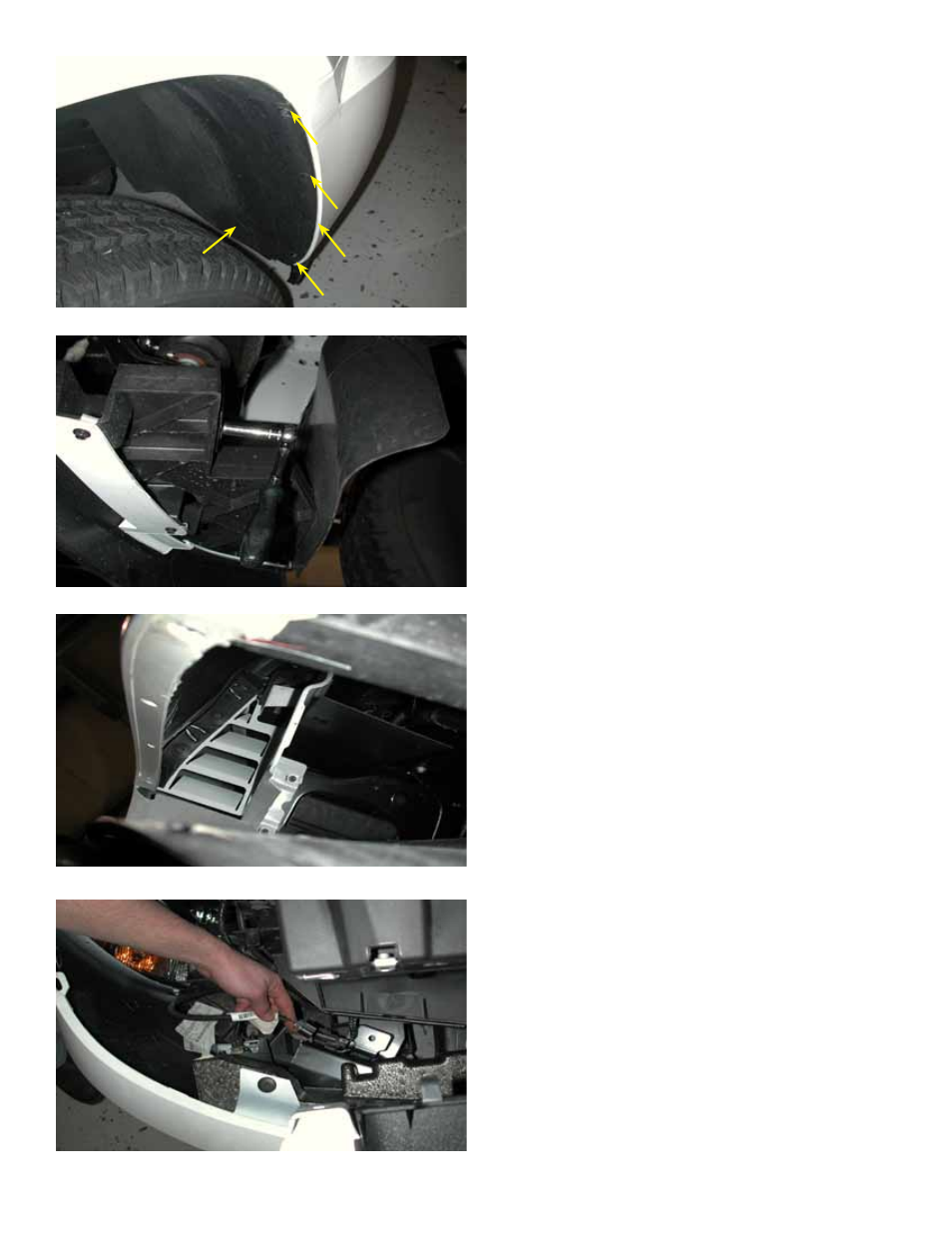

5. Next remove the two 7mm bolts and three
push clips from both of the front inner fender
wells.
3.
6. Remove the two, one on each side,
10mm bolts securing the plastic fascia support
brackets to the metal bumper support brackets.
7. Next remove the four bolts, two on each
side, holding the fascia to the fenders.
8. With help from an assistant, carefully
pull the front fascia loose from the vehicle and
unplug the fog lights on each side. Set aside
somewhere it will not get damaged.
