Page 10.
34. Pull the orange wire from the remaining
bundle of wires in the fan relay harness. Pull the
wire out so that it exits the plastic convoluted
loom near the fuse relay center.
35. Now you will connect the orange wire
(from the fan relay harness) to the dark green
wire in connector #X2 (sometimes referred to
as C2) pin D4. This wire is the AC compressor
clutch supply voltage, circuit 59.
Refer to the connector end views on page 18.

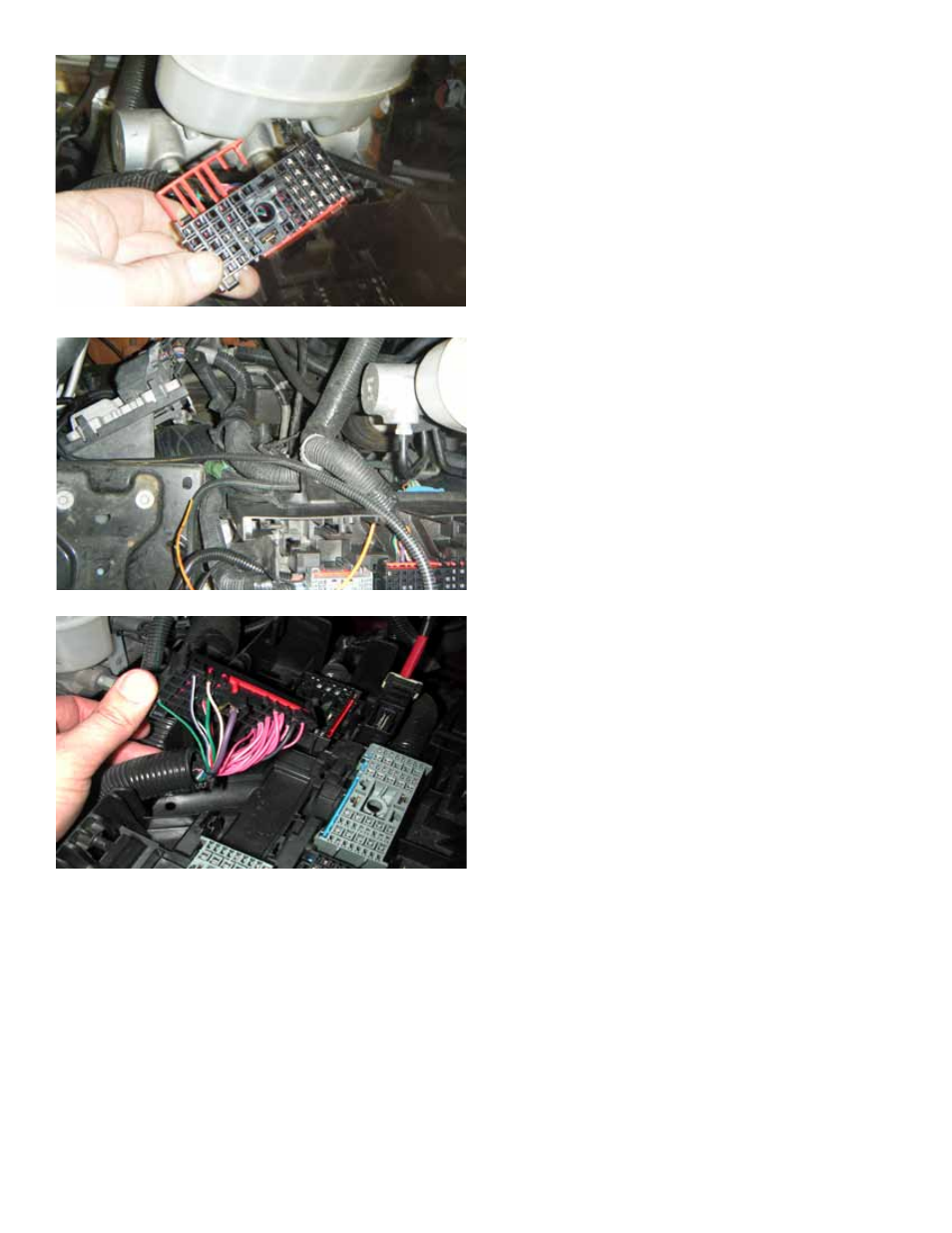

33. Remove the terminal retainers (red plastic
clips) from front end of the connector as shown.
36. Two primary ways exist to connect to
this circuit:
• Method A - cut the wire and then splice the
three wires using the supplied splice connector
(#37-40, page 11)
• Method B - remove the terminal, strip back
the insulation and solder in the spliced wire.
(#41-44, page 12)
