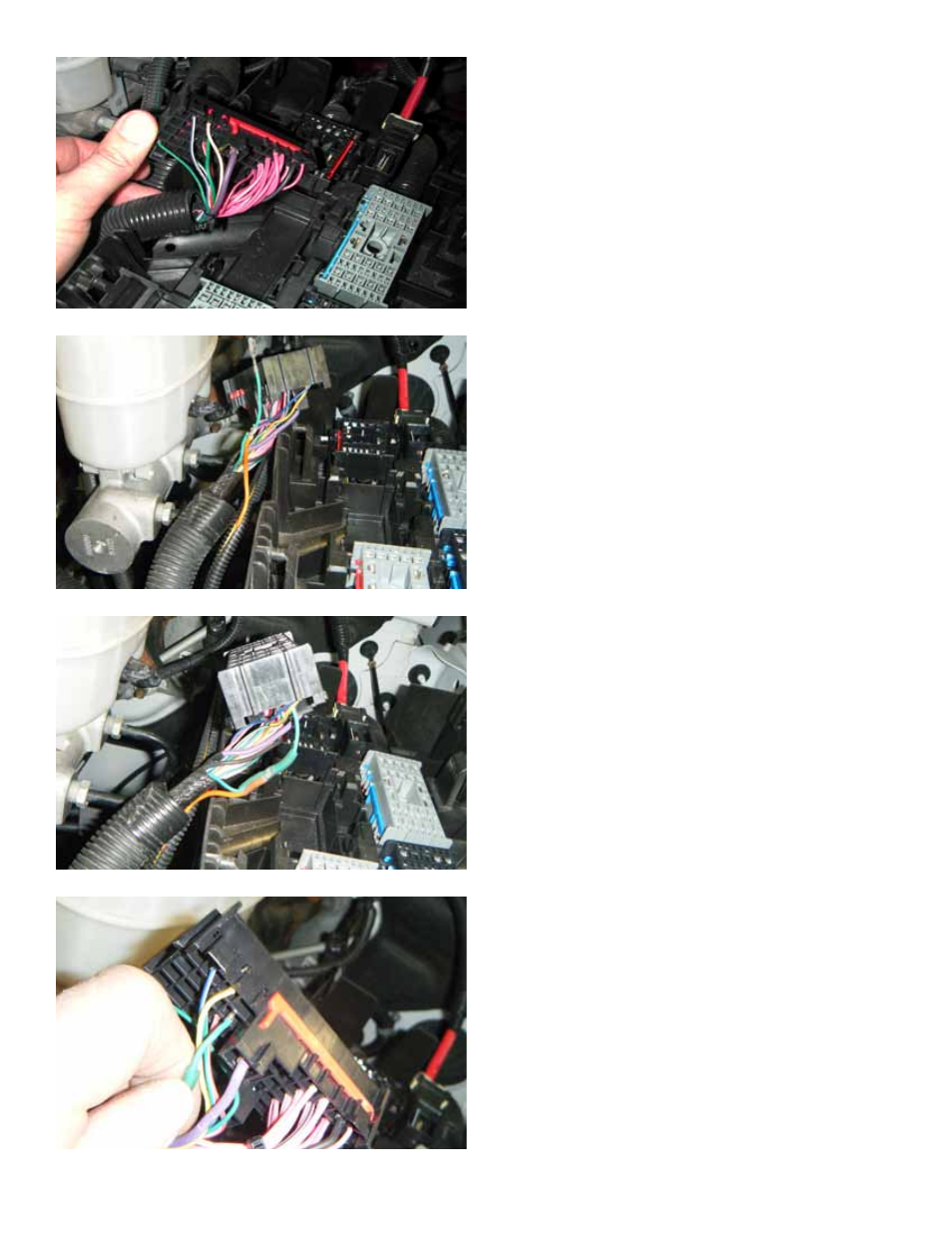

41. Method B (if using method A go to step 44)
Using a pick tool or a small screwdriver, remove
the dark green wire from connector X2, pin D4
(refer to the connector end views on page 18).
This is the AC compressor supply voltage wire,
circuit 59.
42. Roughly 1-1/2” from the terminal, strip 1/4”
section of insulation from the green wire. Cut
the orange wire to length and then strip 3/8”
of insulation from the end of the orange wire.
Splice the orange wire to the green wire by
wrapping the orange wire around the exposed
section of the green wire and then solder the
connection.
12.
43. Slide the supplied heat shrink tube over
the terminal end of the wire. Using a heat
gun, shrink the tubing over the soldered splice
connection.
44. Re-install the terminal into the connector
X3, cavity D4.
