Page 9.

30. Route the portion of the fan wiring harness

that includes the yellow/black ground wire and

the orange trigger wire up past the ECM and to

the fuse block. Secure in place with some Zip ties.

[MISSING IMAGE]

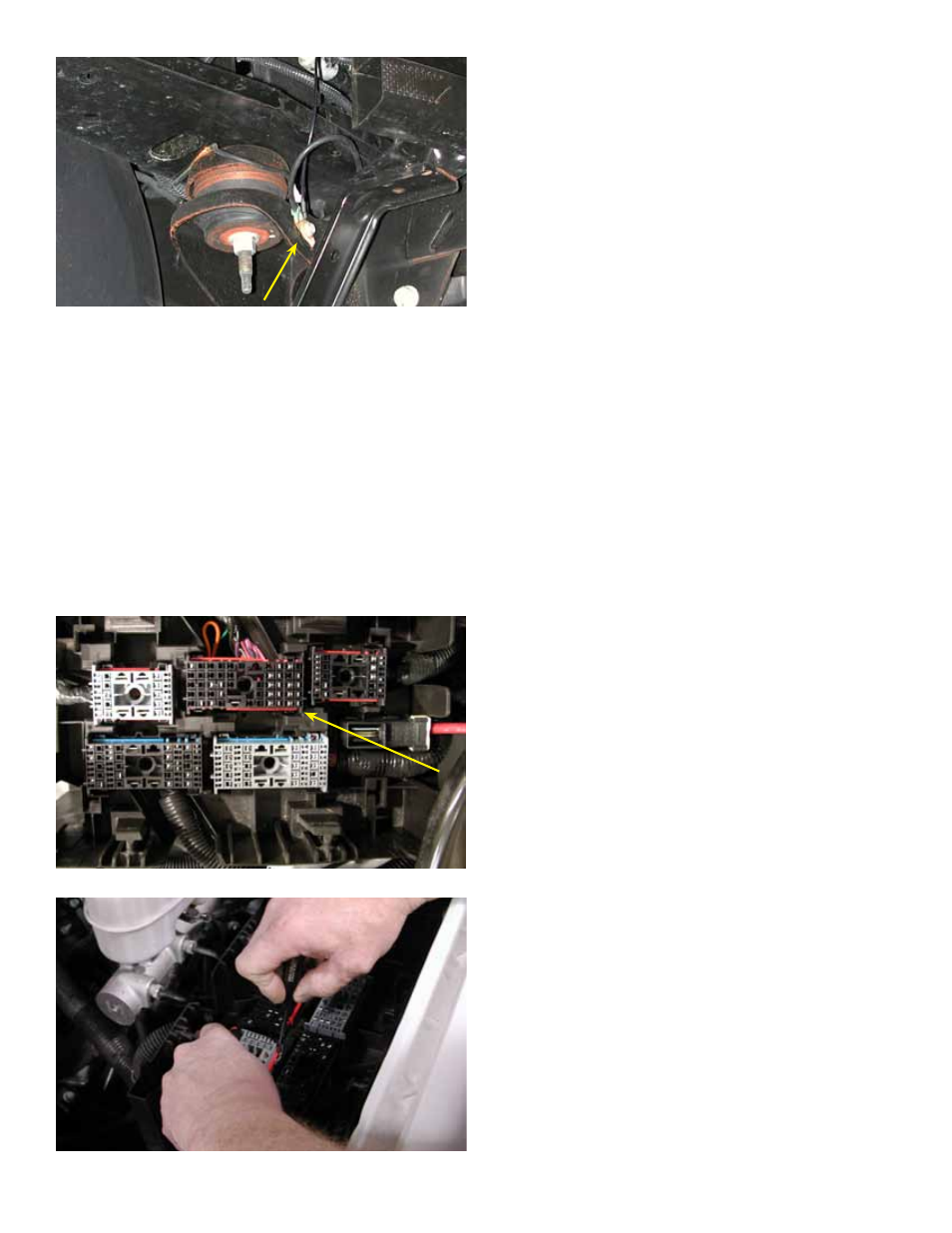

31. Image of fuse block and relay center with

cover removed.

The arrow shows connector X2 (or C2) that will

be needed in the following steps. Connector

block X2 is the black connector on the left side

(passenger side), one back from the front.

32. Using a pin depressor tool or a small

screwdriver, remove connector X2 from fuse

block (see fuse block diagram for connector

numbers).

29. On the passenger side, connect the

ground wire from the fan # 2 side of the harness

to the frame of the vehicle on the passenger

side using the existing factory ground bolt found

in front of the wheel well next to the end of the

bumper beam as shown.
