Page 13.

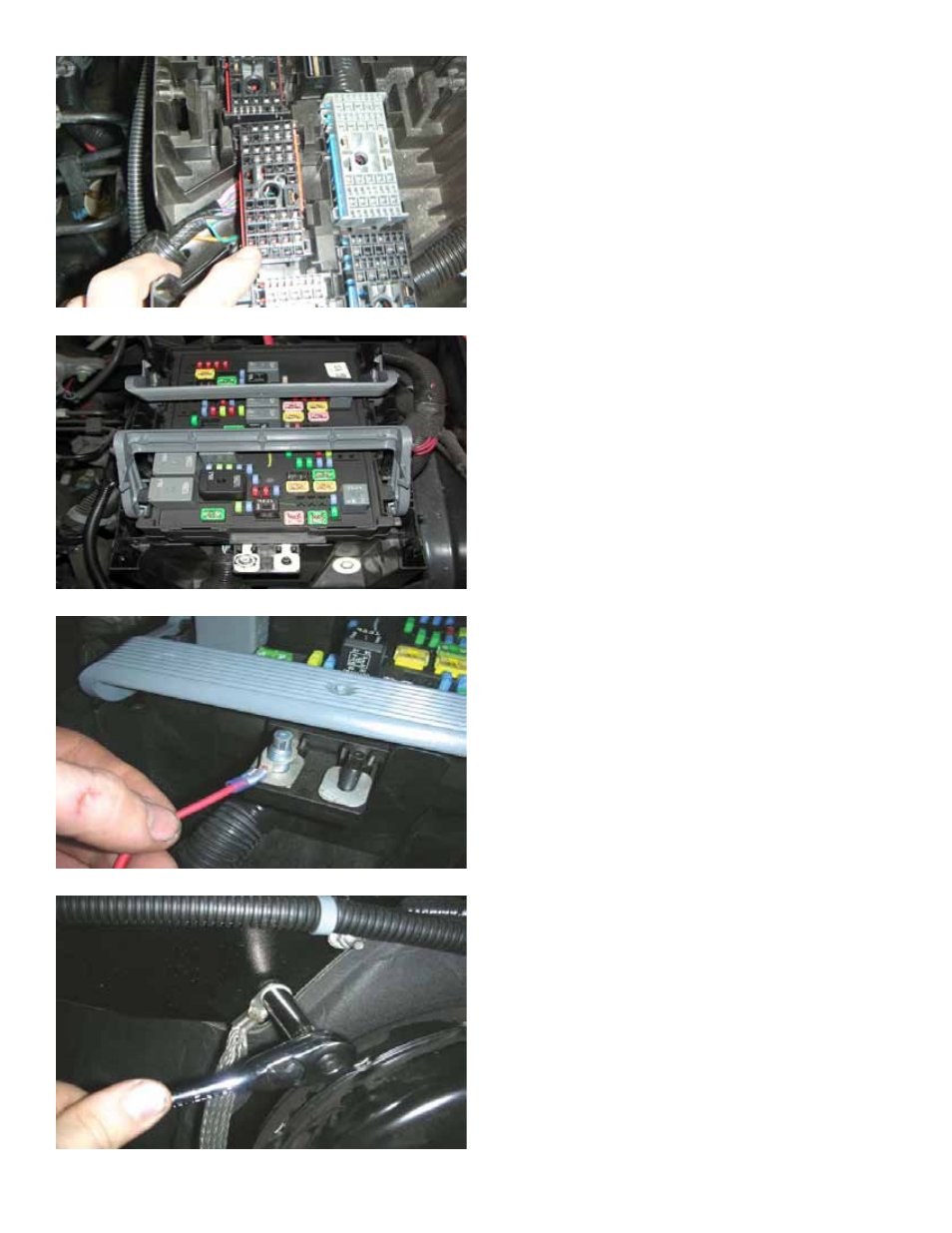

46. Re-install the fuse block onto the fuse

block base.

47. Attach the main power wire from the

supplied 6 position fuse block to the stud in the

factory fuse box using the M8 nut. Tighten using

a 13 mm socket.

Install the supplied 22” long section of 1/4” high

temperature loom to the red wire between the

supplied fuse block and the mounting stud.

Since not all vehicles come equipped with a M8

nut on the stud from the factory, a M8 nut has

been provided in case one is not already there.

48. With a 10mm socket wrench, remove the

nut securing the ground cable to the firewall.

45. Re-install terminal retainer clip on the X2

connector and install it into the fuse black and

relay center base.
