Console Front and Rear Panels
The following illustrations show the front and rear panels of the V676 console.
Note: The drawings in this manual show the optional DMX Processing Module installed, however, your particular
console may not have this hardware. Refer to
on page 4 for more details.

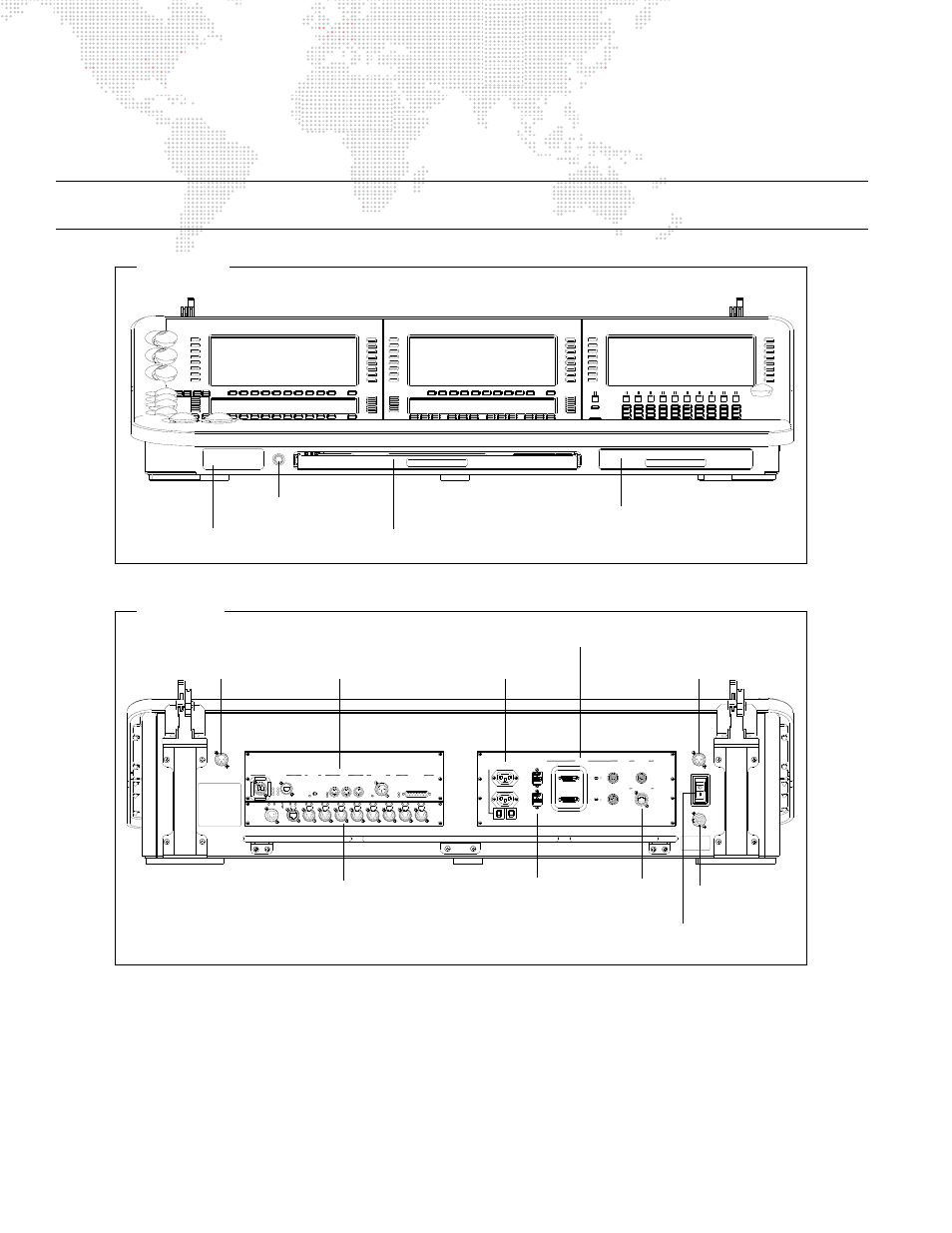

Figure 3: V676 Console Front and Rear Panels
