16 V676 ® CONTROL CONSOLE INSTALLATION & OPERATION MANUAL
LED Indicators
LED indicators located on the rear panel provide feedback for device and system connections.

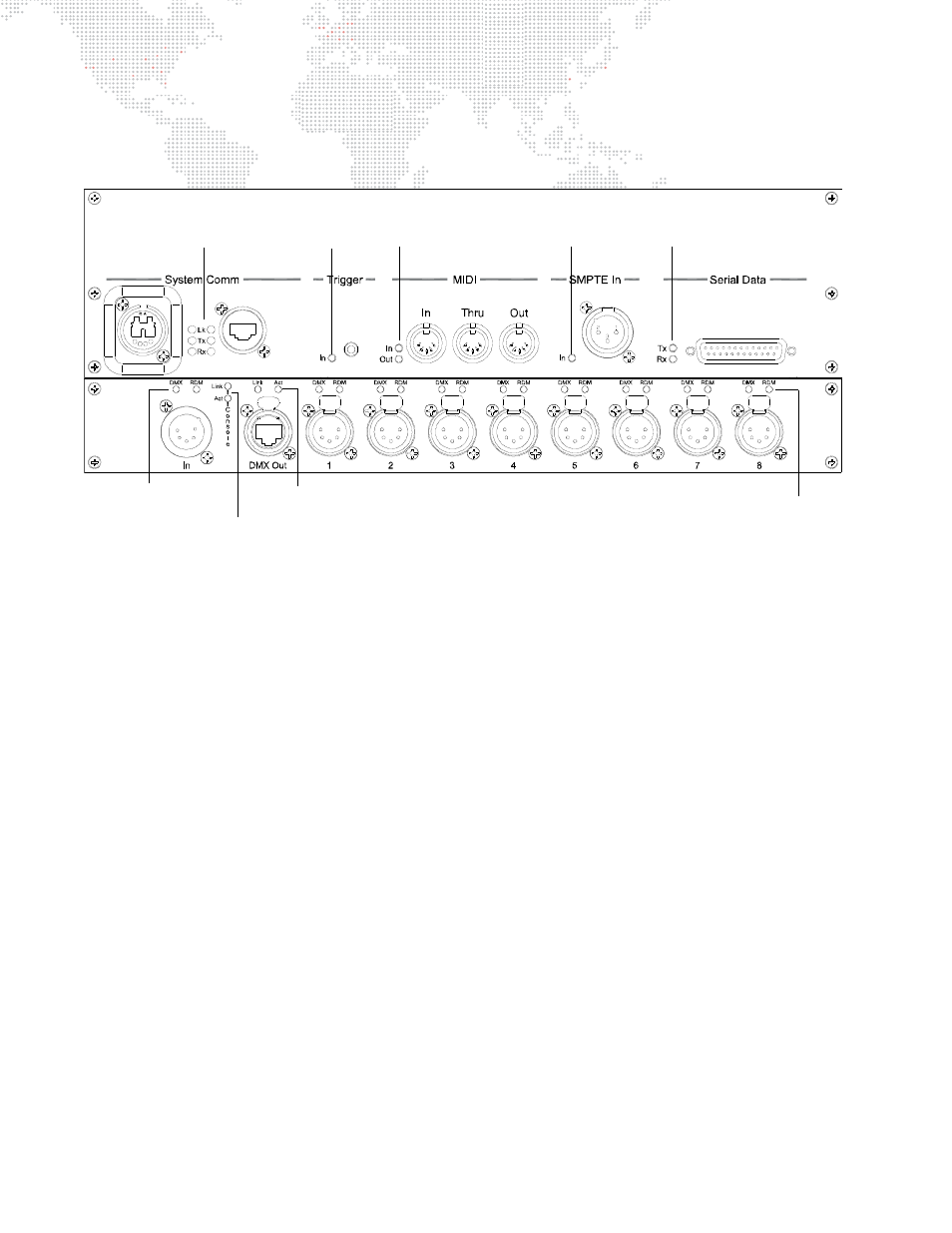

Figure 10: V676 Rear Panel Indicators
Indications are as follows:
System Comm:
+ Link - Lights green when there is an active link to another Ethernet device.
+ Transmit (Tx) - Flashes green when an Ethernet message is transmitted.
+ Receive (Rx) - Flashes green when an Ethernet message is received.
Trigger:
+ Trigger In - Flashes green when a switch closure is detected on the trigger input.
MIDI:
+ In - Flashes green when when a MIDI message is received.
+ Out - Flashes green when a MIDI message is transmitted.
SMPTE:
+ SMPTE In - Lights green when a valid SMPTE input signal is present.
Serial Data:
+ Transmit (Tx) - Flashes green when serial data is transmitted.
+ Receive (Rx) - Flashes green when serial data is received.
DMX In: *
+ DMX - Lights green when DMX512 is being received.
+ RDM - Lights green when an RDM message is transmitted.
Console: *
+ Link - Blinks green to indicate that the panel CPU is running.
+ Activity - Flashes green to indicate activity internal to the console (scanning switches, etc.).
Trigger In MIDI In & Out SMPTE In Serial Data Activity System Activity
Ethernet DMX Out Link & Activity
DMX Out DMX & RDM (8)
DMX In DMX & RDM
Console Link & Activity
