TVE-DEC10 IP Video Decoder User Manual 15

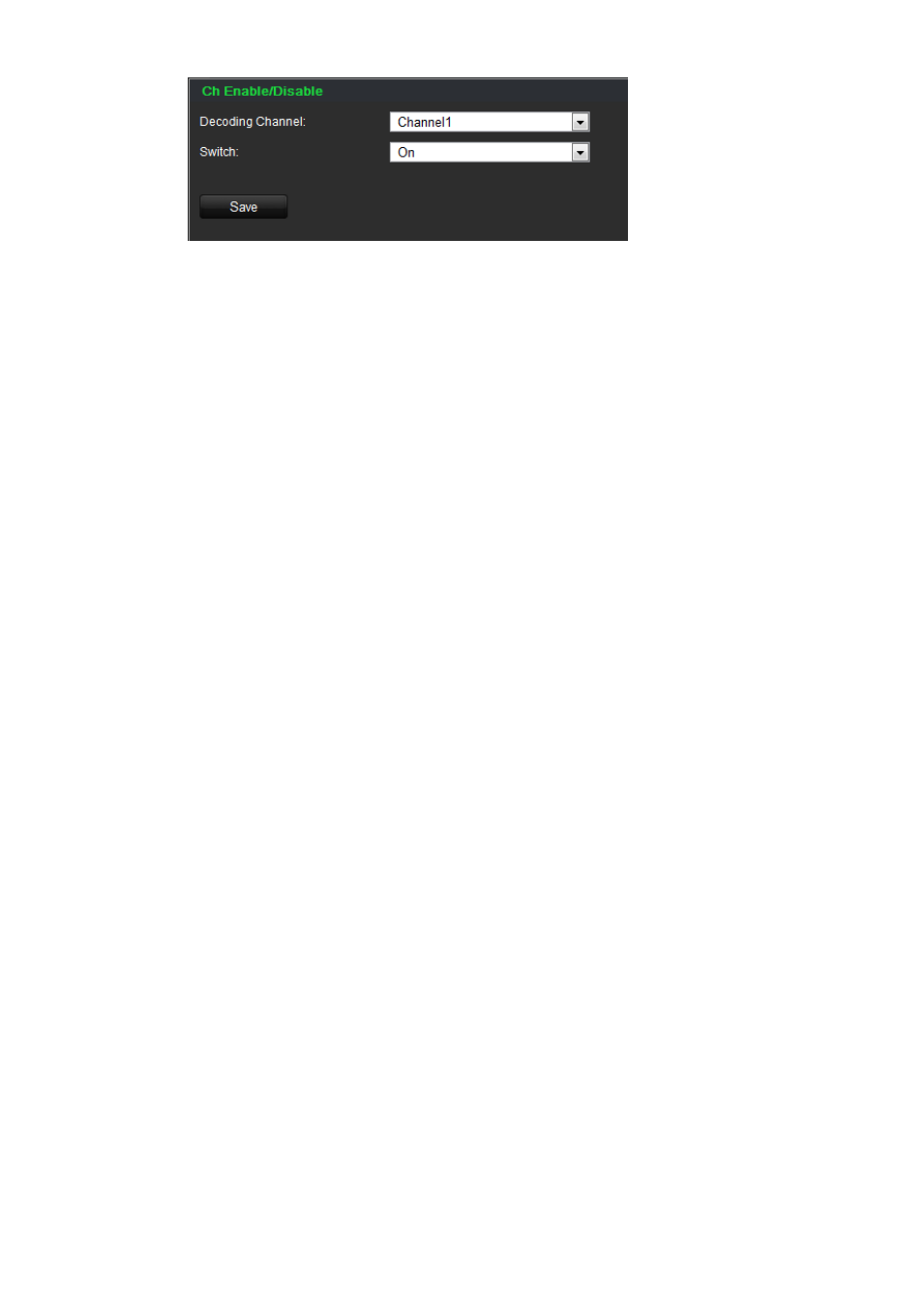

2. Select the desired decoding channel from the drop-down list.
3. In the Switch box, enable or disable the selected channel.
4. Click Save to save the settings .
Image scaling
Use this function to scale the video output image in display mode. This can avoid
some parts of the video image being hidden by the monitor screen. “Stretching”
is full screen mode; the image is stretched to fill the whole screen regardless of
the selected resolution. With “Auto fill” the image occupies the image size of the
selected resolution. The left/right or top/bottom margins may be blank on the
monitor screen edges as a result.
To set up image scaling:
1. Click Decoding Operation > Decode Control > Image Scaling. The Image
Scaling window appears.
2. Select the desired decoding channel from the drop-down list.
3. In the Image Scaling box, select Stretching or Auto Fill from the drop-down
list.
4. Click Save to save the settings.
Picture overlay
Use this function to overlay a picture on a decoded channel display. The picture
can be positioned anywhere on screen.
The picture must have a 32-bit BMP format. Its height and width should be 32X
pixel. A resolution up to 128 x 128 is supported.
To set up picture overlay:
1. Click Decoding Operation > Decode Control > Picture Overlay. The
Picture Overlay window appears.
