14 TVE-DEC10 IP Video Decoder User Manual
Display settings
Use this window to configure the display channel, video format, output resolution
and display mode. There are 3 display modes formats; full screen, 2-screen and
4-screen.
The decoder auto detects the video mode (PAL/NTSC).
To set up the display settings:

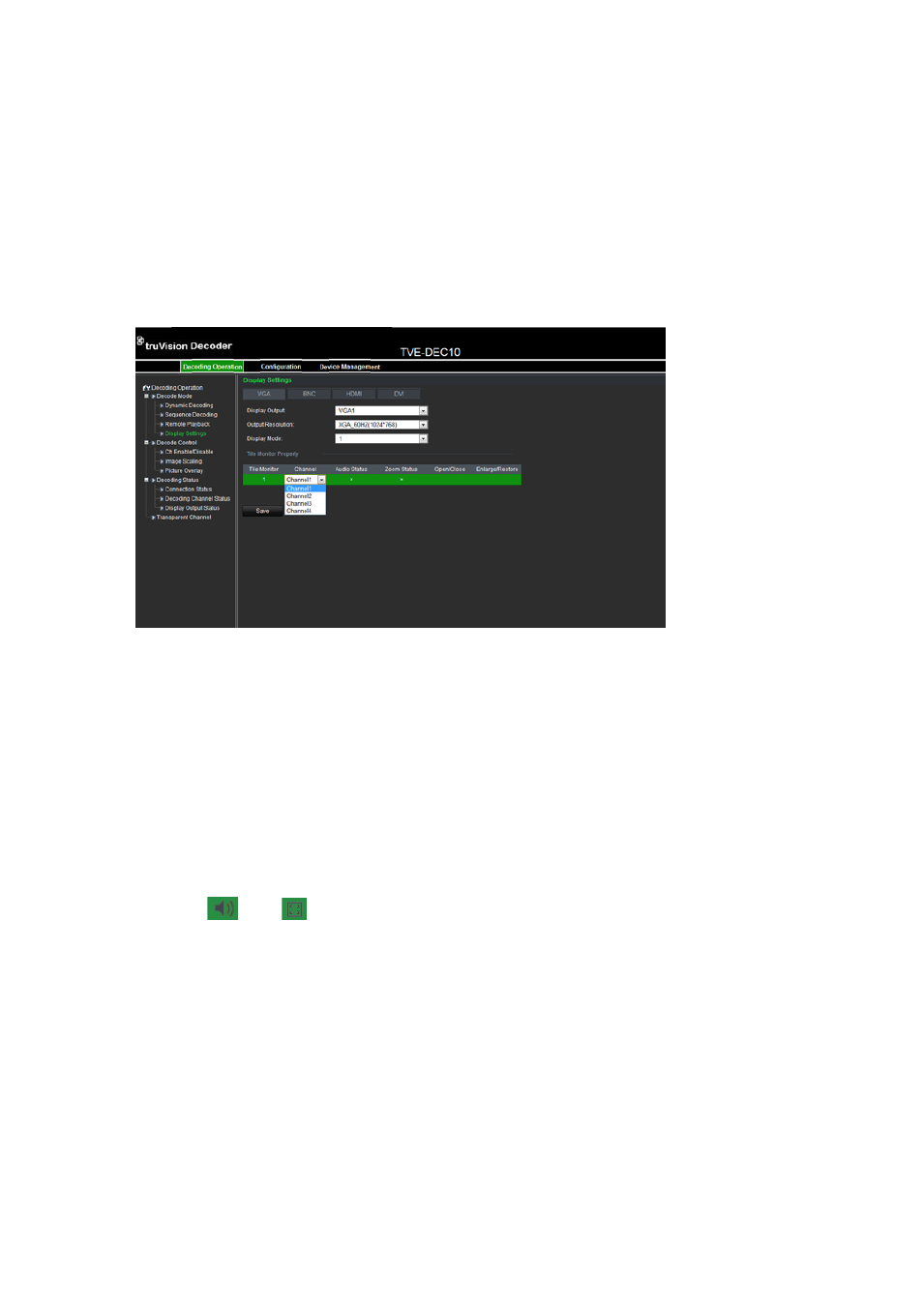

1. Click Decoding operation > Decode Mode > Display Settings. The Display
Settings window appears.
2. Click a button to select the output display required: VGA, BNC, HDMI or
DVI.
Depending on the option selected the options displayed in the monitor
property window may change.
3. Select the output resolution from the drop-down list.
4. Select the display mode from the drop-down list.
5. Under the Tile Monitor Property window, select which video tile on the
monitor is associated with which channel. This option depends on the output
display option selected.
Click the and icons to enable or disable audio and image scaling
respectively for each channel.
6. Click Save to save the settings .
Enable/disable decoding channel
Use this window to enable or disable a decoding channel. The decoding channel
parameters remain unchanged.
To set up decoding sequence:
1. Click Decoding Operation > Decode Control > Ch Enable/Disable. The
Global Switch window appears.
