TVK-800 User Manual 7

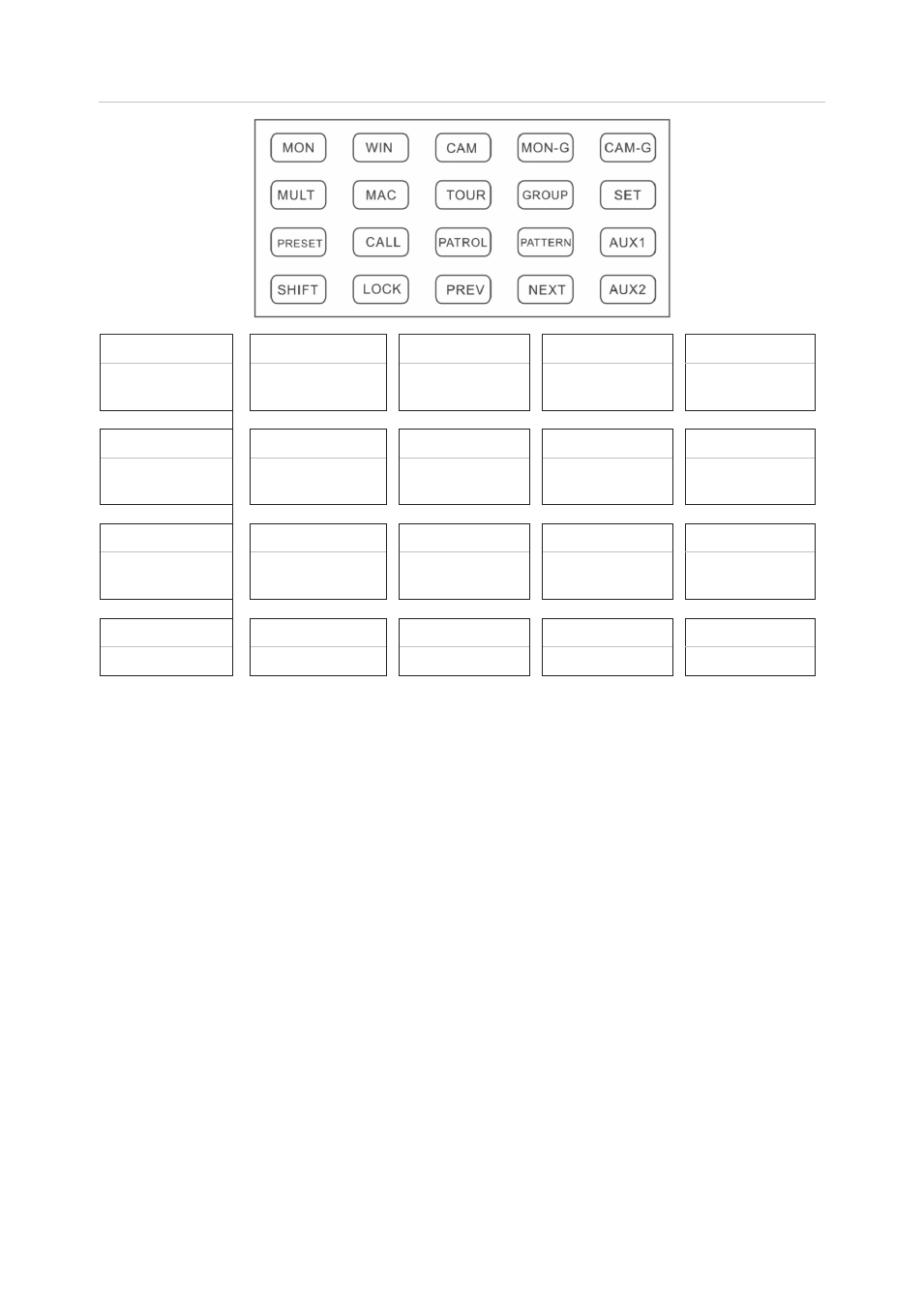

Figure 3: Description of the function keys
MON WIN CAM MON-G CAM-G
Select a monitor Select a video tile
(decoders only)
Select a camera Select a monitor
group
Select a camera
group
MULT MAC TOUR GROUP SET
Select a multiview
display format Call a macro Set or call a tour Set or call a
group
. Set preset tour,
shadow tour
PRESET CALL PATROL PATTERN AUX1
Set a preset Call a preset Call a preset tour Call a shadow
tour
AUX 1
SHIFT LOCK PREV NEXT AUX2
Shift Lock screen Previous camera Next camera AUX 2
Locking the keypad
When in live view mode, press the LOCK key to lock the keypad and mouse. Once
locked, none of the keys (except LOCK), the joystick, the mouse, or the touch screen
can be used.
To lock the keypad in live view, press and hold the LOCK key, or press the SHIFT +
LOCK keys. When the keypad is locked, the LOCK key is lit red.
To unlock the keypad, press and hold the LOCK key, or press the SHIFT + LOCK keys.
The LOCK key turns blue.
The keypad automatically locks after a predetermined period of inactivity. The time (in
minutes) can be set in the Keypad > Hardware Settings menu.
Note: The keys are also locked when the screen is automatically locked.
Playback control dial and keys
See Figure 2 on page 6 for the location of playback control on the keypad.
