TVK-800 User Manual 15

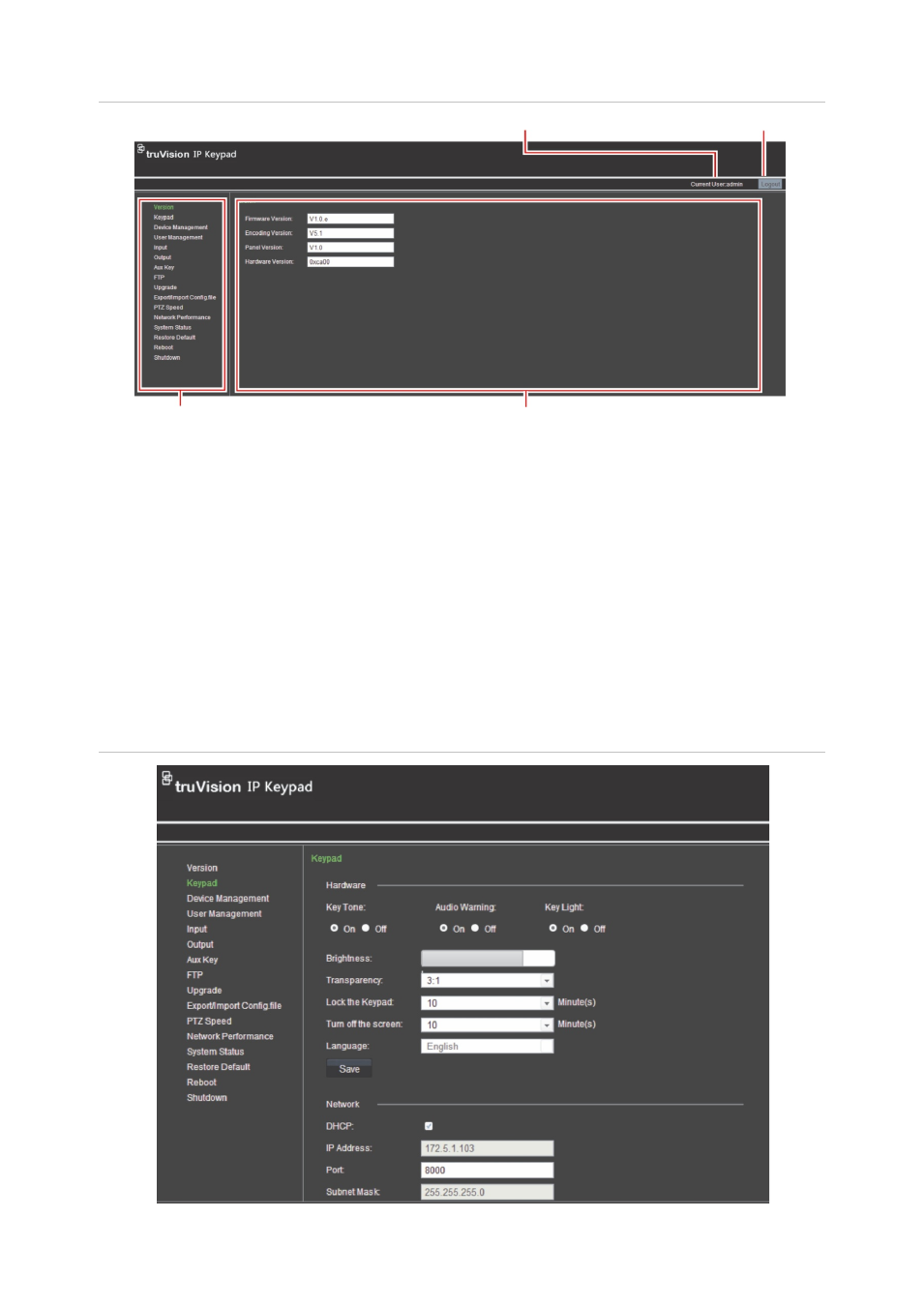

Figure 7: Main web window (Version menu shown)
User type (Admin shown) Logout
Menu panel
Click a menu item to select it.
Setup window
Enter the required data for each parameter.
Keypad management
This menu is only accessible by the Administrator.
You can configure all the keypad parameters from the browser by clicking Keypad in
the submenu panel and entering the required parameters. Click Save to save the
changes. See Figure 8 below.
For information on setting up keypad parameters locally, see “Keypad management” on
page 24.
Figure 8: Keypad management window
