22 TVK-800 User Manual
Click FTP in the submenu panel to get the FTP window. See Figure 14 below.
For further information on auxiliary key set up, see “FTP settings” on page 43.

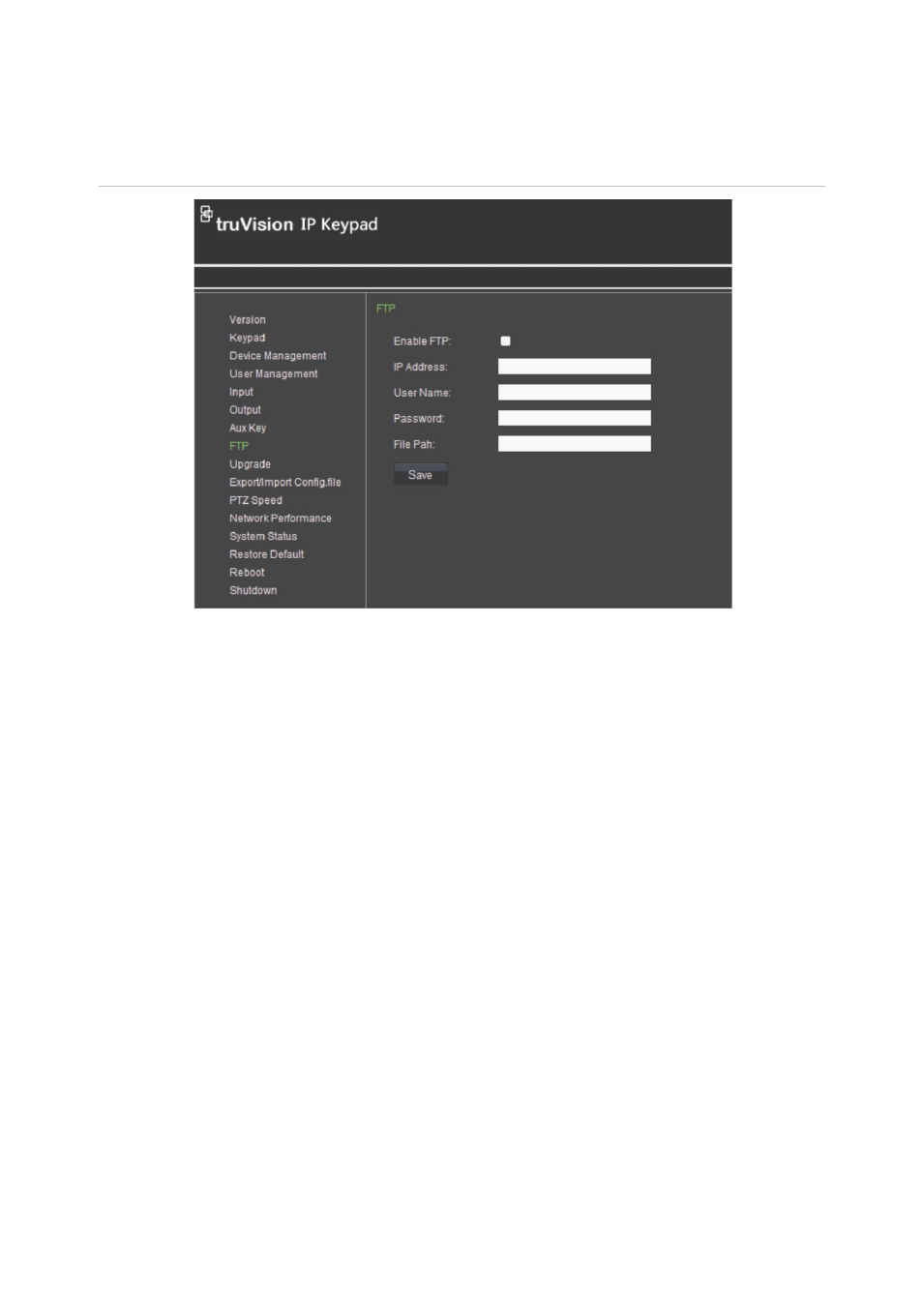

Figure 14: FTP window
To set up the FTP server settings
1. In the FTP window, check the Enable FTP box.
2. Enter the IP address as well as the user name and password to log in to the FTP
server.
3. Enter the file path to which the video files and snapshots are uploaded.
4. Click Apply to save the settings.
System status
Click System Status to check the boot time of the keypad as well as the number of
different devices connected to the keypad.
