TVK-800 User Manual 49

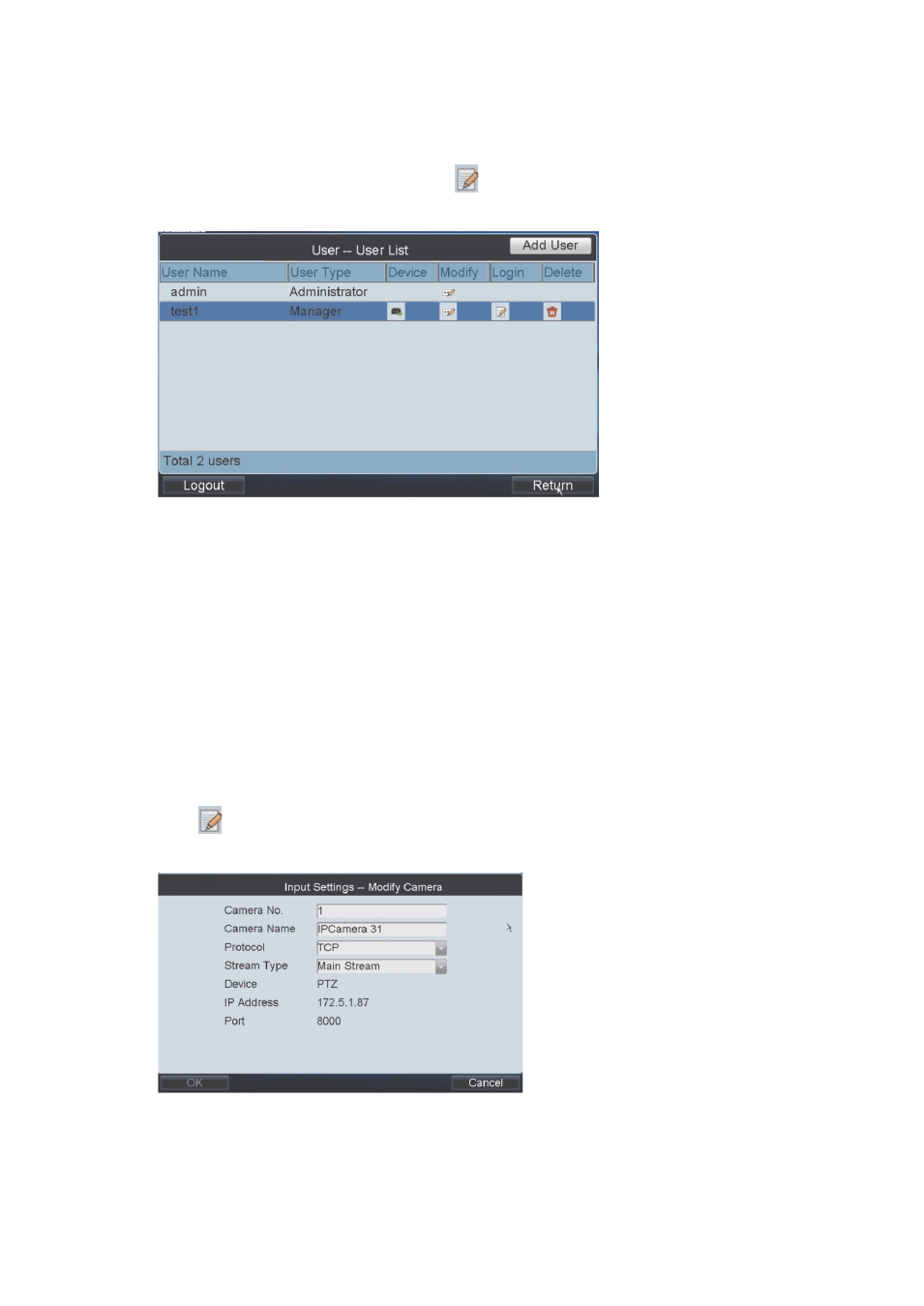

Switch user
1. In the Main menu, click User . The window appears. The list of Operators and
Customized users are listed.
2. In the “User-User List” window, click to directly access the user’s login
window.
Input settings
Use this menu to configure inputs such as cameras.
Managers can group cameras together so that the cameras can be called up to appear
together on a specific monitor. For example, one group can be the cameras viewing the
car park and another group the cameras viewing the building entrances.
You can set up to 16 camera groups.
Modify a camera’s information
1. In the Main menu, click Input . The “Input Settings-Input” window appears.
2. Click on the desired camera. The “Input Settings-Modify Camera” window
appears.
3. Enter the camera number, camera name, protocol, and stream type. Click OK .
Note: The camera number must be between 1 and 999,999.
