1

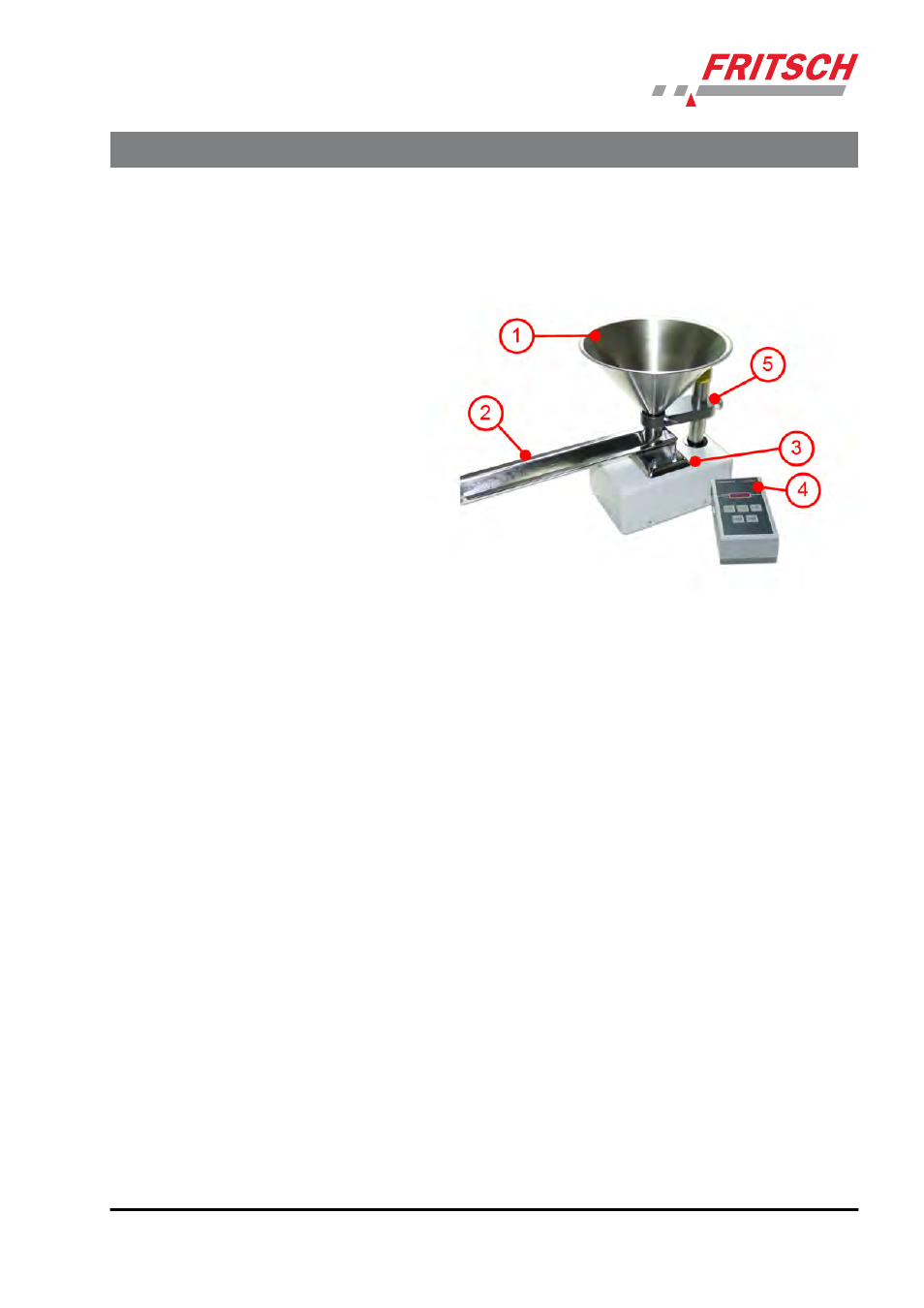

Basic set-up

The designations below are used with the corresponding numbers in the

following operating instructions.

1 Funnel

2 Channel

3 Basic device

4 Control unit

5 Height-adjustable funnel holder

Basic set-up

- 5 -
