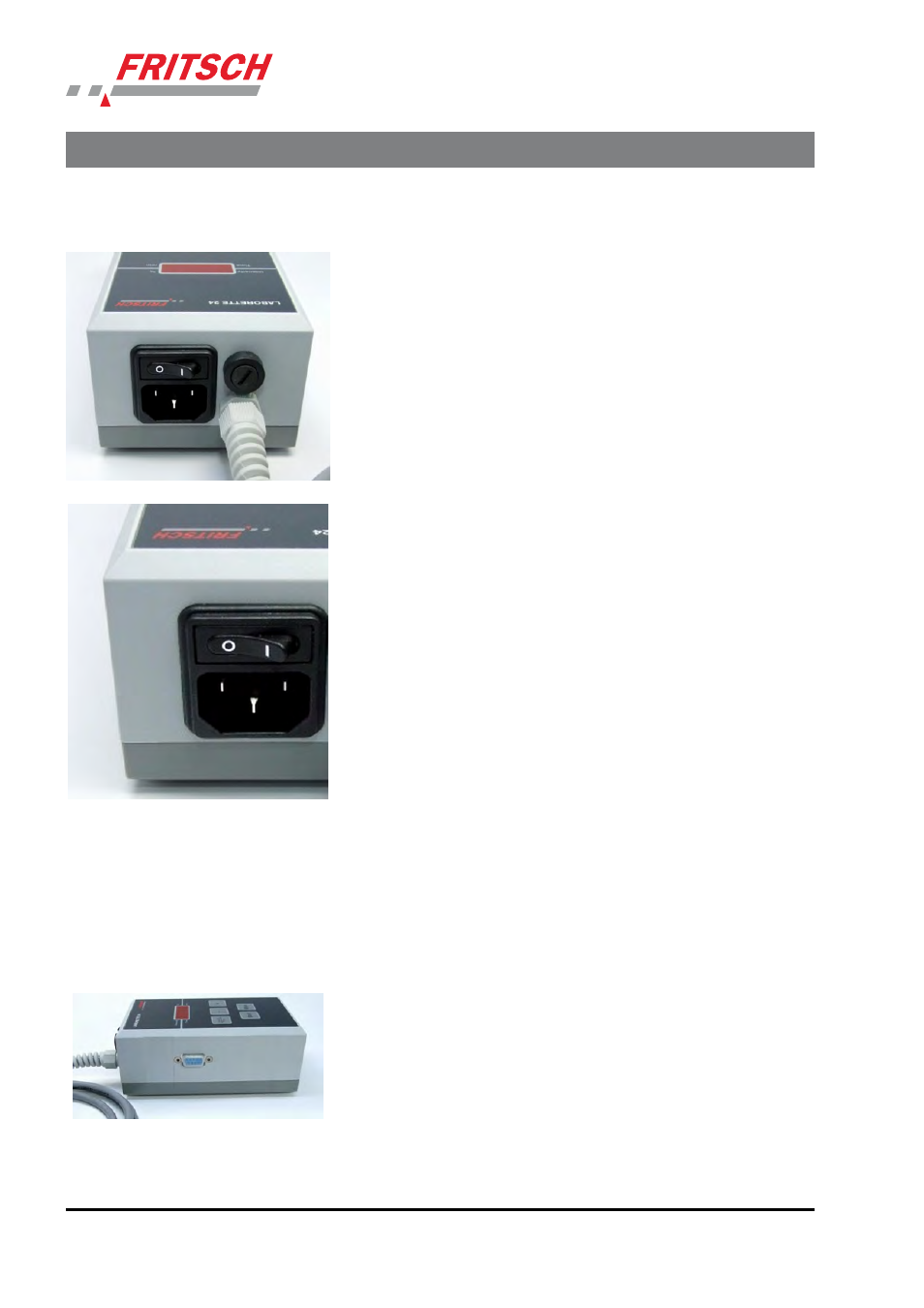

1 mains connection, 2 control box / feeder connection, 3 external interface connection – FRITSCH LABORETTE 24 with V-shaped channel User Manual
Page 18: Installation
4.5.1 Mains connection
The control box contains a mains connection socket with mains switch, a
device connection cable with plug and a T1.25A device fuse (5x20).
Set the mains switch to 0.
Connect the mains cable to the mains connection socket and then to the
mains supply.
4.5.2 Control box / feeder connection
The device connection cable for the feeder is firmly attached to the con-
trol box. Connect the device connection cable to the appropriate socket
of the vibratory feeder and lock the plug.
4.5.3 External interface connection
Remove the protective cap from the interface connection on the side.
There are two ways of connecting the 9-pin sub-D socket.
Either use the supplied control cable to simply switch the channel vibra-
tion on and off e.g. with the PULVERISETTE 14 variable speed rotor mill.
Or use a standard RS232 cable for the connection to the PC. Software
and interface protocols are available upon request.
Installation
- 18 -
