Configuration B Example 3
This example substitutes a pair of MH10f hubs for the single MH10 in the
previous diagram. Fiber optic cable is also substituted for the Cat‑5e cable
used between stage and FOH positions.
M
H
1
0
f
1
2
3
4
5
6
7
8
9
10
M
H
1
0
f
1
2
3
4
5
6
7
8
9
10
Stage Inputs 1-16
Stage Inputs 17-32
Stage Inputs 33-48
Stage Inputs 49-64
Stage Outputs 1-16
FOH Returns 1-16 Out
Pro16
Monitors 1
Pro16
Monitors 2
FOH Returns 1-16 In
Stage Outputs 17-32
Stage Outputs 33-48
Monitor Sends 17-32
Monitor Sends 33-48
Stage Outputs 49-64
ASI
Fiber Optic Cable
STAGE
FOH

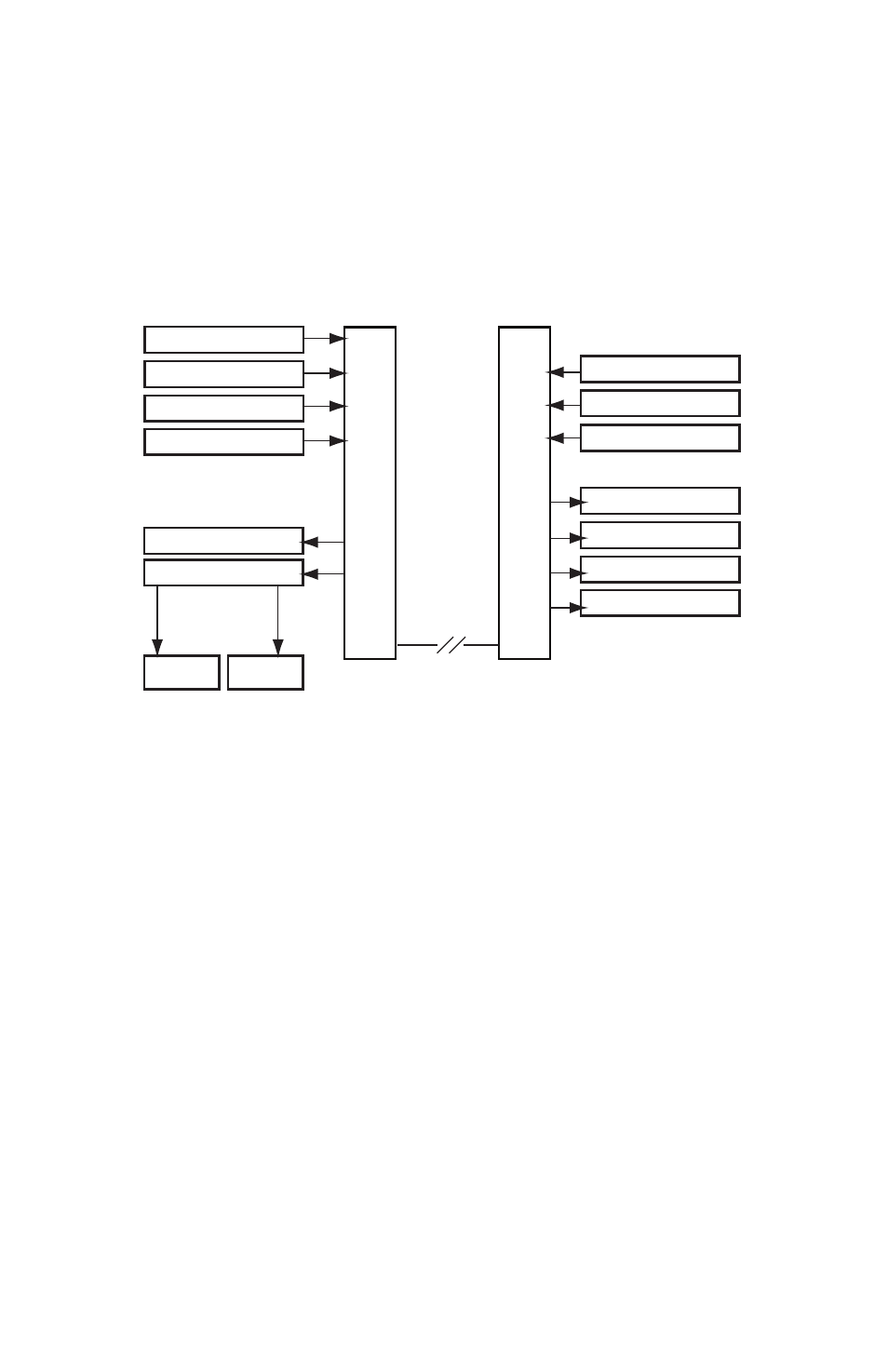

This variation of the 64x48 digital snake example uses two MH10f hubs and
fiber optic cabling.
Configuration C (Merge 1-8)
Manual Mode Configuration C is optimized for use with two MH10/MH10f
Merger Hubs, typically with each placed on one side of a digital snake.
In Manual Mode Configuration C (Merge 1‑8), ports 9 and 10 serve as a
redundant pair, with one port available as a backup when two MH10/MH10f
units are used. Audio from the A‑Net streams received at ports 1‑8 are
merged into a single stream, which is transmitted out port 8, as well as port 9
or 10. Audio data received at ports 9 and 10 are distributed out ports 1‑7. VDC
data from all ports are merged.
This configuration is ideal for creating a digital snake and is capable of
creating multiple digital splits of the stage source material for connection to
a monitor console as well as to recording and broadcast devices.
P N
ote
: Never connect more than one cable between ports 9 and 10 except
in Manual Mode Configuration C; doing so will result in a data loop.
