32-64 Channels - Console Cards & Analog
Up to three digital console cards from the same clock domain plus one AN-16/i v.2 Input Module may
be combined to create a hybrid system that uses both analog and digital inputs to the network. An SB4
System Bridge is used to combine the A-Net outputs so that they may be connected to the D800’s A-Net
input.
Since there can only be one clock source, one of the console cards will be connected to the AN-16/i v.2
Input Module’s A-N
et
I
N
to provide sync while the remaining console cards will be connected to the SB4
ports as seen in the previous system example. SB4 port 17-32 is unused in this configuration.
To configure this system:
• Connect A-N
et
O
ut
on console card #1 to A-N
et
I
N
on the AN-16/i v.2 Input Module.
• Set the AN-16/i v.2 Input Module’s S
lOt
r
ANge
switch to 17-32.
• Connect A-N
et
O
ut
on the AN-16/i v.2 Input Module to A-N
et
1-16 on the SB4.
• Leave the A-N
et
17-32 port on the SB4 unconnected. (Channels 1-32 are provided by the
AN-16/i v.2)
• Connect A-N
et
O
ut
on console card #2 to A-N
et
33-48 on the SB4.
• Connect A-N
et
O
ut
on console card #3 to A-N
et
49-64 on the SB4.
• Connect the A-N
et
B
rIdge
port on the front of the SB4 to A-N
et
I
N
on the D800.

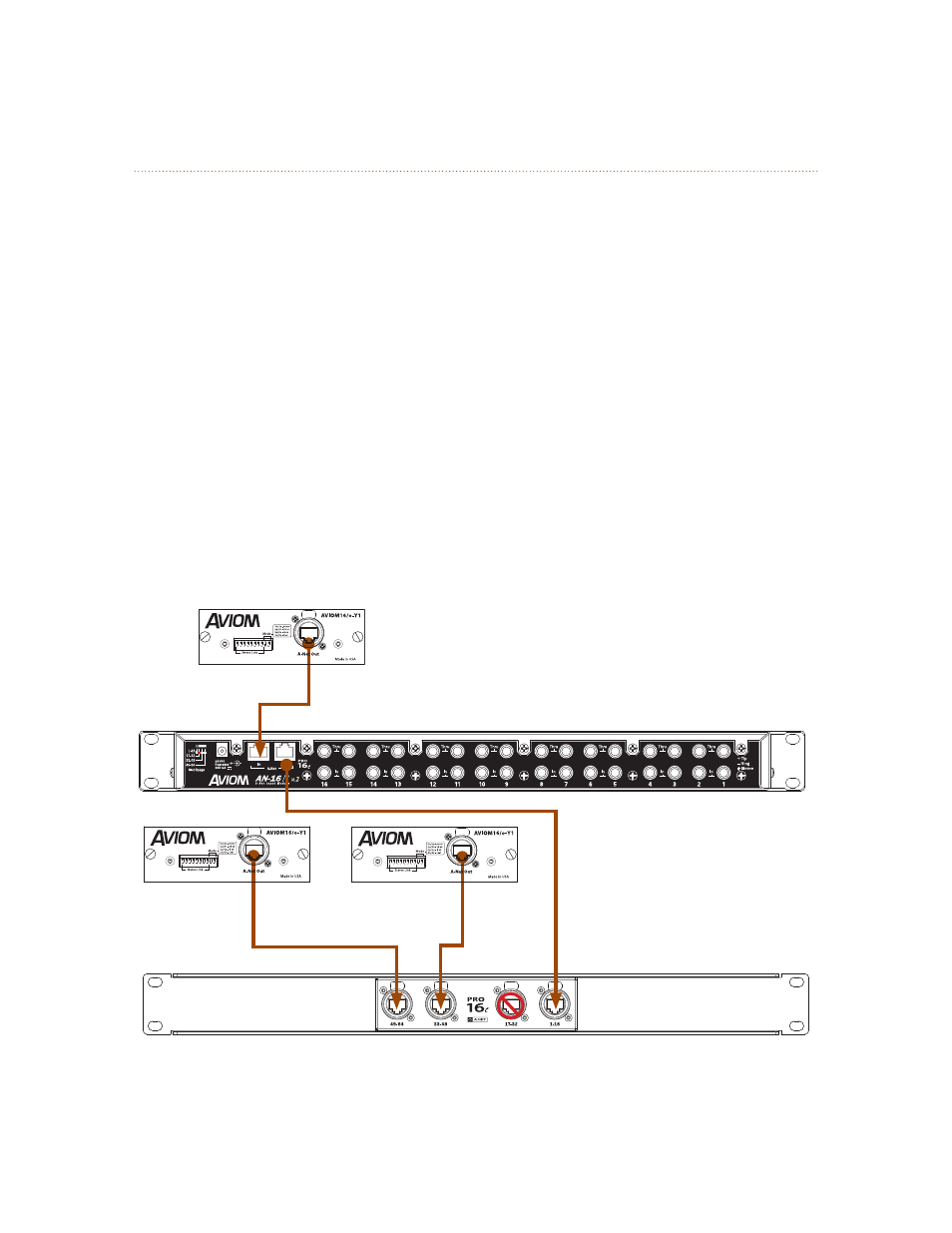

SB4 Rear Panel Setup
Three digital console cards and 16 channels of analog inputs combine to create a 64-channel network.
If the digital console cards are installed in different consoles, the consoles must be clocked together using
Word Clock.
