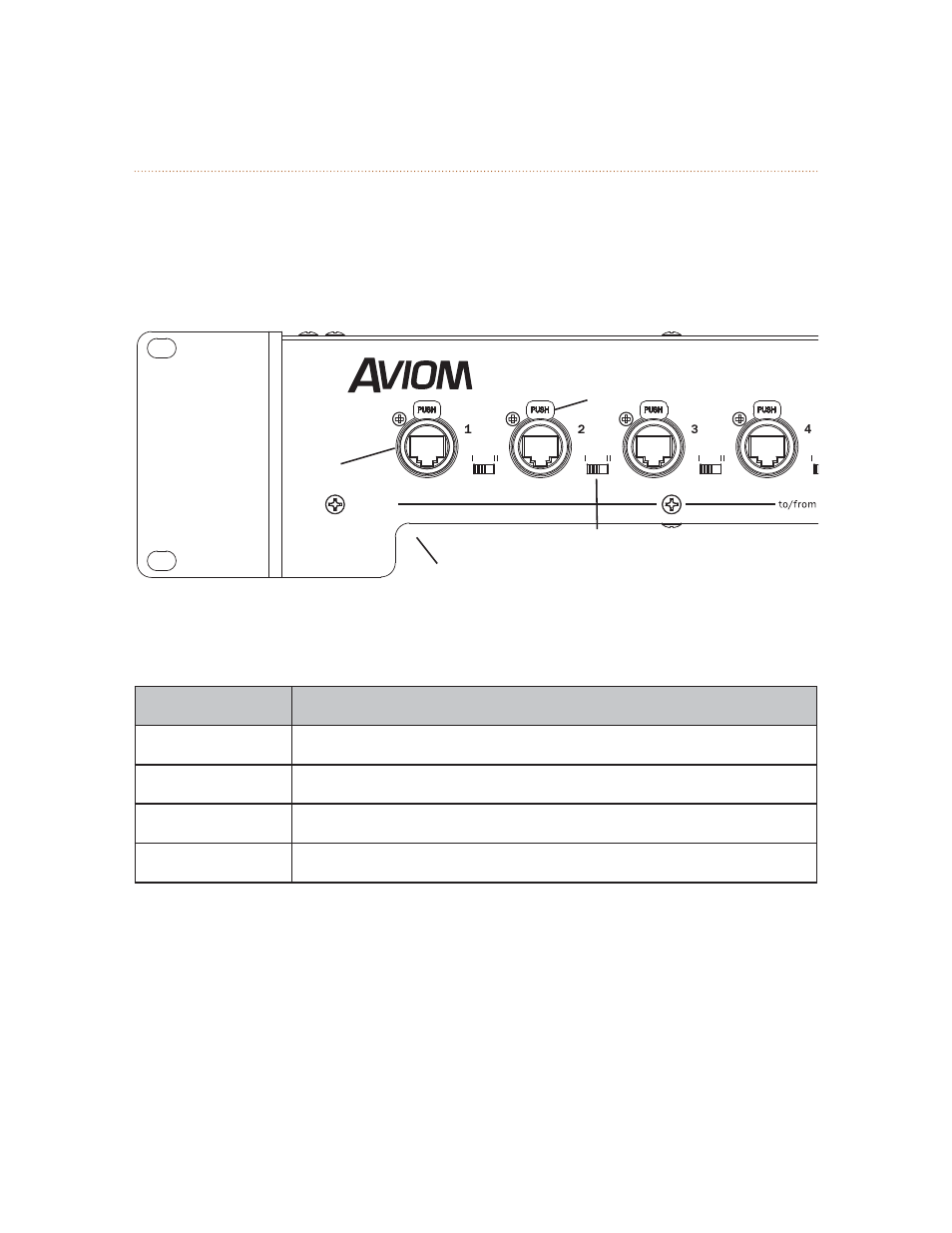

D800 Front Panel
Front panel features described in this section are found on both the standard and Dante
versions of the D800 A-Net Distributor.




F
uNctION
1 A-Net outputs 1-8, with DC power for Personal Mixers
2 Locking dual Cat-5 connector; press tab to release
3 Pro16 (I) or Pro16e (II) mode switch
4 Cable pass-through
