32-64 Channels - Console Card Inputs
Up to four digital console cards from the same clock domain may be connected to a D800 by connecting
the cards to an SB4 System Bridge. The A-Net streams connected to the System Bridge will be merged
into a single Pro16e data stream by the D800 A-Net Distributor. If the digital console cards are installed in
different consoles, the consoles must be clocked together using Word Clock.
To configure this system:
• Connect A-N
et
O
ut
on console card #1 to A-N
et
1-16 on the SB4 System Bridge.
• Connect A-N
et
O
ut
on console card #2 to A-N
et
17-32 on the SB4.
• Connect A-N
et
O
ut
on console card #3 to A-N
et
33-48 on the SB4.
• Connect A-N
et
O
ut
on console card #4 to A-N
et
49-64 on the SB4.
• Connect the A-N
et
B
rIdge
port on the front of the SB4 to A-N
et
I
N
on the D800.

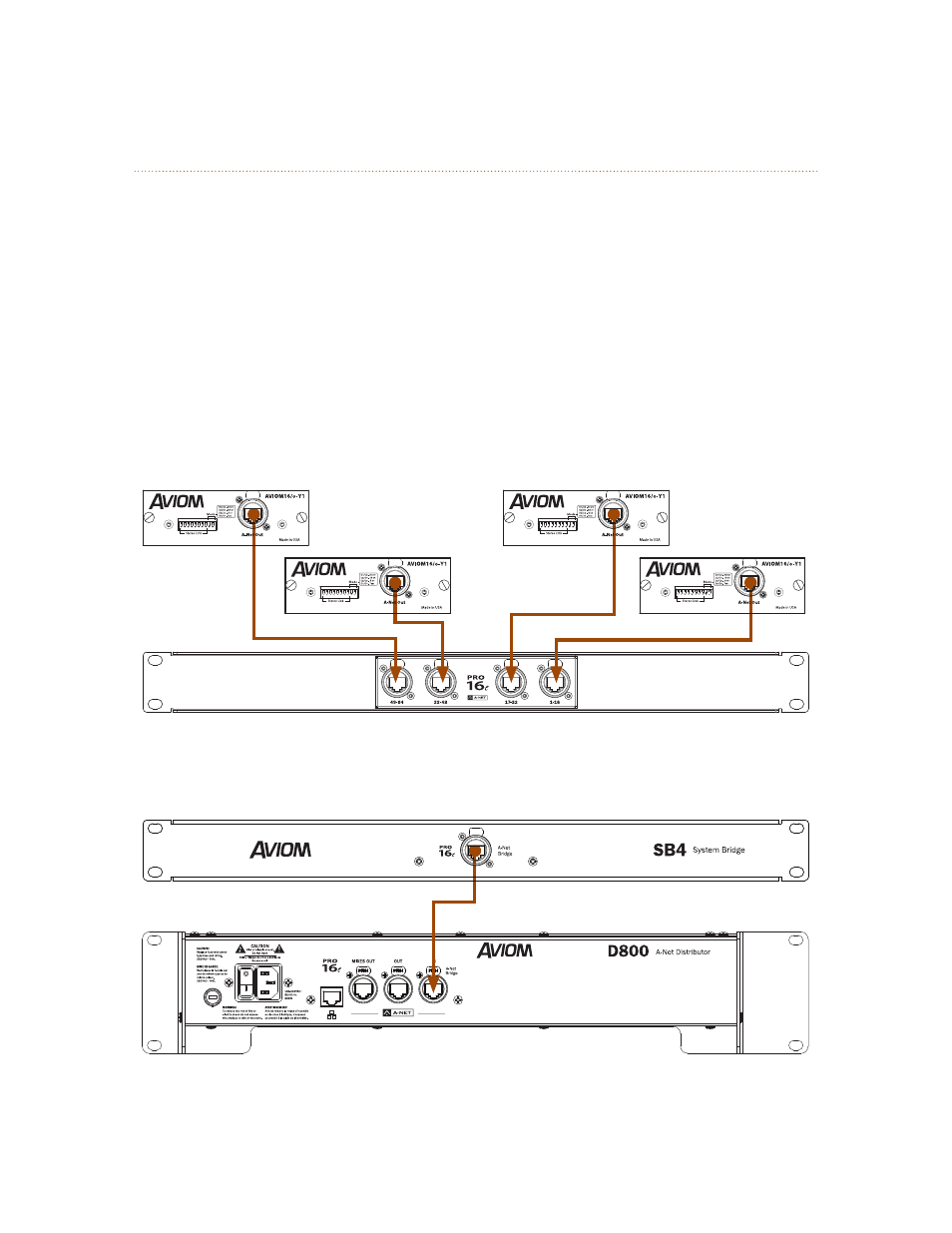

SB4 Rear Panel Setup
Four digital console cards combine to create a 64-channel network.
SB4 Front Panel Setup
Connect the SB4 System Bridge to the D800.
