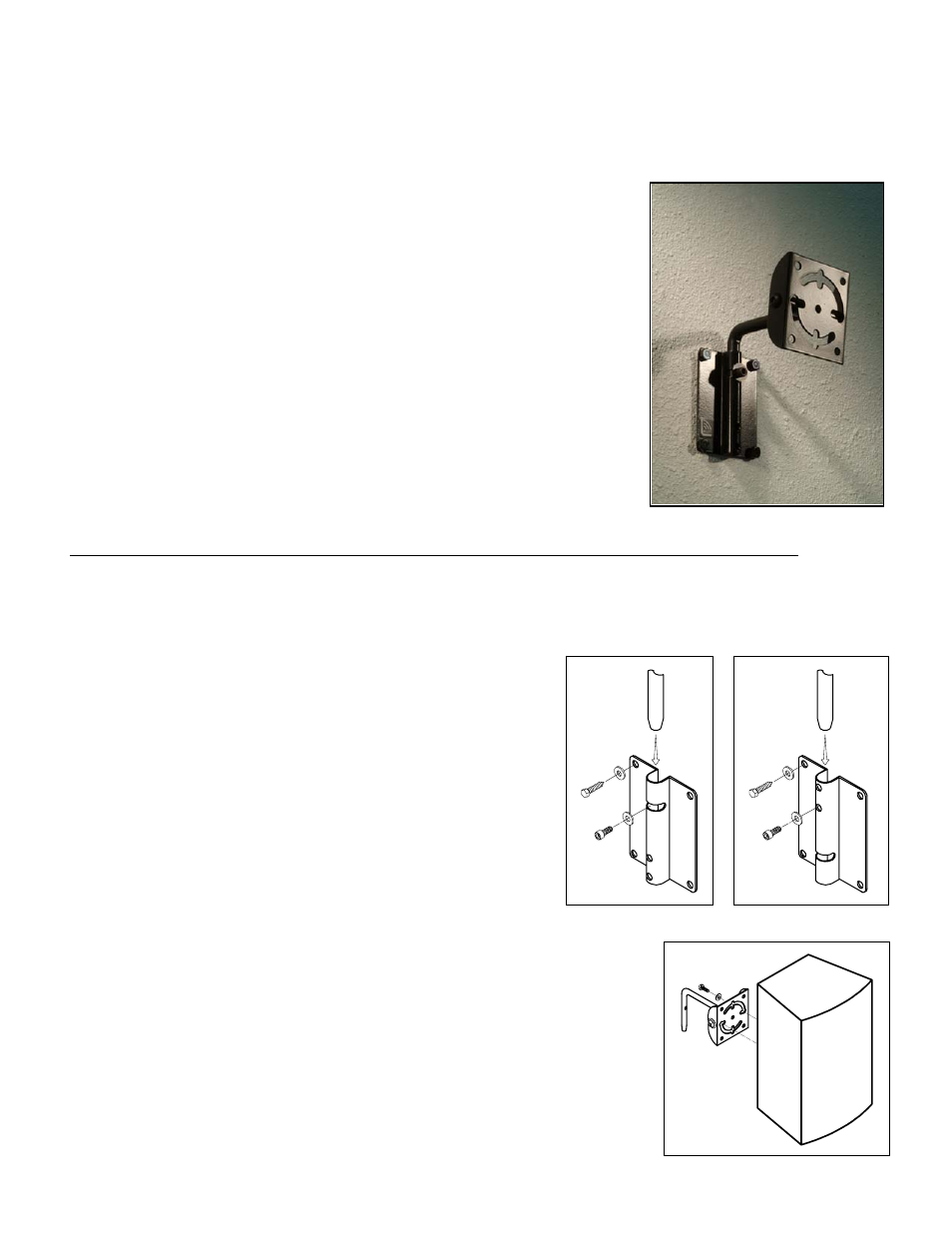

Figure 1A Figure 1B
MultiMount MM-010
Universal Wall and Ceiling Mount Installation Instructions
Thank you for selecting the MultiMount MM-010 speaker-mounting kit. This kit
contains one pair of speaker mounts that position speakers weighing up to 25 lbs
(11.5 kg) from most wall and ceiling structures. In addition, this design may be
attached to the top, back or bottom of most speaker enclosures.
Warning:
Mounting and/or rigging loudspeakers requires experienced professionals.
Improperly installed loudspeakers can result in property damage,
personal injury, death and/or liability to the installing contractor.
To assure a trouble free installation, read through and follow these instructions
carefully before beginning . If you have doubts about the integrity of the structure
you are mounting to or you are not sure about the proper hardware to use,
consult a structural and/or hardware specialist.
Be sure that all of the following items are included in this kit before
proceeding:
Item#: Qty. Description Item#: Qty. Description
1. 2 Pcs. Mounting plate 5. 2 Pcs. Support arm assembly
2. 4 Pcs. Screw, metric, M5x8, Silver 6. 6 Pcs. Flat washer, 1/4”
3. 4 Pcs. Screw, 1/4-20 x ½” 7. 4 Pcs. Star lock washer, 1/4”
4. 2 Pcs. Socket screw, ¼-20 x ½”
Note to Installing contractor:
Due to the wide variety of wall structures, materials and
mounting methods, these instructions assume that the
installing contractor will exercise proper judgment in selecting
the mounting area and hardware.
As a guide, the installation, when complete should be capable
of supporting 5 to 10 times the actual applied load. Also, use
a back up safety system such as a safety cable.
Step 1:
A. Wall Mount
To enable the pan angle option, attach the wall mounting
plate with the open center slot towards the ceiling using the
appropriate hardware for the wall structure (Figure 1A).
To disable the pan angle option, attach the wall mounting plate to the
wall with the open center slot towards the floor using the appropriate
hardware for the wall structure (Figure 1B).
B. Ceiling Mount:
Predetermine the desired direction of the speaker, and then mount the wall
mounting plate with the open center slot towards the direction of the
speaker.
Figure 2
