MultiMount
™
MM-022
Universal Wall and Ceiling Mount Installation Instructions

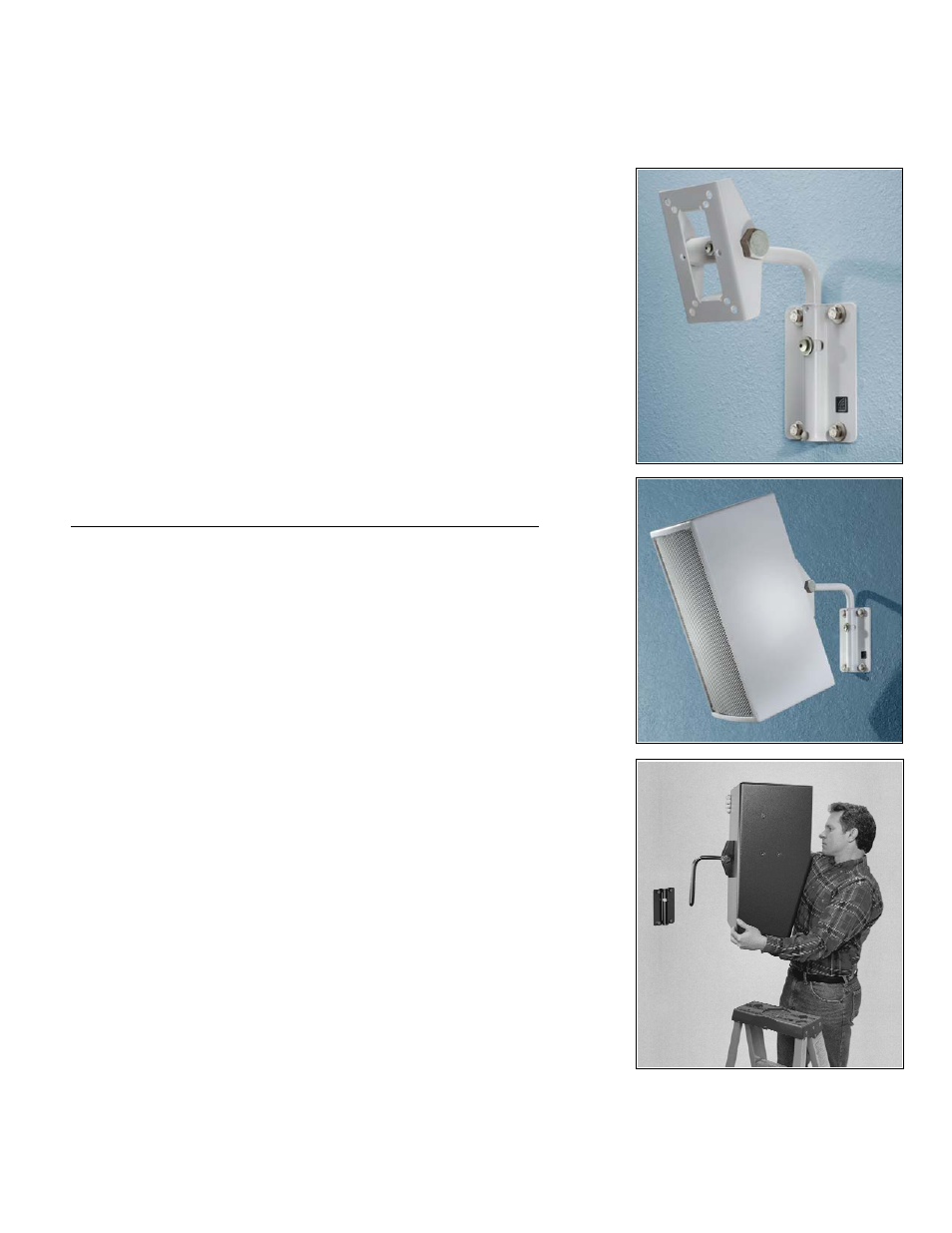

Thank you for selecting the MultiMount™ MM-022 speaker mounting kit. This
mounting kit contains one speaker mount that positions speakers weighing up
to 60 lbs/27 kg. from most wall and ceiling structures. The MM-022 simplifies
and speeds up wall and ceiling speaker installations while achieving a very
versatile range of speaker positioning.
Warning:
Mounting and/or rigging loudspeakers requires experienced professionals.
Improperly installed loudspeakers can result in property damage,
personal injury, death and/or liability to the installing contractor.
To assure a trouble free installation, read through and follow these instructions
carefully before beginning. If you have doubts about the integrity of the
structure you are mounting to or you are not sure about the proper hardware
to use, consult a structural and/or hardware specialist.
Be sure that all of the following items are included in this kit before
proceeding:
Item #: Qty Description Item #: Qty Description
1. 1 pc. Mounting plate 5. 1 pc. 5/16" flat washer
2. 1 pc. Speaker adapter plate 6. 1 pc. 5/16 x 1 socket crew
3. 1 pc. Support arm 7. 2 pcs. 3/4 x 1.00" Bolt
4. 1 pc. 1/4”dia. x 3/4” stop pin 8. 2 pcs. 3/4" Ext. lock washer
Note to installing contractor:
Due to the wide variety of wall structures, materials and mounting methods,
these instructions assume that the installing contractor will exercise proper
judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of supporting 5
to 10 times the actual applied load. Also, use a back up safety system such as a
safety cable.
Step 1.
(a) For wall mounting:
Attach the mounting plate to the wall with the open center slot towards the
ceiling using the appropriate hardware for the application (Figure 1). If in
doubt, consult a local hardware specialist. Push the stop pin into the lower
center hole of the wall plate (Figure 1).
(b) For ceiling mounting:
Predetermine the desired direction of the speaker. Attach the mounting plate to
the ceiling structure with the open center slot towards the speaker using the
appropriate hardware for the application. Push the stop pin into the lower
center hole of the wall plate (Figure 1).
Step 2.
Attach the speaker adapter plate to the appropriate mounting holes of the speaker using the manufacturer’s
suggested screws and washers. For vertically oriented speaker installations, attach per figure 2A. For horizontal
installations, attach per figure 2B. Tighten these fasteners permanently. If threaded inserts are not included on the
speaker, consult the speaker manufacturer for proper mounting procedures.
