Industrial Injection FORD 6.7L Compound Turbo - Manual (Page 21)

Pg. 21
Step 13:
Install the aftermarket up-pipe provided in the kit using the factory 13mm nuts that where used to hold
the factory up-pipe to the exhaust manifold.
Connect the factory EGT sensor to the aftermarket up-pipe using a 16mm wrench.
Using a 7/16 wrench or deep socket you can re-install and tighten the V-Band clamp to the upper end of
the up-pipe
Step 14:

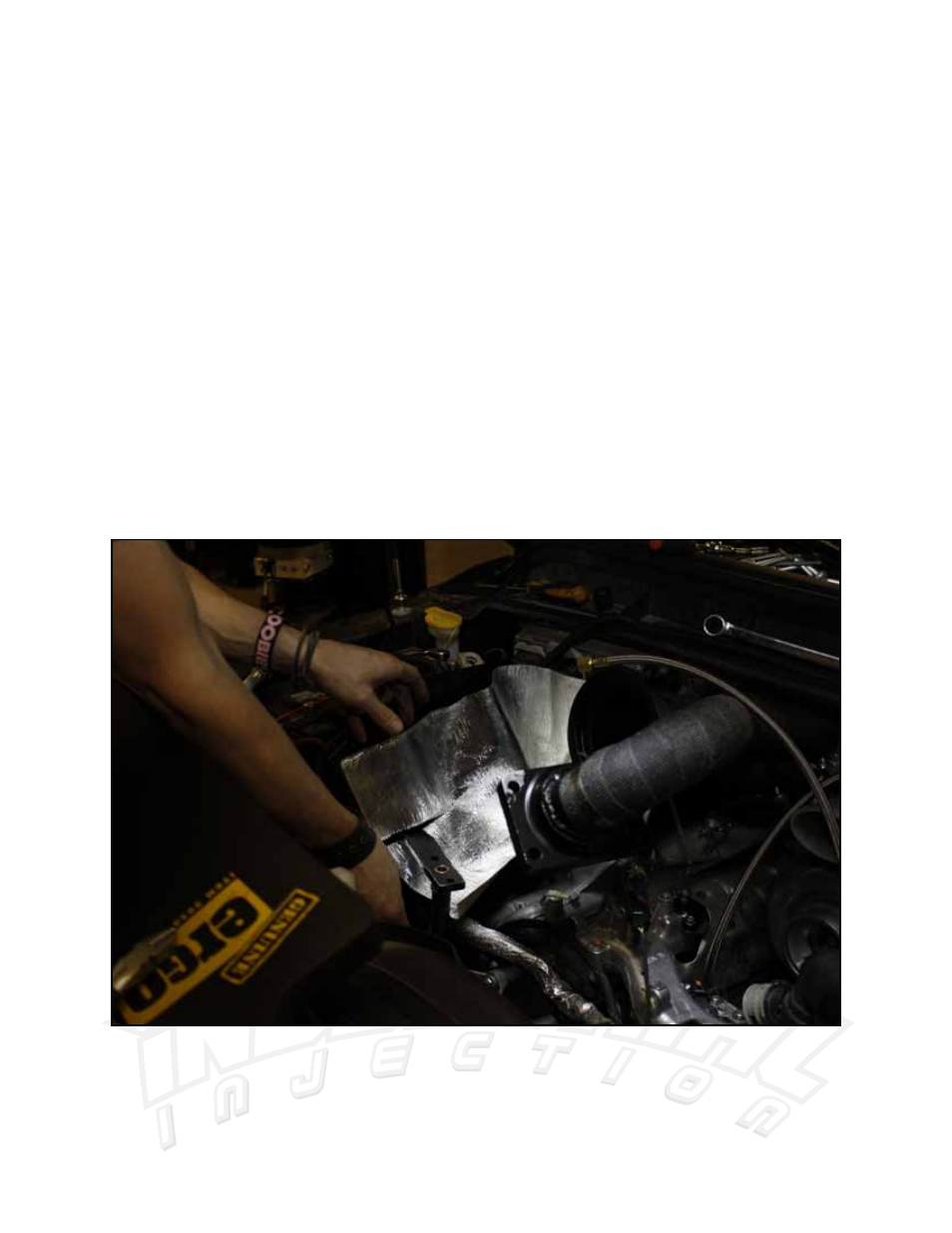

With the up-pipe in, install the provided head shield. You will see a reflective sheet of heat shield prod-
uct in the kit, it has a sticky back and will be used to line the upper side of the metal heat shield. Com-
plete this before putting the heat shield into the engine bay. Use a razor knife to trim accordingly.
