Industrial Injection LLY Dual CP3 - Manual

Dual Fueler CP3 Pump Kit for LLY Dual Fueler CP3 Pump Kit for LLY
8
Dual Fueler CP3 Pump Kit
Installation Guide for LLY

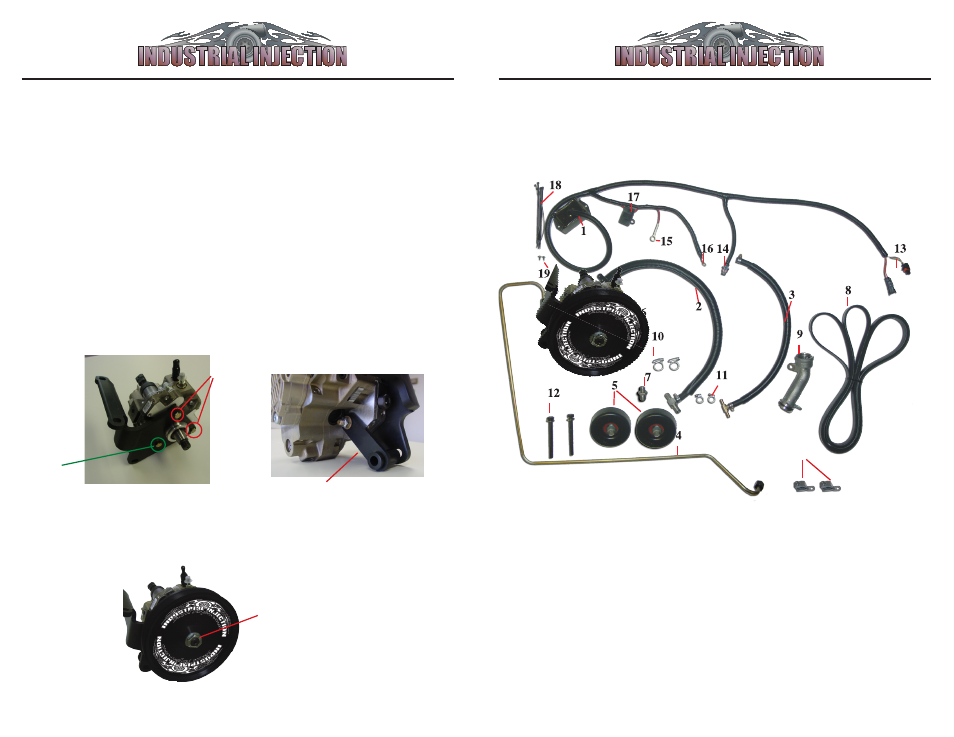

Supplied Parts:
Rev: 07/06, v1.0
1. Control Module
2. 3/8” Inlet Fuel Line with Attached 1/2” x
1/2” x 3/8” ‘T’ Connector
3. 5/16” Return Fuel Line with Attached
5/16” x 5/16” x 5/16” ‘T’ Connector
4. High Pressure Steel Fuel Supply Line
5. two Idler Pullys with attached parts
6. Assembled CP3 Pump, Wheel, and
bracket
7. Fuel Rail Fitting
8. #6 Rib Belt
9. Oil Filler Tube 10. 2 #6 hose Clamps
11. 6 #4 hose Clamps (4 already on hoses)
12. 2 10x1.5x100 bolts with 2 washers
13. Control Module Internal Engine Pump
connectors
14. Control Module Dual Fueler Connector
15. Control Module +12V (Red Wire)
16. Control Module Ground (Black Wire)
17. Control Module Fuse 10A
18. Control Module Harness Tie Straps
19. Control Module Mounting Screws
20. two Fuel Supply Line Mounting Brackets
Please note these part numbers, they will be used in installation descriptions!
Appendix A: Troubleshooting
Engine noisy - Too Much Fuel Pressure
Cause: Check fuse is good and in controller’s fuse holder, and
all power connections are secure, including connectors for both
pumps are fully plugged in.
Appendix B: Fuel Pump with Bracket Assembly
3. Pully on pump by placing pully on
pump with, washer and nut, and torque
fuel injection pump drive pully nut to 52
lb ft.
1. Install Main Bracket and
insert 3 supplied bolts. Make
sure the
longer bolt L and 2
shorter bolts S are used as
shown.
L
S
2. Install Smaller Support
Bracket and secure with washer
and nut on the back of the pump
as shown. Secure other 2 bolts S
with washer and nut on the back
of the pump.
Smaller Support Bracket
drive pully nut
20
Industrial Injection
1201 S. 700W.
SLC, UT 84104
www.industrialinjection.com
Technical Support: 800-955-0476
