Read
Autonomous Configuration Tool v1.0 User Guide 20
Read
Once an autonomous configuration has been applied and youʼve chosen to start reading
you can use the Read tab to display the output. This function is simply listening on the
already established connection to the reader and displaying the results.
The Read tab has no control over the connected reader, it is display only. In order to
stop reading you must:
  Turn off the reader (cut power or ground the SHUTDOWN line)
 
If a GPI read trigger is enabled, set the GPI to LOW.

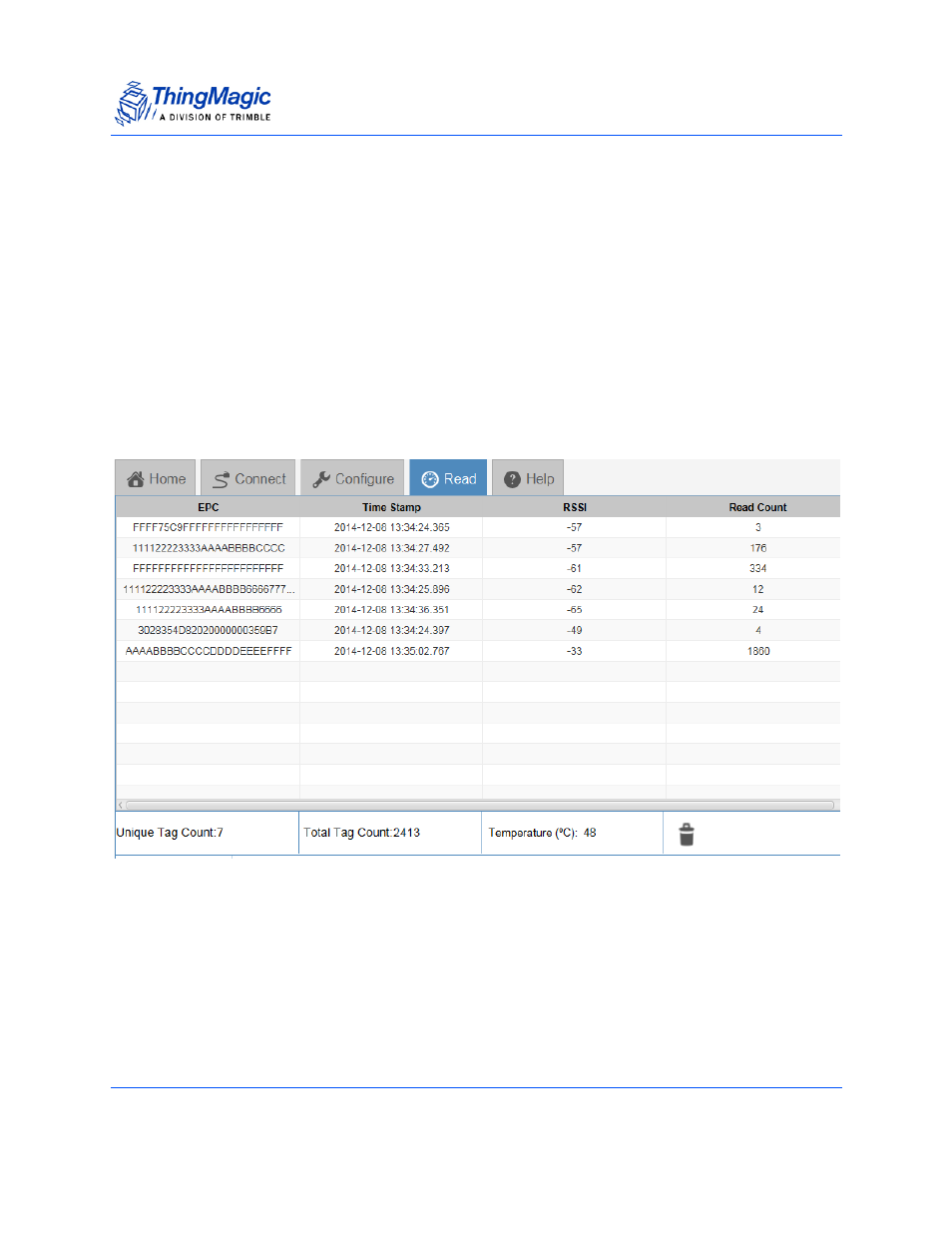

Figure 4: Default Tag Results Display
Tag Results Grid
As shown in Figure 4, the default displayed tag results show the following columns of
data:
 
EPC - The EPC ID of the tag, typically 96-bits of data shown in Hex.
