ADS Eureka Digital System User Manual
38
Tracker
The data tracker display develops throughout the correlation process.
Over time, the line solidifies and changes color to indicate confidence in
the correlation peak.
Tracker Colors
The colors of the dots represent the following:
 Black No confidence in correlation peak
 Red Low confidence in correlation peak
 Yellow Medium confidence in correlation peak
 Green High confidence in correlation peak
.

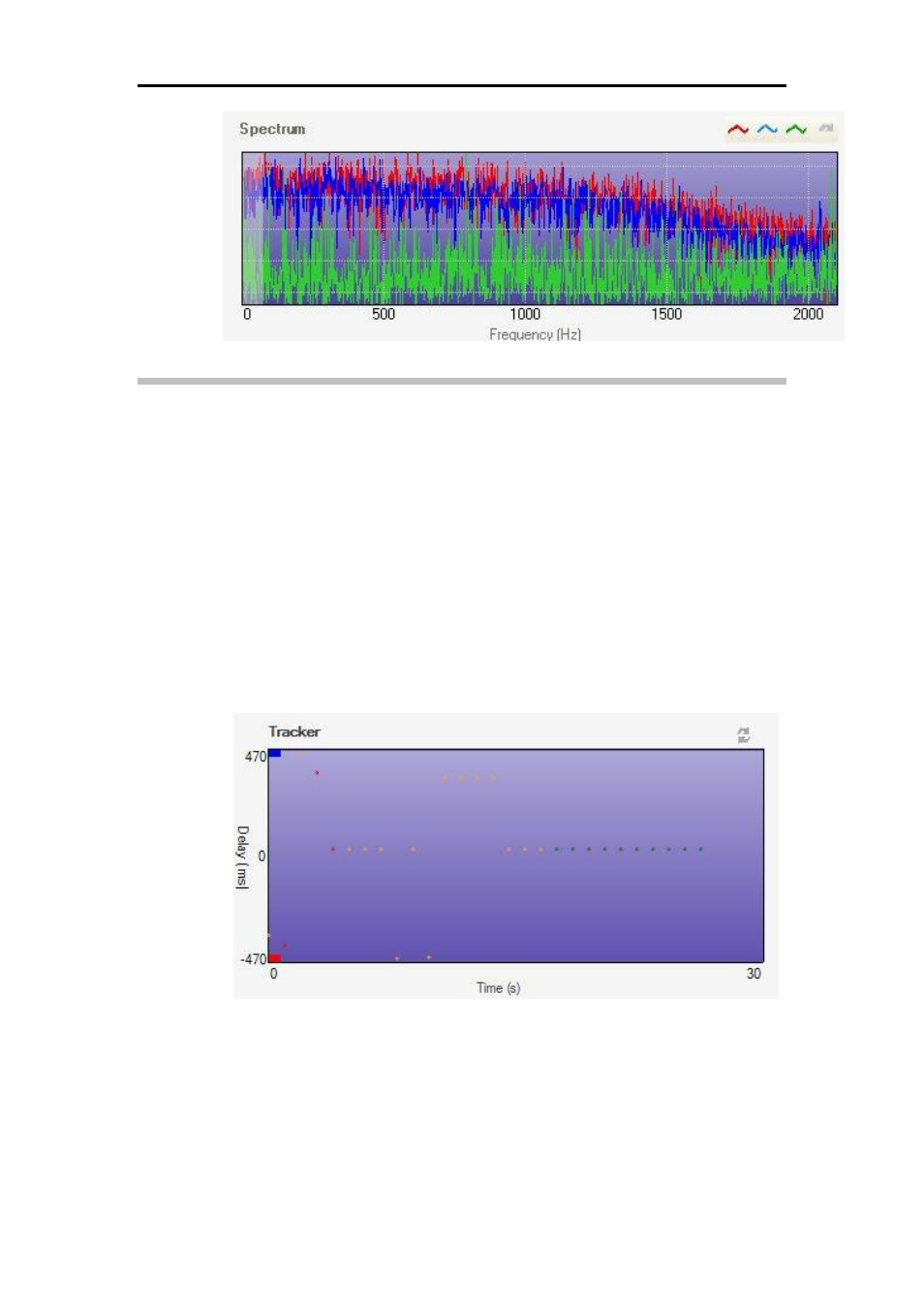

Initial Tracker display
