5. O
PERATION
W
HEATHEART
- R S
ERIES
A
UGERS
5.2. O
PERATOR
C
ONTROLS
R8-36, R8-41, R8-46, R8-51, R10-36, R10-41, & R10-51
22
30758 R1
5.2. OPERATOR CONTROLS

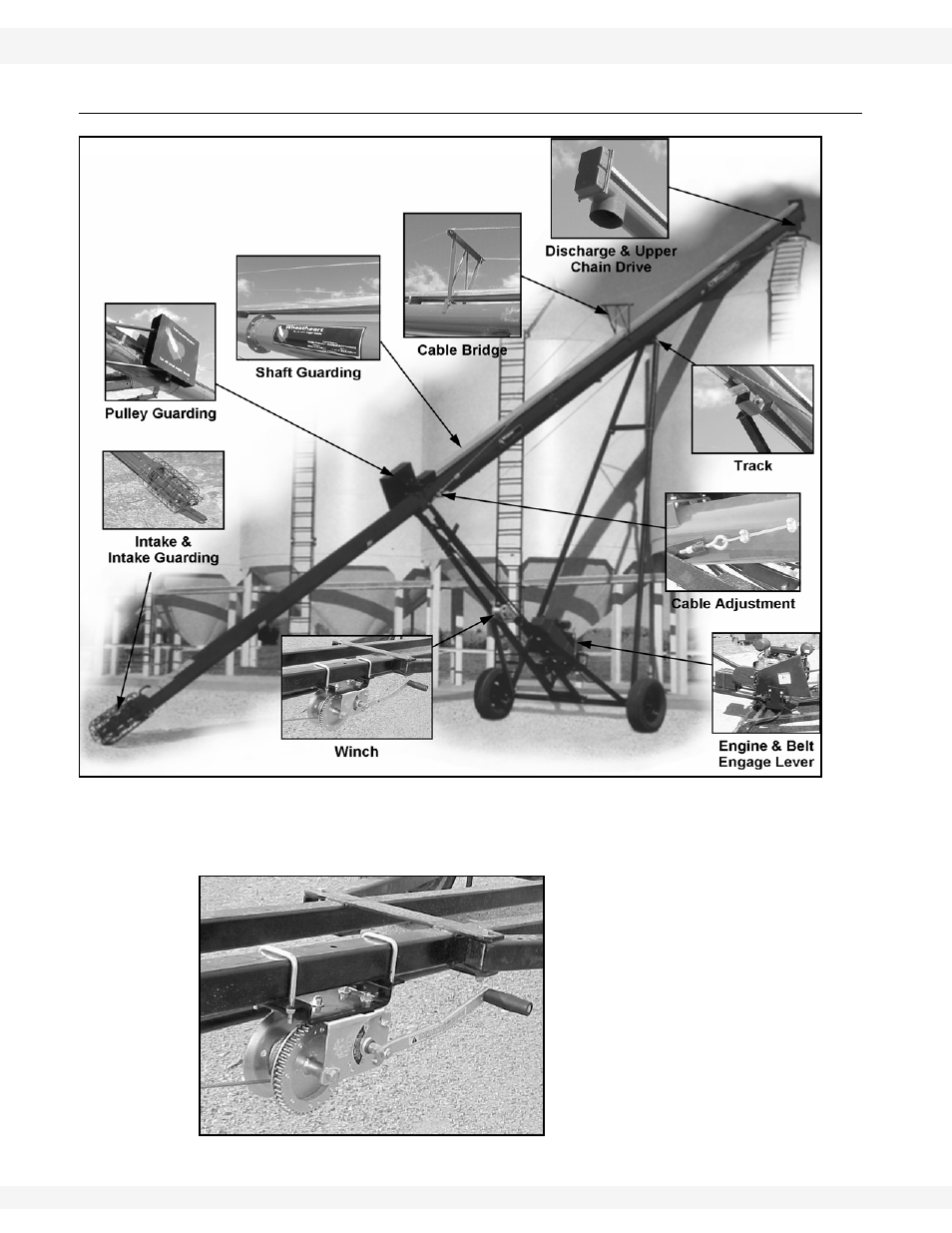

Figure 5.1
The belt engaging lever, winch, and engine are located as shown in Figure 5.2.
Please refer to engine manual for engine controls.
Figure 5.2 Winch
