Page 7
Rev 6.0/5-14
5
MRTALPR4-DC: #35057
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

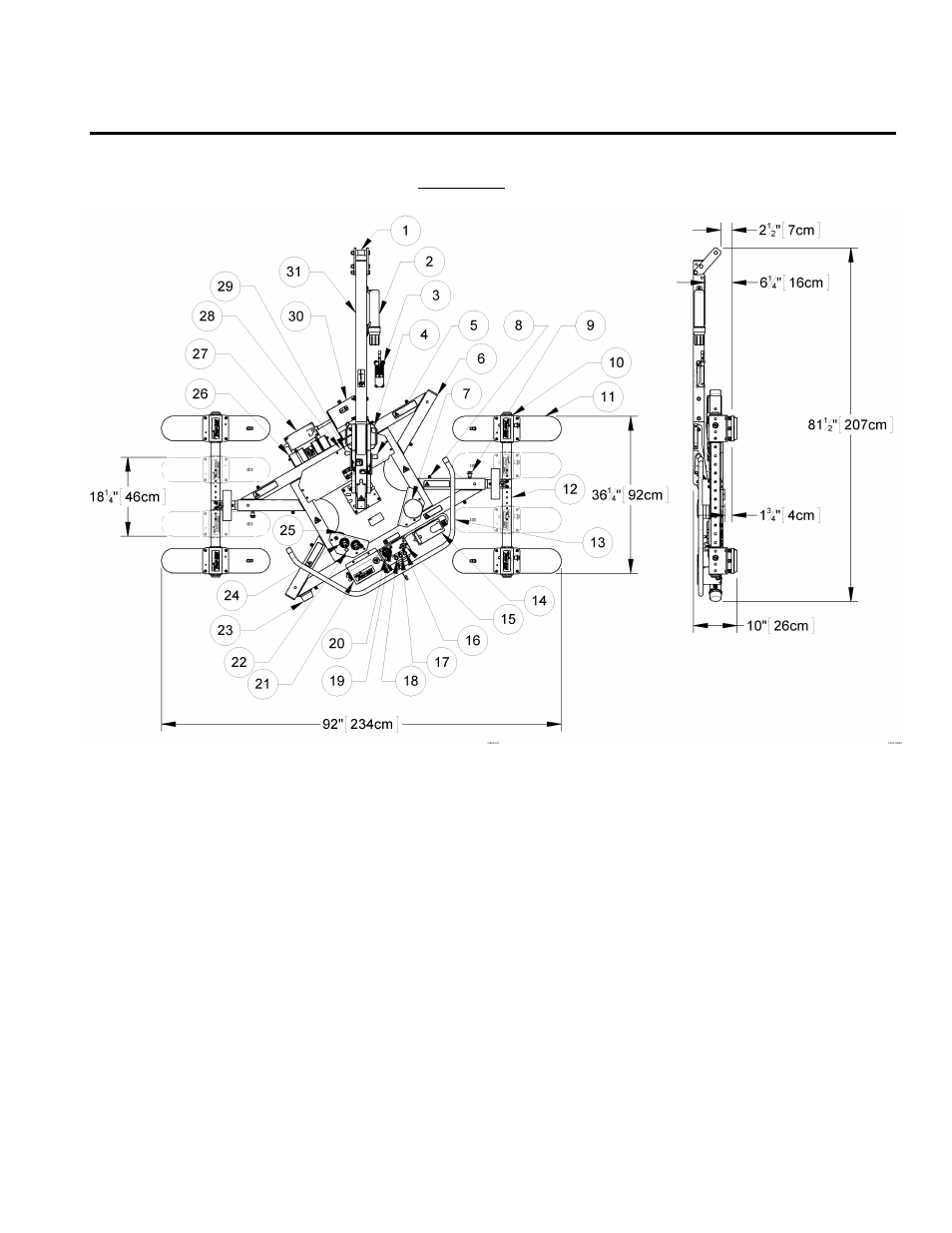

Standard MRTALPR4FS625DC shown with Remote Control System option.
1 LIFT SPOOL
11 VACUUM PAD
22 VACUUM LIFT LIGHT
2 INSTRUCTION CANISTER
12 PAD FRAME T-ARM ASSEMBLY 23 RED STROBE LIGHT
3 RADIO TRANSMITTER (optional) 13 CONTROL HANDLE
24 VACUUM GAUGES
4 CONTROL HANDLE
14 RADIO RECEIVER (optional)
25 LOW VACUUM WARNING BUZZER
5 ROTATION RELEASE LEVER
15 POWER SWITCH
26 VACUUM RESERVE TANK
6 PAD FRAME
16 RELEASE BUTTON
27 BATTERY CHARGER
7 AMBER STROBE LIGHT (optional) 17 APPLY BUTTON
28 Cover for AIR FILTERS
8 QUICK CONNECTOR
18 ENABLE BUTTON
and VACUUM SWITCHES
9 COTTERLESS HITCH PIN
19 BATTERY TEST BUTTON
29 TILT RELEASE LEVER
10 SLIDING PAD MOUNT
20 BATTERY GAUGE
30 BATTERY
21 Cover for VACUUM PUMP
31 LIFT BAR
