To Connect/Disconnect Vacuum Hoses
The vacuum hose for each vacuum pad is connected to or
disconnected from the lifter's vacuum system by means of a
quick connector. To connect the vacuum hose, push the male
and female ends of the connector together until they lock. To
disconnect the vacuum hose, move the release ring on the
female end away from the male end until the connector
separates.
WARNING: Make sure vacuum hoses are coiled or
routed to avoid damage during
rotation or tilt.
Make sure all vacuum hoses are secure and routed to avoid being punctured, pinched, kinked,
entangled, abraded or otherwise damaged while the lifter is in operation.
Note: Whenever a vacuum hose is disconnected from the vacuum system, the corresponding
vacuum pad does not contribute to the load capacity, whether or not the pad is mounted on the
pad frame.

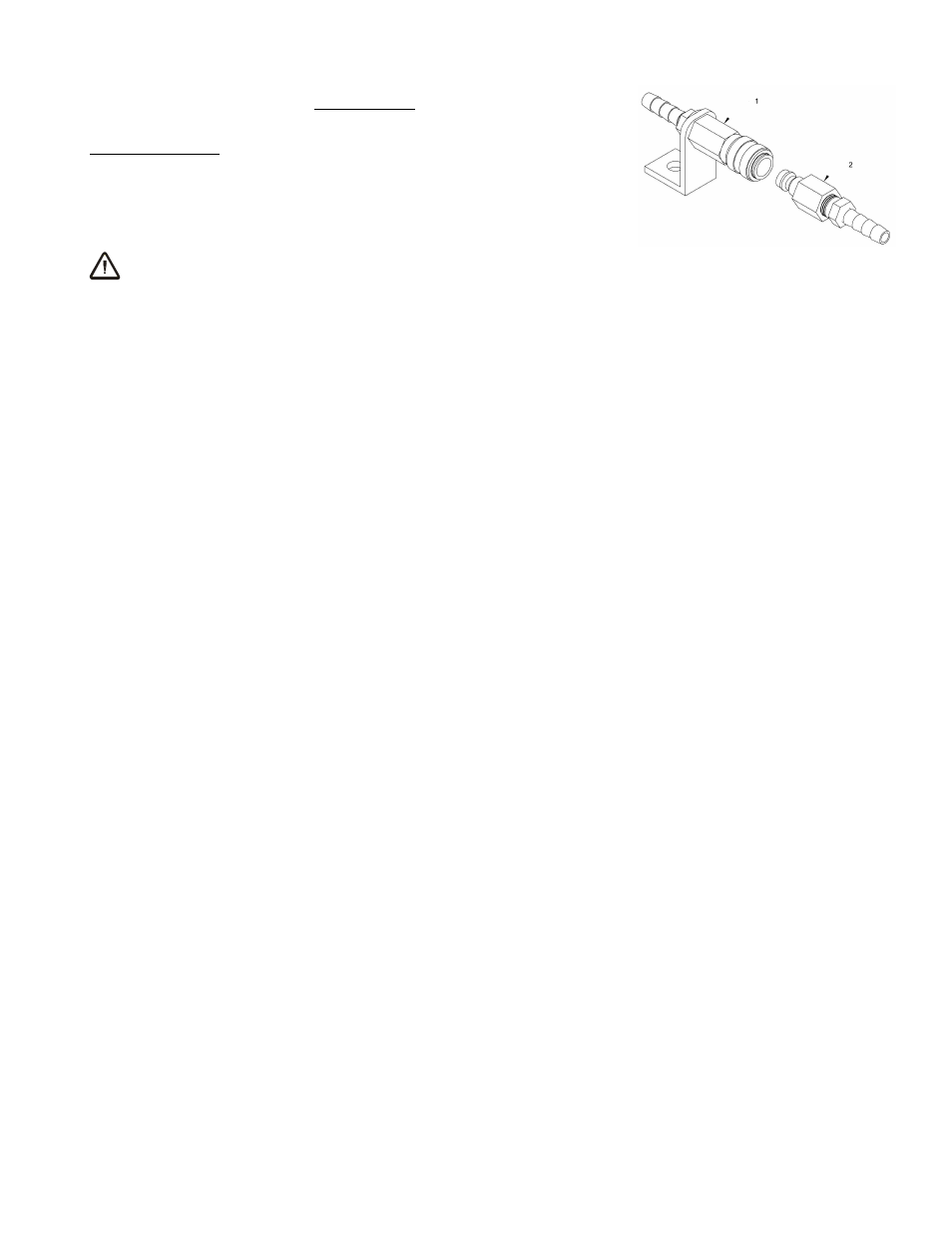

QUICK CONNECTOR
1 FEMALE END
2 MALE END
