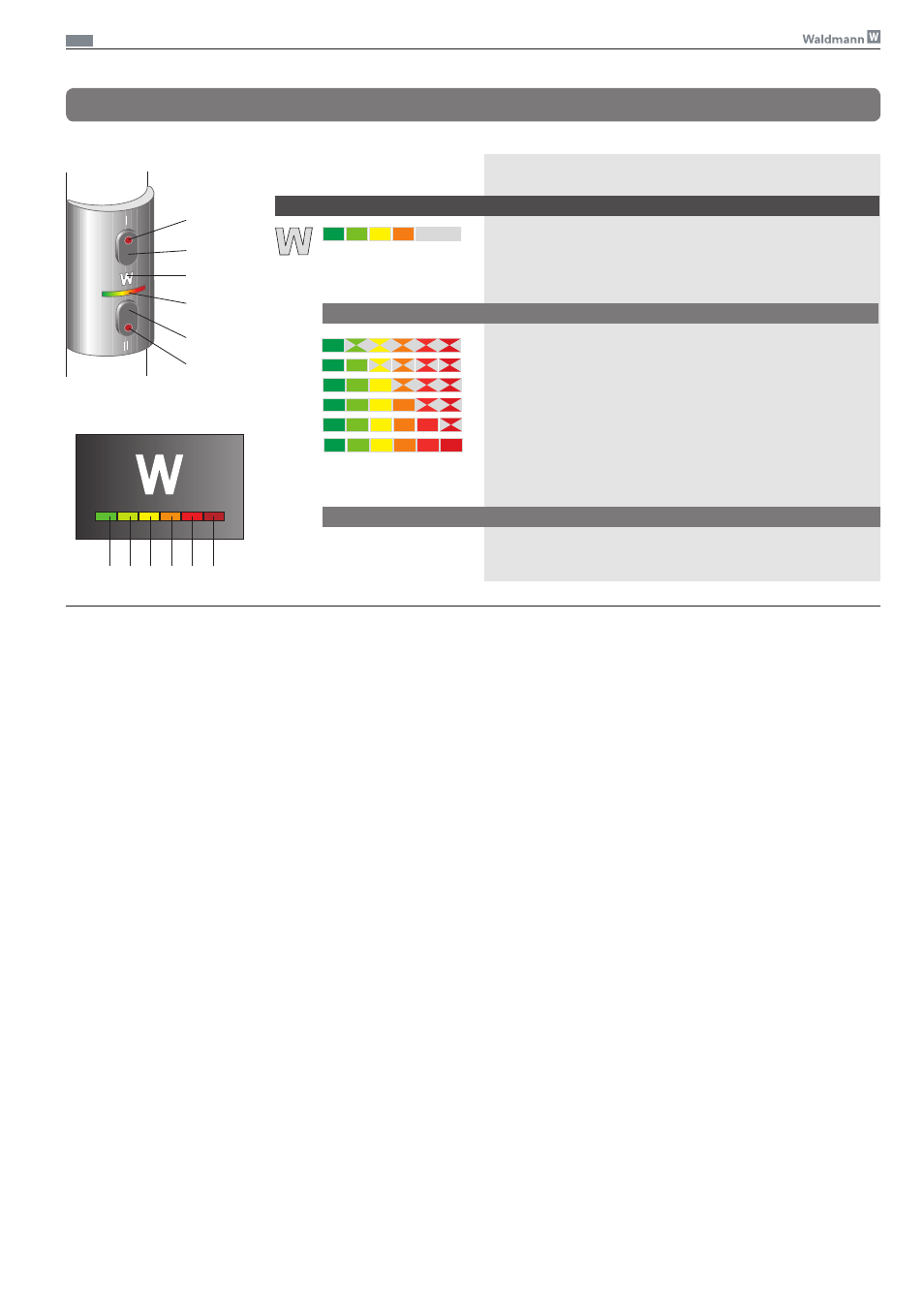

Operating Manual Light Control „PULSE HFMD - Vers. IV“ ENG
LED 1 2 3 4 5 6
Fig. 6
Change basic settings - Setting level 4
Activate setting level 4 (function 4.1 - 4.6)
Logo is off
Lightbar LED 1+2+3+4
Actuation Display
Press both keys
once for 10 seconds and
three times for 5 seconds
Change function Increase presence range
Briefly press key I The light bar shows the newly
set presence range.
- Level 1 LED 1 10 %
- Level 2 LED 1-2 20 %
- Level 3 LED 1-3 40 %
- Level 4 LED 1-4 60 %
- Level 5 LED 1-5 80 %
- Level 6 LED 1-6 100 %
Change function Reduce presence range
Briefly press key II The light bar shows the newly
set presence range.
Fig. 3
Key I
Logo
Light
bar
Key II
LED I
LED II
