Operating Manual Light Control „PULSE HFMD - Vers. IV“ ENG
List of functions

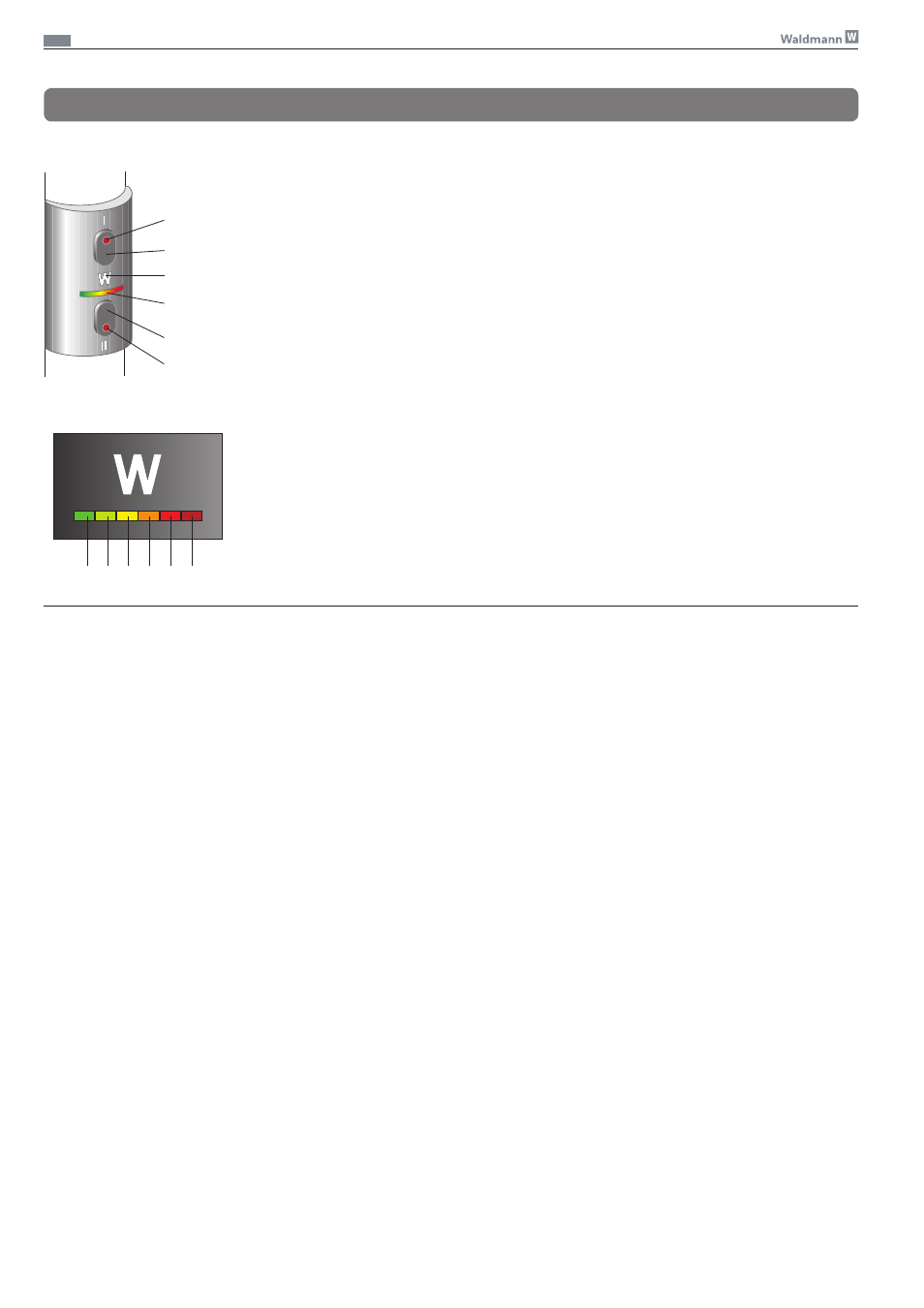

Fig. 3
Key I
Logo
Light
bar
Key II
LED I
LED II
LED 1 2 3 4 5 6
Fig. 6
The following functions can be selected:
The bold-printed values are the in-factory defaults
Level Function Light bar (fig. 6) Designation
1 Function 1.1: LED 1 (dark green): Background light ON/OFF
1 Function 1.2: LED 2 (light green) External activation ON/OFF
1 Function 1.3: LED 3 (yellow) Burn-In function ON/OFF
1 Function 1.4: LED 4 (orange) Write protection ON/OFF
1 Function 1.5: LED 5 (light red) Light control ON/OFF
1 Function 1.6: LED 6 (dark red) Presence control ON/OFF
1 Function 1.7: LED 6+5 Demo mode ON/OFF
2 Function 2.1: LED 1 (dark green) Sensitivity high ON/OFF
2 Function 2.2: LED 2 (light green) Switch-on automatic ON/OFF
2 Function 2.3: LED 3 (yellow) Dual sensors ON/OFF
2 Function 2.4: LED 4 (orange) Sensor LED ON/OFF
2 Function 2.5: LED 5 (light red) Continuous operation ON/OFF
2 Function 2.6: LED 6 (dark red) Parameter setting protection ON/OFF
2 Function 2.7: LED 6+5 Special function ON/OFF
3 Function 3.1 - 3.6: LED 1-6 Follow-up time 5, 10, 15,20, 25, 30 min
4 Function 4.1 - 4.6: LED 1-6 Range 10, 20, 40 ,60, 80, 100 %
Note: The functions written in blue are not available. Please observe the explanations of the functions on
the following pages.
